Gradall 544C-10 - Manual (Page 91)

KG 9-7

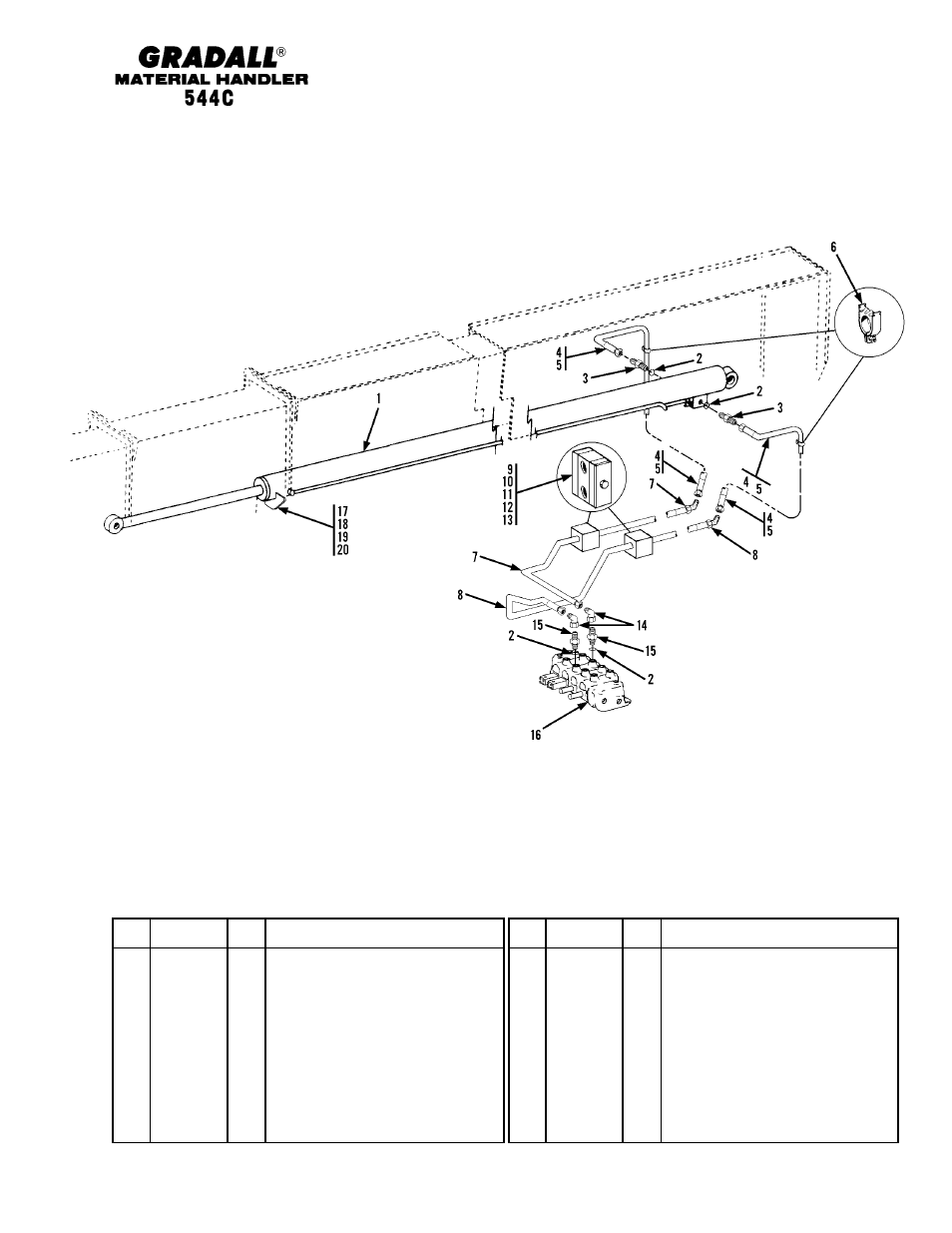

HYDRAULIC CIRCUITS
Crowd Cylinder
Starting Serial No. 0255001
Original Issue 10-96
Item Part No. Qty. Description Of Part
11 7713-3390 2 SAFETY CLIP
12 7713-3137 2 COVER PLATE
13 7713-3306 2 STACK BOLT
14 8866-2108 2 ELBOW, 90 DEGREES (swivel nut)
15 8866-2038 2 CONNECTOR (includes item 2)
16 Ref MAIN CONTROL VALVE (see page
10-14 for details)
17 9116-1197 1 CROWD CYLINDER SUPPORT
18 8820-1069 2 HEX HD CAPSCREW, 1/2-13X2,
GR5
19 8855-1013 2 LOCKWASHER, 1/2
20 8850-1008 2 HEX NUT, 1/2-13
Item Part No. Qty. Description Of Part
1 Ref CROWD CYLINDER ASSY (see
page 10-2 for details)
2 8859-1207 4 O-RING
3 8866-2022 2 CONNECTOR (includes item 2)
4 8471-8684 2 HOSE ASSY
5 9020-7464 2 HOSE SUPPORT
6 9020-7463 2 CUSHION CLAMP
7 9116-3095 1 TUBE ASSY
8 9116-3094 1 TUBE ASSY
9 8820-1023 2 HEX HD CAPSCREW, 5/16-18X1-3/4,
GR5
10 7713-3136 4 CLAMP SET
