Gradall 544C-10 - Manual (Page 77)

10
11
1
4
5
12
2
3
13
14
15
13
14
15
17
13
14
6
7
8
9
16
SVC
Item Part No. Qty. Description Of Part
9114-3118 1 ACCELERATOR PEDAL ASSY,
(includes items 2 thru 11)
9114-4196 1 CABLE ATTACH KIT, (includes items
2 thru 5)
9114-4197 1 BOOT KIT, (includes items 6 thru 9)
9114-4198 1 HEEL REST KIT, (includes items 10
and 11)
1 9112-1210 1 CABLE SUPPORT, (order
separately)
2 1 CLEVIS
3 1 PIN
1 HAIRPIN COTTER, (not shown)
4 1 LOCK PLATE
5 1 CAPSCREW
6 1 BOOT
7 1 PIN
Item Part No. Qty. Description Of Part
8 1 HAIRPIN COTTER
9 1 JAM NUT
10 1 HEEL REST
11 2 SCREW, (self tapping)
12 Ref THROTTLE CABLE, (see page 5-1
for details)
13 8820-1003 5 HEX HD CAPSCREW, 1/4-20X3/4,
GR5
14 8855-1009 5 LOCKWASHER, 1/4
15 8850-1004 2 HEX NUT, 1/4-20
16 9020-7801 1 SPRING
17 8856-1107 1 FLAT WASHER, 1/4
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
CONTROLS

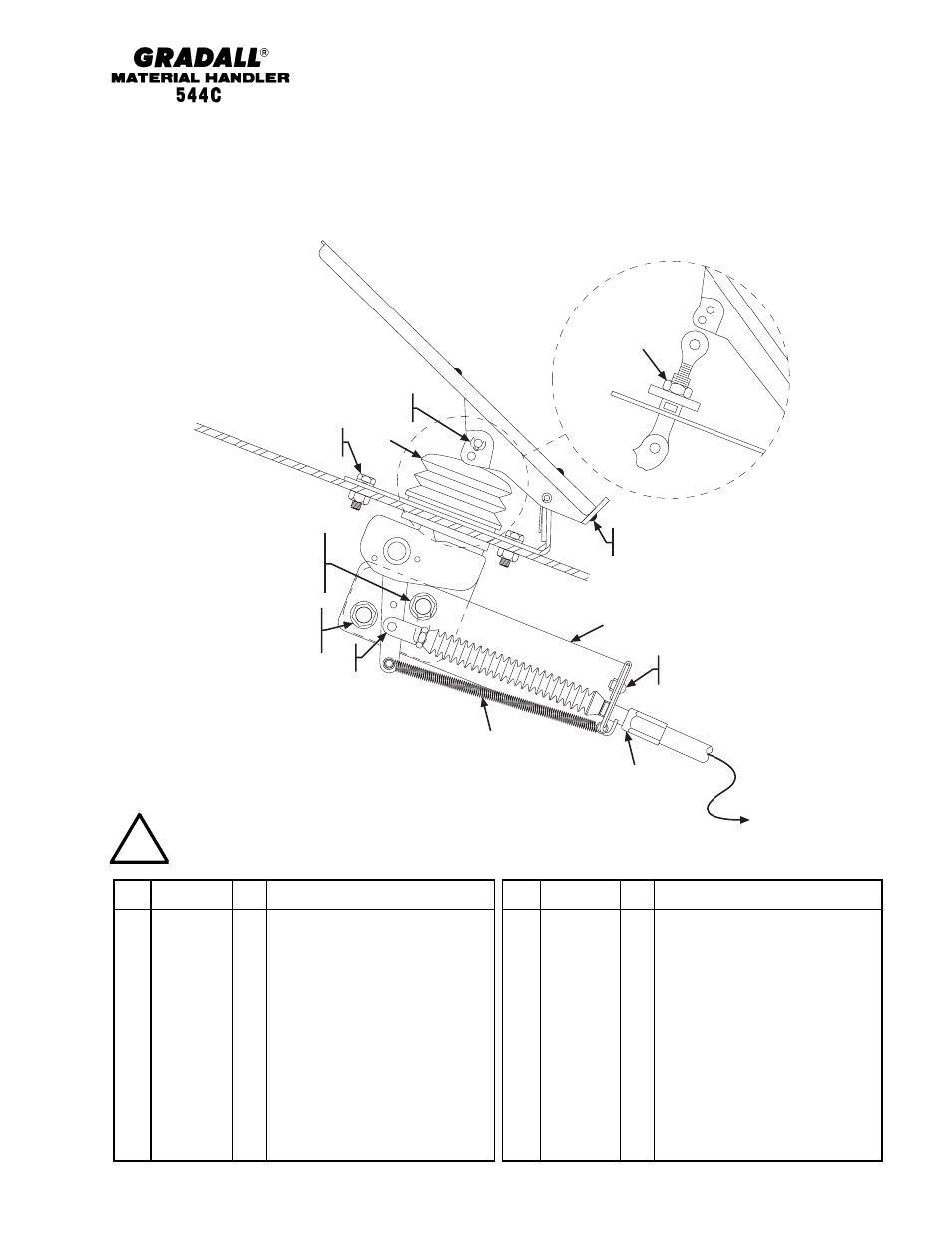

(9114-3118) Accelerator Pedal Assembly
Starting Serial No. 0255001
Original Issue 7-96
Revised 1-18-02
7-3
! THIS ASSEMBLY COMES WITH A DIFFERENT CABLE
SUPPORT, (item 1, not shown). THE CABLE SUPPORT
SHOWN IS THE PROPER REPLACEMENT AND NEEDS
TO BE ORDERED SEPARATELY.
* Revised illustration, note above parts list and quantity on items 13, 14 & 15; added
item 17; removed Cable Support Bracket Kit.
*
*
*
*
TO ENGINE
VIEW SHOWN WITH BOOT
& PIN REMOVED
