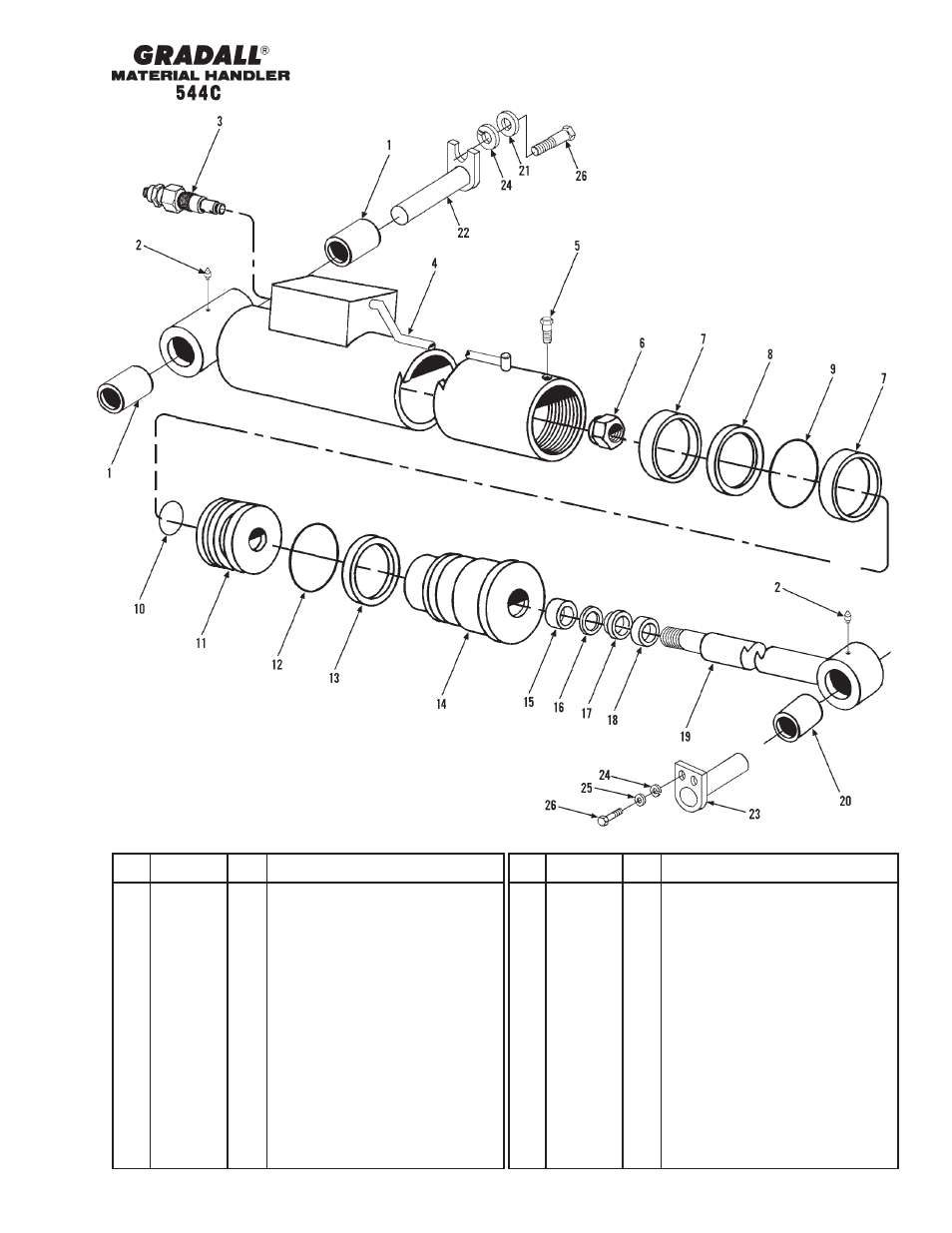

HYDRAULIC COMPONENTS
(9114-3214) Tilt Cylinder
Starting Serial No. 0255001
Original Issue 7-96
Revised 11-07-05
JD
10-1
Item
Part No.
Qty.
Description Of Part
9114-3214
1
TILT CYLINDER ASSY
(includes items 1 thru 20)
9114-4004
1
SEAL KIT (includes items 7, 8, 9,
10, 12, 13 & 15 thru 18)
1
9106-4016
2
BUSHING
2
8867-1001
2
GREASE FITTING
3
9112-3089
1
COUNTERBALANCE VALVE
9103-4276
1
COUNTERBALANCE VALVE SEAL KIT
4
9114-4023
1
CASE ASSY
5
9114-4017
1
CAPSCREW, #8X32X.375
6
9103-4153
1
LOCKNUT (torque 1300-1350 ft.lbs.)
7
2
WEAR RING
8
1
PISTON SEAL
9
1
O-RING
10
1
O-RING
11
9103-4139
1
PISTON
12
1
O-RING
Item
Part No.
Qty.
Description Of Part
13
1
BACK-UP RING
14
9114-4024
1
GLAND
15
1
WEAR RING
16
1
STEP SEAL
17
1
U-CUP
18
1
WIPER
19
9114-4025
1
ROD ASSY
20
91144479
1
BUSHING
21
8362-1283
1
SPECIAL WASHER
22
9114-6052
1
PIN WELDMENT
23
9116-6062
1
PIN WELDMENT
24
8855-1013
3
LOCKWASHER, 1/2
25
8856-1111
2
FLAT WASHER, 1/2
26
8820-1065
3
HEX HD CAPSCREW, 1/2-13X1, GR5
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
* Revised illustration and parts list.
*
*
*
*
*
*
*
*
*
