HYDRAULIC COMPONENTS

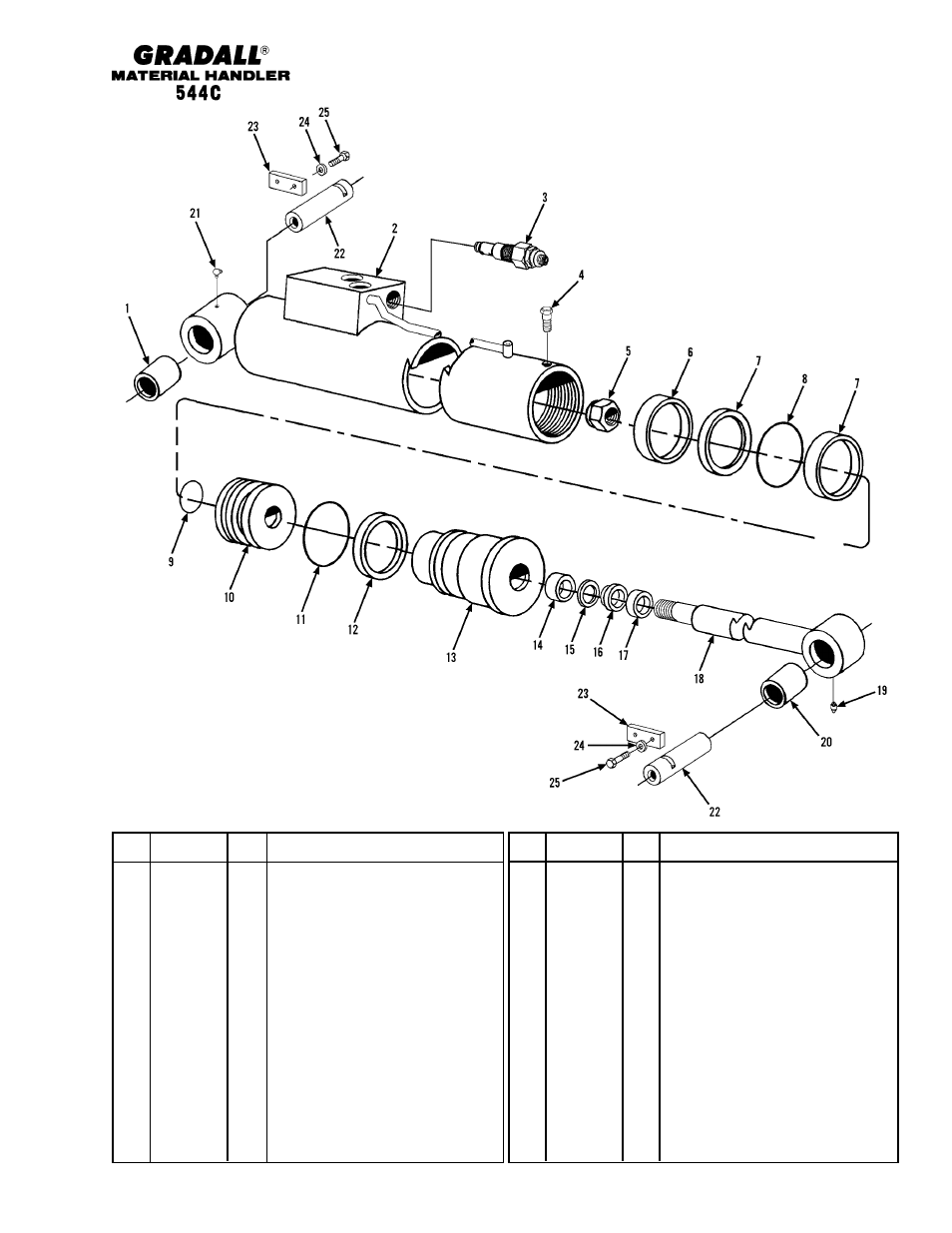

(9116-3008) Lift Cylinder
Starting Serial No. 0255001
Original Issue 7-96
Revised 1-12-99
10-3
Item Part No. Qty. Description Of Part
9116-3008 2 LIFT CYLINDER ASSY
(includes items 1 thru 21)
9116-4005 Ref SEAL KIT (includes items 6, 7, 8,
9, 11, 12, 14, 15, 16 & 17)
9116-4037 Ref LOAD CONTROL VALVE SEAL KIT
1 9116-4038 1 BUSHING
2 9116-4039 1 CASE ASSY
3 9116-4011 1 LOAD CONTROL VALVE
4 9114-4017 1 CAPSCREW
5 9103-4153 1 LOCKNUT (torque to 1475-1525 ft. lbs.)
6 2 WEAR RING
7 1 PISTON SEAL
8 1 O-RING
9 1 O-RING
10 9116-4040 1 PISTON
11 1 O-RING
12 1 BACK - UP RING
13 9116-4041 1 CYLINDER HEAD (torque to
100-400 ft.lbs.)
Item Part No. Qty. Description Of Part
14 1 WEAR RING
15 1 STEP SEAL
16 1 U-CUP
17 1 WIPER
18 9116-4042 1 SHAFT ASSY
19 9114-4128 1 GREASE FITTING
20 9116-4043 1 BUSHING
21 8867-1022 1 GREASE FITTING, 90 DEGREES
22 9116-1140 2 CYLINDER PIN
23 9108-1313 2 PIN KEEPER
24 8855-1013 4 LOCKWASHER, 1/2
25 8820-1065 4 HEX HD CAPSCREW, 1/2-13X1
NOTE: QUANTITIES SHOWN ARE
FOR ONE CYLINDER ASSY ONLY.
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE FOR
SERVICE.
JH * Changed description on seal kit, items 5 and 13.
*
*
*
