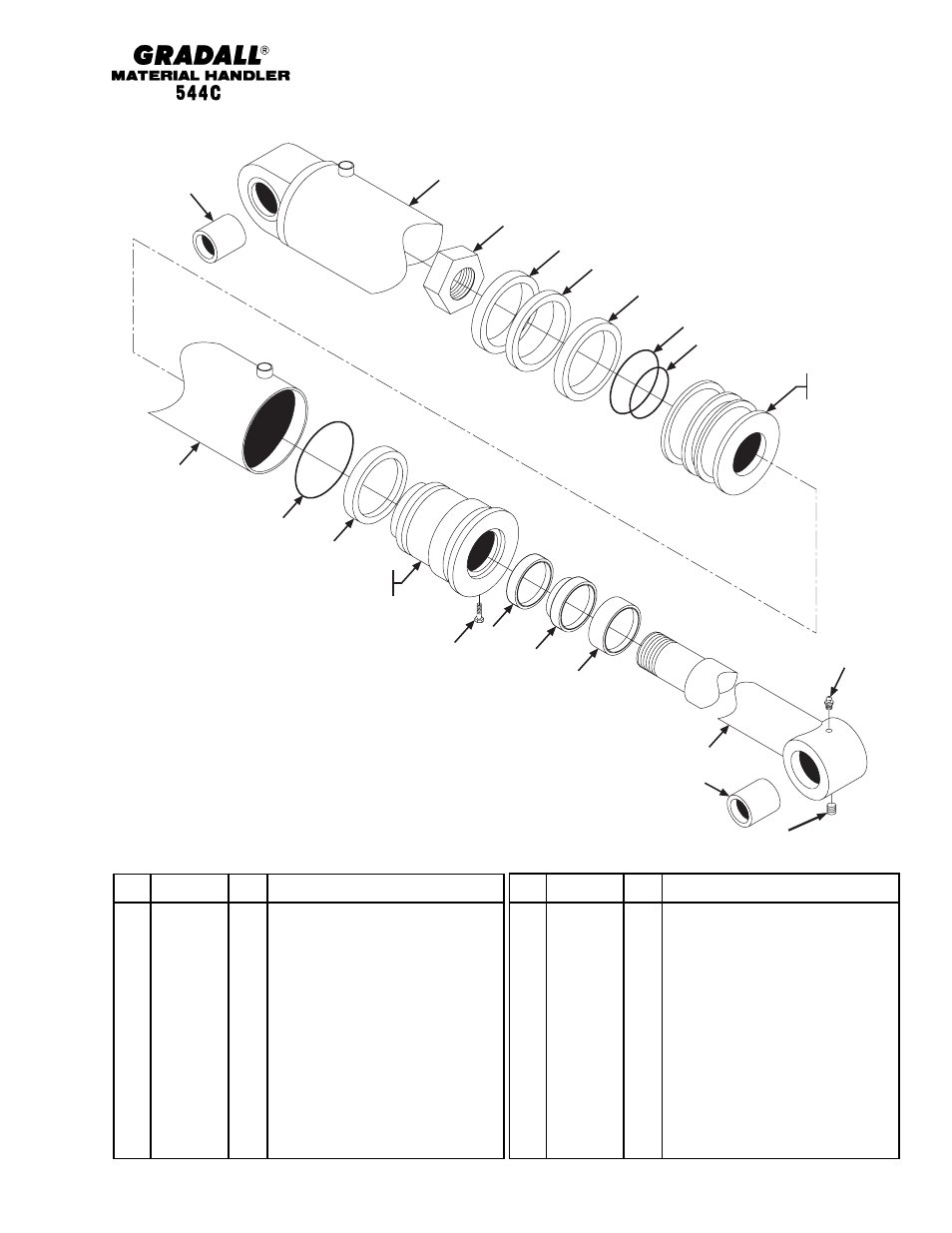

HYDRAULIC COMPONENTS
(9116-3178) Steering Cylinder
Starting Serial No. 0255001
Original Issue 7-96
Revised 9-7-05
Item Part No. Qty. Description Of Part
12 9155-4035 1 CYLINDER HEAD ASSY, (includes
items 13 thru 18)
13 9114-4040 1 CYLINDER HEAD, (torque to
100-400 ft. lbs.)
14 1 O-RING
15 1 BACK-UP RING
16 1 STEP SEAL
17 1 U-CUP
18 1 WIPER
19 9116-4027 1 ROD ASSY
20 9104-3246 1 BUSHING
21 1 HEX PLUG, 1/8-27 NPT
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
Item Part No. Qty. Description Of Part
9116-3178 2 STEERING CYLINDER, (includes
all items)
9114-4006 1 SEAL KIT, (includes items 6, 9, 10, 11 &
14 thru 18)
1 9116-4018 1 BUSHING
2 9114-4128 1 GREASE FITTING
3 9114-4037 1 CASE ASSY
4 9112-4096 1 SELF-TAPPING SCREW
5 9114-4038 1 LOCKNUT, (torque 400-425 ft.lbs.)
6 1 PISTON SEAL
7 9155-4035 1 PISTON ASSY, (includes items 8 thru
11)
8 9114-4039 1 PISTON
9 2 WEAR RING
10 1 O-RING
11 1 O-RING
10-6 LK * Revised art & parts list.
