BOOM

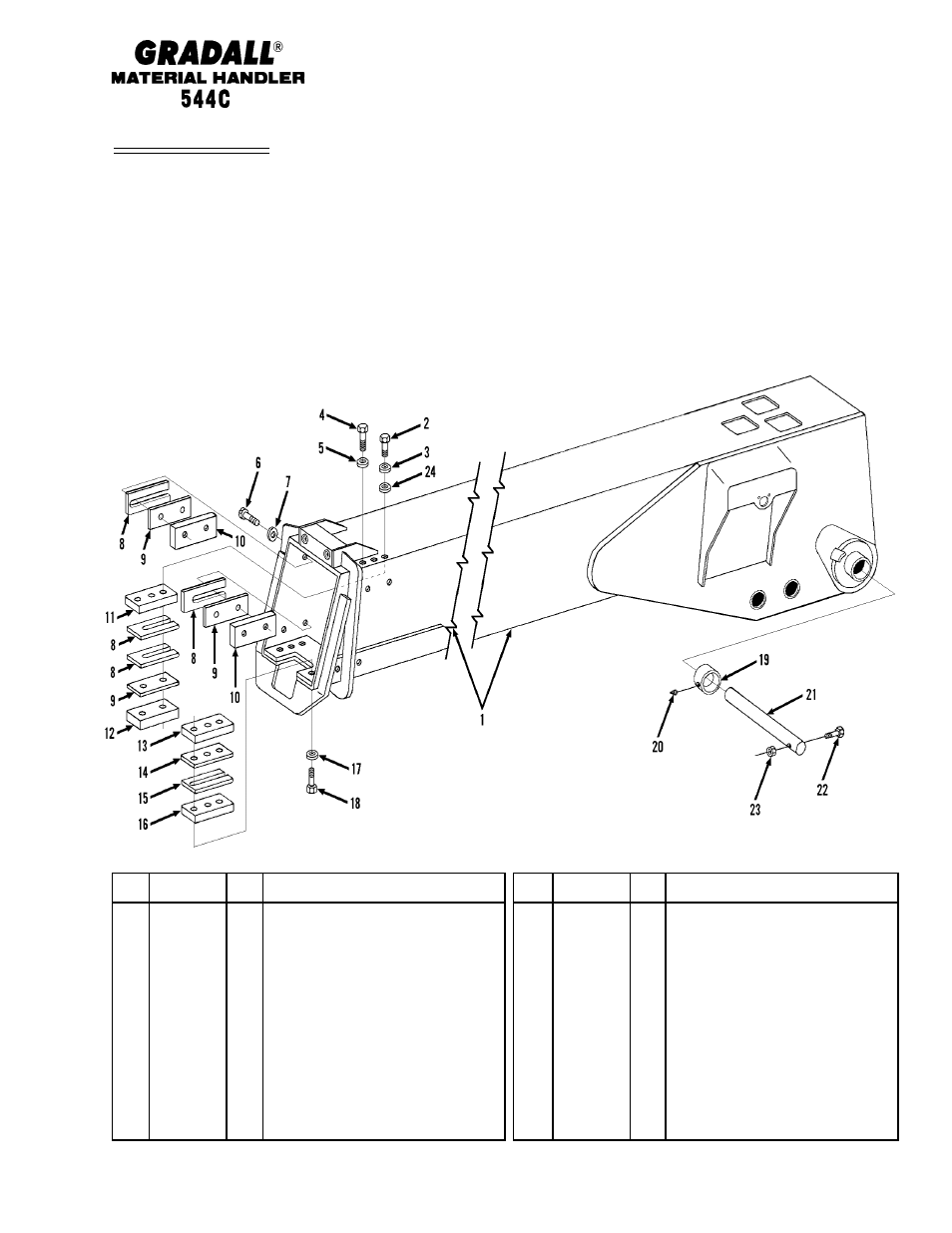

First Boom Section
Starting Serial No. 0255001
Original Issue 6-96
Revised 2-4-97
3-1
KG
Item
Part No.
Qty.
Description Of Part
1
9116-6014
1
BOOM, FIRST SECTION
2
8820-1066
2
HEX HD CAPSCREW, 1/2-13X1-1/4,
GR5
3
8855-1013
2
LOCKWASHER, 1/2
4
8820-1536
4
HEX HD CAPSCREW, 3/8-24X1-1/2,
GR5
5
9002-7470
4
HARDENED WASHER, 3/8
6
8820-1532
8
HEX HD CAPSCREW, 3/8-24X3/4,
GR5
7
8856-1109
8
FLAT WASHER, 3/8
8
9020-5870
8
SHIM
9
9103-1236
6
SHIM SPACER
10
9103-3186
4
BEARING PAD
11
9116-1171
2
BEARING PAD SUPPORT
Item
Part No.
Qty.
Description Of Part
12
9103-3189
2
BEARING PAD
13
9116-3187
2
BEARING PAD
14
9116-1183
2
SHIM SPACER
15
9116-1184
2
SHIM
16
9116-1167
2
BEARING PAD SUPPORT
17
9002-7471
6
HARDENED WASHER, 1/2
18
8820-1570
6
HEX HD CAPSCREW, 1/2-20X2-1/2,
GR5
19
9114-1301
2
BUSHING
20
8867-1022
2
LUBE FITTING, 90 DEGREES, 1/8
21
9114-1122
1
BOOM BASE PIN
22
8348-1645
1
HEX HD CAPSCREW, 5/8-11X6,
GR8
23
8852-1010
1
HEX NUT, 5/8-11
24
8856-1111
2
FLAT WASHER, 1/2
SERVICE NOTES:
1).
Add bearing pad shims & spacers as required to shim boom to within 1/16" of a tight fit.
Amounts of shims can vary at each shim point. Whenever a shim is used with a pad, a
spacer must be inserted between pad & shim. No pads shall sit directly on slotted surface
of shims.
2).
Add 1440-4595 Union 76 Mega Plex to all bearing pads and bearing slide areas.
3).
The length of pad bolts depend on the amount of shims used. Bolt cannot extend past
chamfer on bearing.
4).
Bearing pad bolt torques; 3/8" bolts = 32-37 ft.lbs., 1/2" bolts = 76-86 ft.lbs.
* Changed part numbers on items 2, 4 & 13, and added item 24.
*
*
*
*
