CHASSIS & ATTACHING PARTS

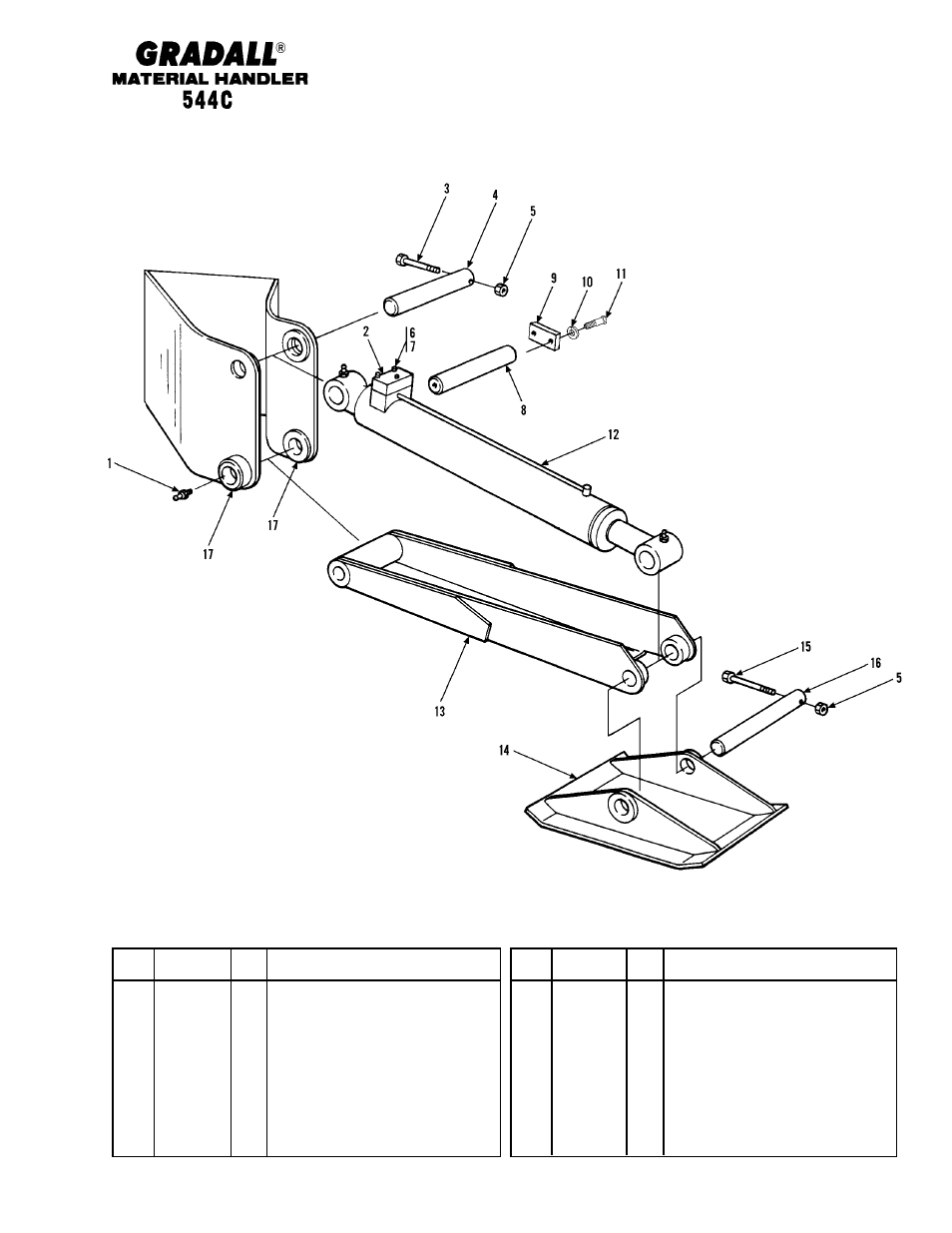

Outrigger Mounting
Starting Serial No. 0255001
Original Issue 6-96
Revised 2-4-97
2-5 PCN 960866-KG
Item Part No. Qty. Description Of Part
1 8867-1001 4 LUBE FITTING, STRAIGHT, 1/8
2 Ref DUAL P.O. CHECK VALVE (see
13-12 for details)
3 8821-1083 2 SOCKET HD CAPSCREW,
3/8-16X4-1/2
4 9116-1016 2 OUTRIGGER CYLINDER PIN
5 8852-1206 4 HEX LOCKNUT, 3/8-16
6 8820-1047 6 HEX HD CAPSCREW, 3/8-16X4,
GR5
7 8855-1011 6 LOCKWASHER, 1/2
Item Part No. Qty. Description Of Part
8 9116-1069 2 ARM PIN
9 9108-1313 2 KEEPER
10 8855-1013 4 LOCKWASHER, 3/8
11 8820-1065 4 HEX HD CAPSCREW, 1/2-13X1
12 Ref OUTRIGGER CYLINDER ASSY
(see page 10-8 for details)
13 9116-6008 2 ARM WELDMENT
14 9116-6011 2 OUTRIGGER SHOE
15 8379-3054 2 HEX HD CAPSCREW, 3/8-16X4-1/2
16 9116-1080 2 SHOE PIN
17 9116-3014 4 BUSHING
* Added item 17.
*
