Gradall 544C-10 - Manual (Page 86)

Item Part No. Qty. Description Of Part
16 8471-8406 2 HOSE ASSY
17 8866-2003 2 CONNECTOR (includes item 18)
18 8859-1202 2 O-RING
19 8471-2739 8 SPLIT FLANGE CLAMP
20 8855-1013 16 LOCKWASHER, 1/2
21 8320-1120 16 HEX HD CAPSCREW, 1/2-13X1-3/4,
GR5
22 8866-2017 1 CONNECTOR (includes item 24)
23 8471-8929 1 HOSE ASSY
24 8859-1204 3 O-RING
25 9002-7906 1 ELBOW, 90 DEGREES (includes
item 24)
26 9105-3020 2 TEST COUPLING
27 9116-3201 1 TUBE ASSY
28 8320-1135 8 HEX HD CAPSCREW, 7/16-14X1-1/2,
GR8
29 8866-2005 1 CONNECTOR (includes item 24)
30 8471-8478 1 HOSE ASSY
31 8859-1207 1 O-RING
Item Part No. Qty. Description Of Part
1 9020-5792 2 CUSHION CLAMP
2 8471-2738 8 SPLIT FLANGE CLAMP
3 9108-3418 1 TUBE ASSY
4 8320-1155 8 HEX HD CAPSCREW, 7/16-14X1-3/4,
GR8
5 8855-1012 16 LOCKWASHER, 7/16
6 9108-3106 4 O-RING
7 Ref TRACTION LOCK VALVE (see page
10-21 for details)
8 8471-8999 1 HOSE ASSY
9 9105-3450 1 ELBOW, 90 DEGREES (includes
item 31)
10 Ref FRONT DRIVE MOTOR (see page
10-16 for details)
11 9108-3339 4 O-RING
12 8471-8845 2 HOSE ASSY
13 9116-3122 1 TUBE ASSY
14 Ref HYDROSTATIC TRANSMISSION
(see page 10-18 for details)
15 9002-7906 2 ELBOW, 90 DEGREES (includes
o-ring)
8859-1204 2 O-RING

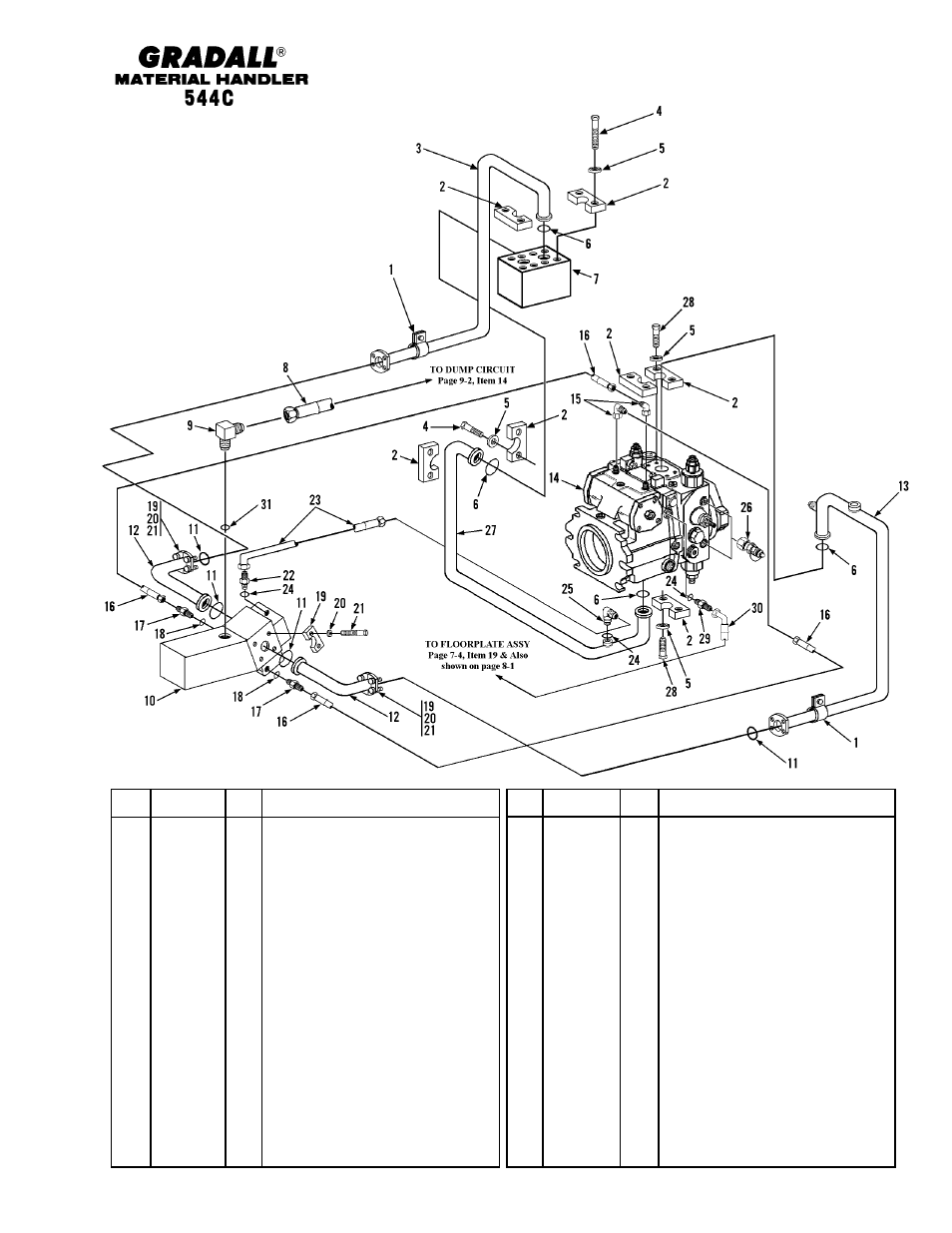

HYDRAULIC CIRCUITS
Front Drive Circuit
Starting Serial No. 0255001
Original Issue 10-96
