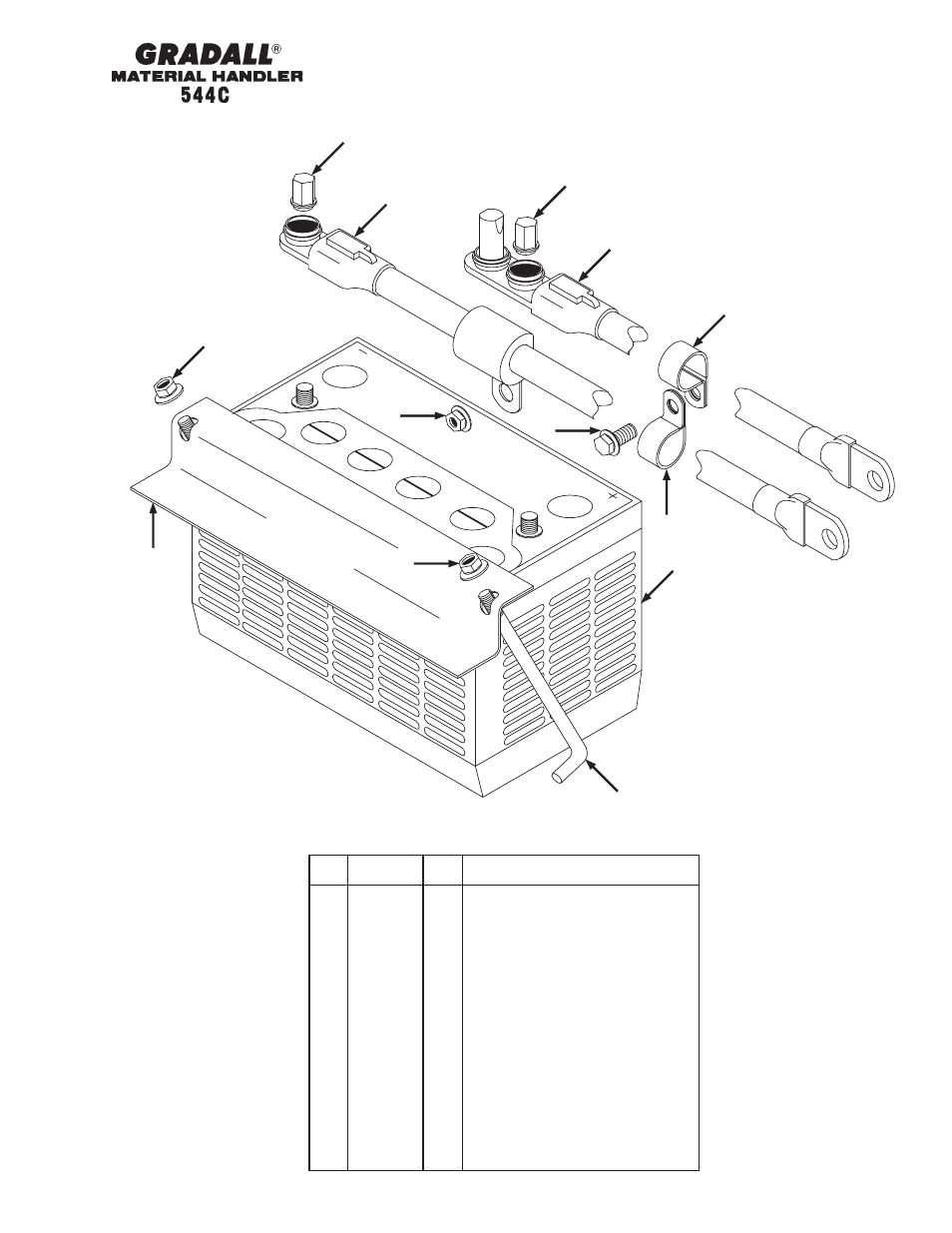

ELECTRICAL
Battery & Cables
Starting Serial No. 0255001
Original Issue 8-96
Revised 5-31-06
11-3
JD
Item Part No. Qty. Description Of Part
1 9108-3483 1 BATTERY, (12 volt, 1000 amps),
TOP STUD, 3/8-16 UNC THREAD,
BCI GROUP 31
2 7738-3567 2 BATTERY POST TERMINAL
3 9114-3124 1 NEGATIVE BATTERY CABLE
4 9114-3099 1 POSITIVE BATTERY CABLE
5 8594-1017 4 SUPPORT CLAMP
6 9108-1640 2 HOLD DOWN STUD
7 9114-1429 1 BATTERY HOLD DOWN
8 7714-3006 2 WHIZ LOCKNUT, 5/16-18
9 7714-3015 1 WHIZ LOCKNUT, 3/8-16
10 7714-3003 2 WHIZ LOCK SCREW, 5/16-18X5/8
1440-3416 AR DI-ELECTRIC GREASE (add to caps of
jump terminals on battery cables)
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE FOR
SERVICE.
* Changed description on item 1.
*
