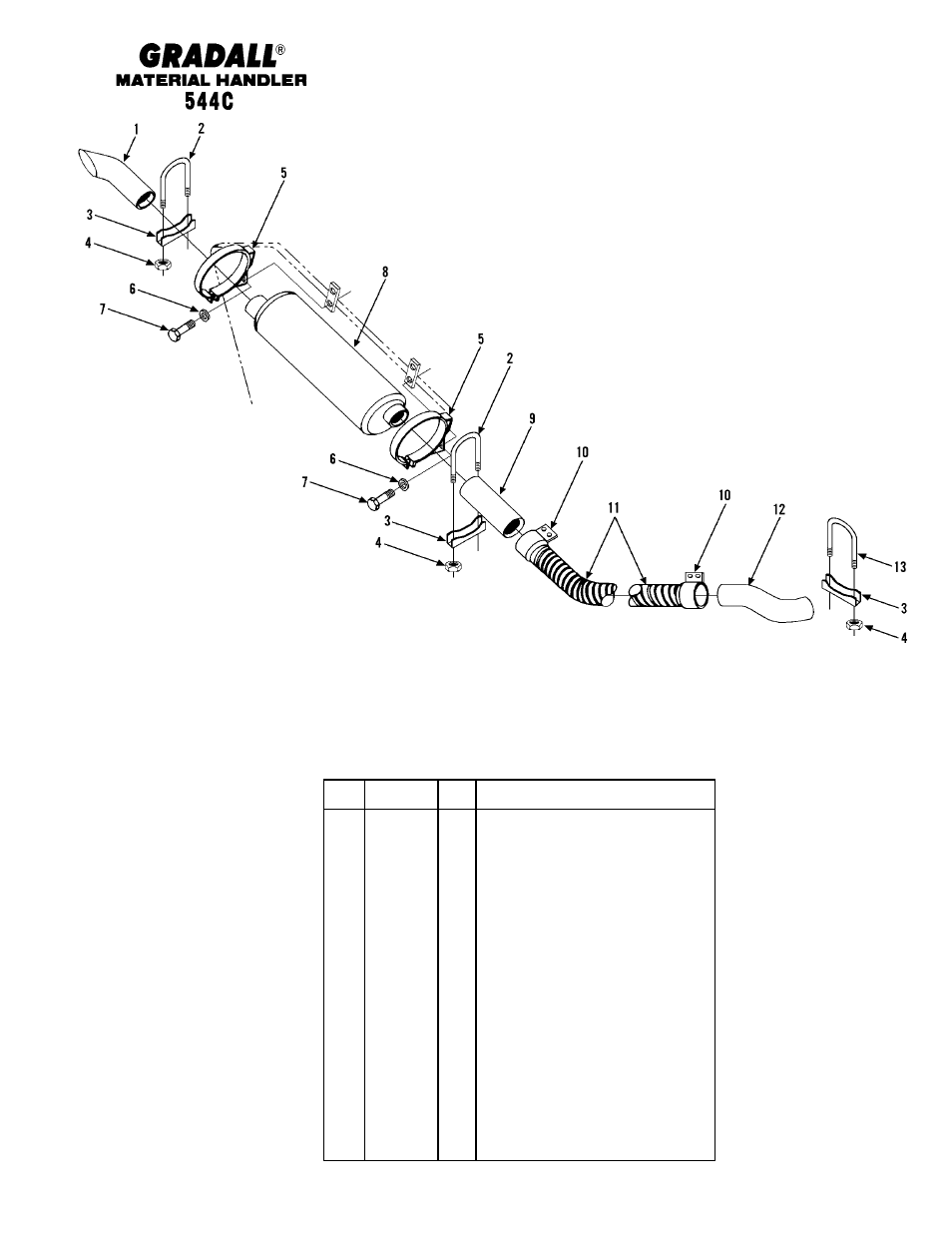

ENGINE & ATTACHING PARTS
Exhaust System
Starting Serial No. 0255001
Original Issue 7-96
Revised 10-19-99
5-7 PCN 970025-KG
Item Part No. Qty. Description Of Part
1 9116-3189 1 TAIL PIPE
2 2492-1332 2 MUFFLER CLAMP (includes
items 3 & 4)
3 3 BRIDGE
4 6 NUT
5 8027-3011 2 MUFFLER BRACKET (see note)
9116-3196 2 WHIZ-LOCK SCREW, 3/8-16
7714-3015 2 WHIZ-LOCK NUT, 3/8-16
6 8855-1010 4 LOCKWASHER, 5/16
7 8820-1016 4 HEX HD CAPSCREW, 5/16-18X1/2,
GR5
8 9116-3035 1 MUFFLER
9 9116-3234 1 EXHAUST TUBE
10 7721-3031 2 CLAMP (includes hardware)
11 9104-3150 1 FLEXIBLE TUBING
12 9114-6037 1 EXHAUST TUBE
13 8368-3175 1 MUFFLER CLAMP (includes
items 3 & 4)
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
*
* Changed part numbers on items 9 & 11.
NOTE: In order to improve the product life of item
5, we have developed a muffler mounting kit for
service replacement. Order part number 9116-5045
which includes two 9116-1290 muffler mounts and
two 2492-1332 muffler clamps. *
*
