OPTIONAL EQUIPMENT
(9116-5050) Cab Enclosure
Starting Serial No. 0255001
Original Issue 9-96
Revised 5-7-97
13-9
VIEW C-C
KG

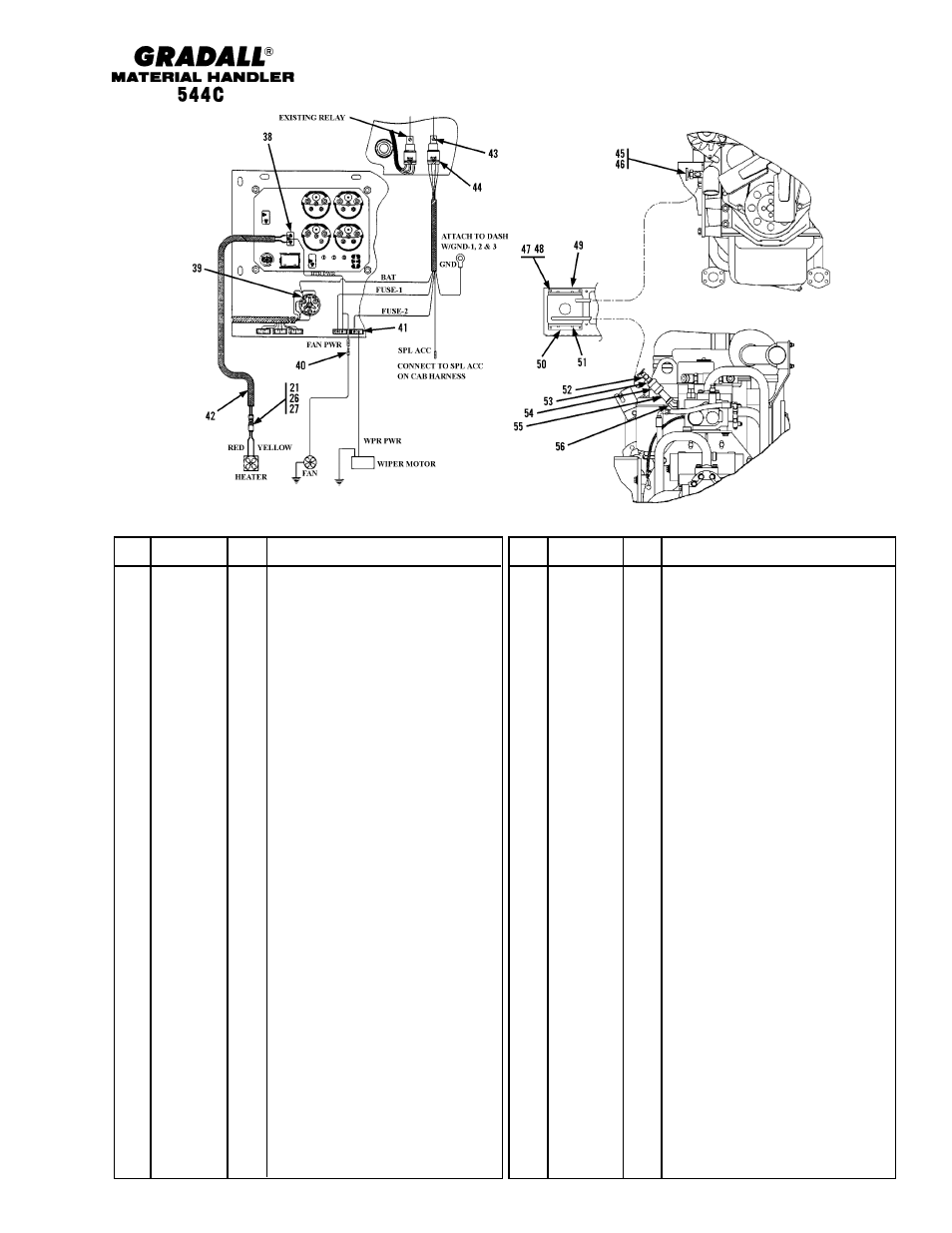

WIRING SCHEMATIC
ENGINE FRONT VIEW
ENGINE REAR VIEW
Item
Part No.
Qty.
Description Of Part
32
9114-1332
1
FRONT WINDOW FRAME
33
Ref
FRONT WINDOW (see page 2-4 for
details)
34
9020-6023
1
WIPER MOTOR
35
9002-7214
2
BUTTON GROMMET
36
9103-3464
1
WINDSHIELD WIPER ARM
37
9103-3465
1
WIPER BLADE
38
7738-3744
1
HEATER SWITCH
39
8698-3188
1
RING TERMINAL
40
8698-3193
1
MALE CONNECTOR
41
7736-3268
2
15 AMP FUSE
42
9112-3125
1
HEATER HARNESS
43
8832-1029
1
SELF-TAPPING SCREW, 10-24X3/8
44
9116-3183
1
CAB ENCLOSURE HARNESS
45
7738-3540
1
ORIFICE
46
9108-3155
1
TRUCK VALVE
47
7714-3004
4
WHIZ-LOK SCREW
48
7714-3006
4
WHIZ-LOK NUT
49
9104-3429
1
HEATER
50
9103-1521
2
HEATER MOUNTING BRACKET
51
8820-1005
4
HEX HD CAPSCREW, 1/4-20X1,
GR5
52
2464-1328
1
SHUT-OFF VALVE
53
8871-1383
1
PIPE BUSHING, 1/2X3/8
54
8871-1213
1
COUPLING, 1/2
55
8870-1070
1
PIPE NIPPLE, 1/2X2 1/2
56
8871-2034
1
STREET ELBOW, 1/2X45
57
9108-3376
1
EMERGENCY EXIT DECAL (not
shown)(located on corner post of cab
next to emergency release cord)
58
9020-3840
1
PULL HANDLE (on inside of door)
59
8832-1039
2
SELF TAPPING SCREW
60
9108-3263
1
FLUSH LOCK
61
8830-1070
4
RD.HD. MACHINE SCREW,
#8-32X1/2"
62
8852-1604
4
LOCKNUT, #8-32
63
8856-1104
4
FLAT WASHER, #8
Item
Part No.
Qty.
Description Of Part
9116-5050
1
CAB ENCLOSURE (includes all items)
1
9105-3559
3
INSULATION CAP
2
9108-3378
1
INSULATION PANEL
3
9002-9955
2
RUBBER GROMMET
4
9108-1499
1
MOUNTING ANGLE
5
9020-0680
1
DEFROSTER FAN
6
8821-1030
4
HEX HD CAPSCREW, 5/16-18X3-1/2
GR5
7
7714-3017
4
WHIZ-LOK NUT, #10-24
8
Ref
TOP WINDOW (see page 2-4 for
details)
9
9114-3190
AR
GASKA-TAPE (12.2')
10
1440-3190
AR
VULKEM CAULK
11
9002-7319
43
SELF-TAPPING SCREW, 1/4-20X1
12
Ref
DOOR SLIDING WINDOW (see
page 2-4 for details)
13
8366-1145
14'
WEATHER STRIP
14
9108-6115
2
LEFT SIDE WINDOW FRAME
15
Ref
LEFT SIDE WINDOW (see page
2-4 for details)
16
8820-1001
5
HEX HD CAPSCREW, 1/4-20X1/2,
GR5
17
9108-1545
1
DOOR HOLDER
18
7714-3016
9
ROUND HD MACHINE SCREW,
#10-32X5/8
19
7714-3017
9
HEX NUT, #10-32
20
9114-3220
78"
TRIM LOK
21
8096-3058
1
SHROUD
22
9020-6169
1
HEATER HOSE
23
8668-3193
4
HOSE CLAMP
24
9020-6170
1
HEATER HOSE
25
9108-5057
1
CAB DOOR (includes 58 thru 63)
26
8096-3069
1
MALE PIN TERMINAL
27
8096-3067
2
CABLE SEAL
29
8856-1107
5
WASHER, 1/4
30
9108-3348
10'
CHANNEL MOULDING
31
9108-3392
10'
RELEASE FILLER STRIP (locate
release cord just below wiper motor
with knot located at loose end of cord)
* Added items 58 thru 63.
*
*
*
*
*
*
