4-2 SVC
Item Part No. Qty. Description Of Part
9045-5051 1 48" CARRIAGE ASSY, (includes all
items)
1 9045-6009 1 48" CARRIAGE WELDMENT
2 8820-1105 2 HEX HD CAPSCREW, 5/8-11X4,
GR5
3 9020-0003 2 COLLAR
4 8852-1310 2 HEX LOCKNUT, 5/8-11
5 9045-1058 1 FORK PIN
6 9015-3001 1 SERIAL NUMBER PLATE
7 8834-1022 4 DRIVE SCREW, #10X3/8
Item Part No. Qty. Description Of Part
9045-5052 1 66" CARRIAGE ASSY, (includes all
items)
1 9045-6010 1 66" CARRIAGE WELDMENT
2 8820-1105 2 HEX HD CAPSCREW, 5/8-11X4,
GR5
3 9020-0003 2 COLLAR
4 8852-1310 2 HEX LOCKNUT, 5/8-11
5 9040-2478 1 FORK PIN
6 9015-3001 1 SERIAL NUMBER PLATE
7 8834-1022 4 DRIVE SCREW, #10X3/8
ATTACHMENTS

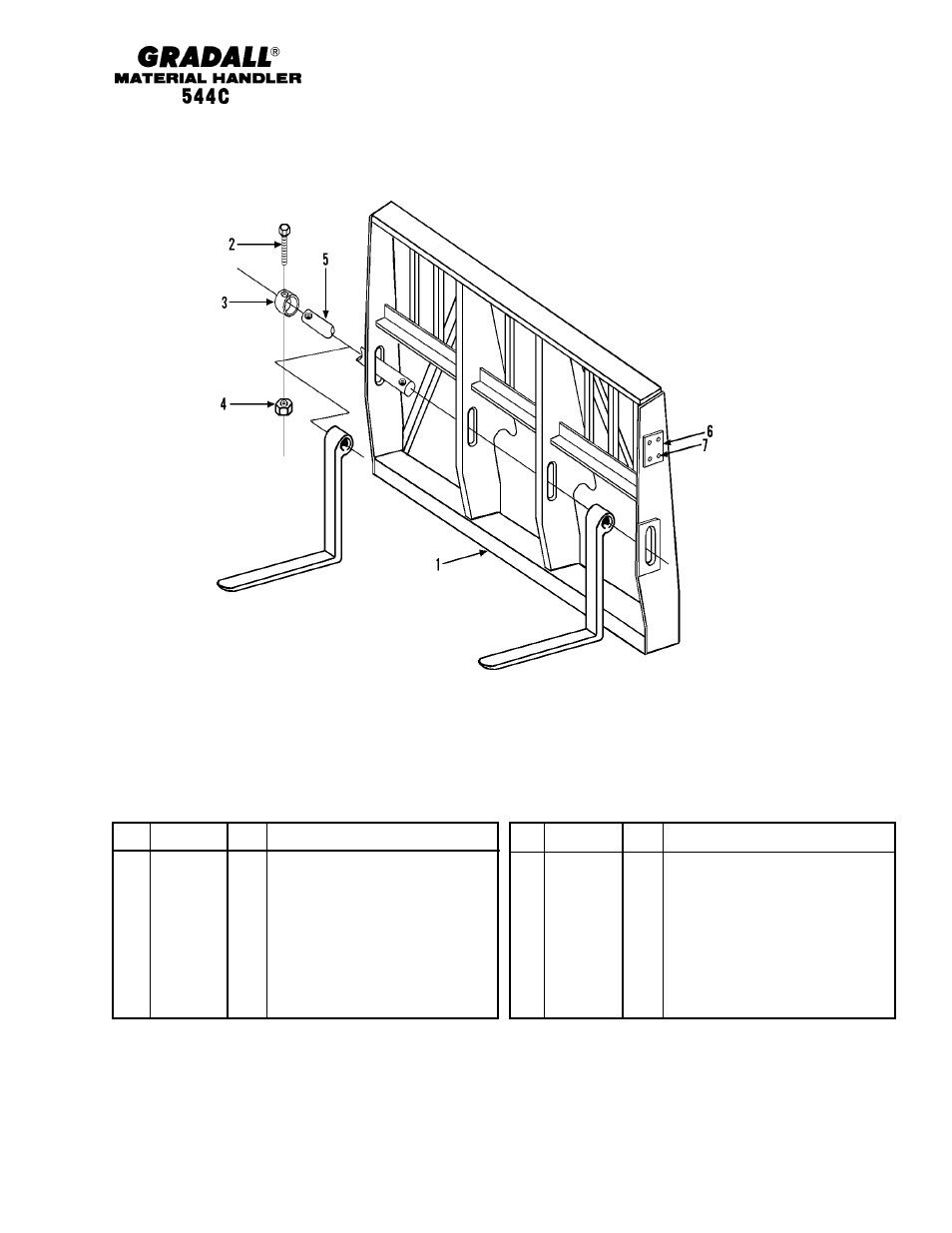

(9045-5051) & (9045-5052) Carriage Assemblies
Starting Serial No. 0255001
Original Issue 7-96
Revised 11-29-00
NOTE: MANY DIFFERENT FORK ASEMBLIES ARE
AVAILABLE FOR THE CARIAGE ASEMBLIES
USED ON THE 544C. PLEASE SEE FORK
INFORMATION PAGE, (4-14) FOR LIST OF FORKS.
* Added fork note; revised part number on item 5 of 9045-5051.
*
