HYDRAULIC CIRCUITS

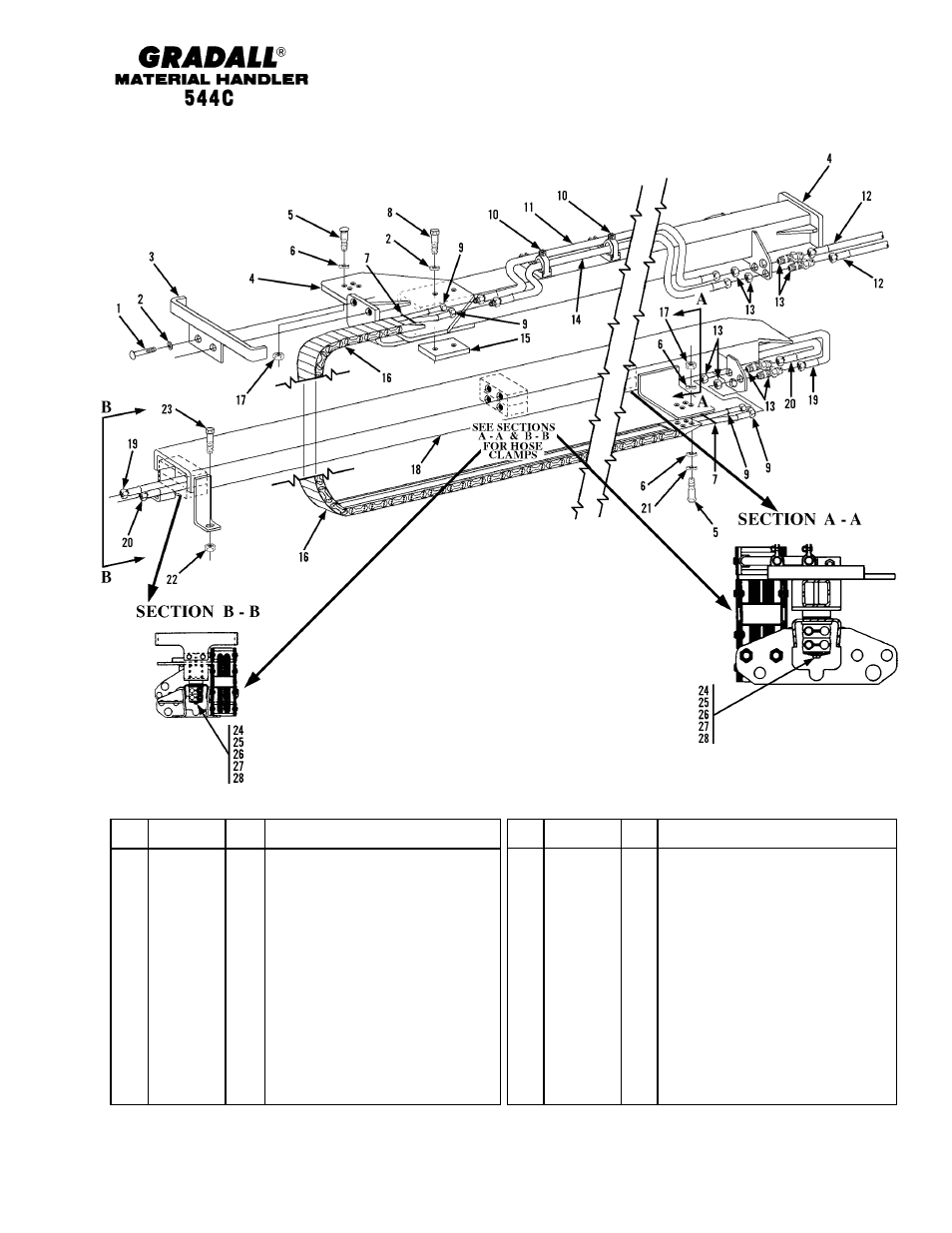

(9116-5007) Boom Hydraulics Sub-Assy
Starting Serial No. 0255001
Original Issue 10-96
Revised 10-19-99
9-5
PCN990426-KG
Item
Part No.
Qty.
Description Of Part
14
9116-3057
2
TUBE ASSY
15
9103-3187
1
BEARING PAD
16
9116-3174
1
HOSE CARRIER
17
8852-1306
8
LOCKNUT, 3/8-16
18
9116-6067
1
HYDRAULICS CARRIER
19
9116-3059
1
TUBE ASSY
20
9116-3060
1
TUBE ASSY
21
8856-1109
4
FLAT WASHER, 3/8
22
8852-1408
2
LOCKNUT, 1/2-20
23
8320-1104
2
HEX HD CAPSCREW, 1/2-20X1-1/2,
GR5
24
7713-3139
6
CLAMP SET
25
7713-3140
3
COVER PLATE
26
7713-3389
3
STACK BOLT
27
7713-3390
3
SAFETY CLIP
28
7713-3177
3
HEX HD CAPSCREW, 5/16-18X1-3/8
Item
Part No.
Qty.
Description Of Part
9116-5007
1
BOOM HYDRAULICS SUB - ASSY
(includes all items except 12, 22 & 23)
1
8820-1035
2
HEX SOCKET CAPSCREW, 3/8-16X1
2
8855-1011
4
LOCKWASHER, 3/8
3
9116-1172
1
GUIDE BRACKET
4
9116-6032
1
HYDRAULICS CARRIER
5
8826-1030
8
RND HD CAPSCREW, 3/8-16X1-1/4
6
8856-1004
12
FLAT WASHER, 3/8
7
9002-7187
4
TY-RAP
8
8820-1543
2
HEX HD CAPSCREW, 3/8-24X3-1/4,
GR5
9
8471-8959
2
HOSE ASSY
10
9108-3217
6
TUBE CLAMP
11
9116-3058
1
TUBE ASSY
12
8471-9455
2
HOSE ASSY
13
8866-1085
4
BULKHEAD FITTING
* Changed part number on item 12.
*
