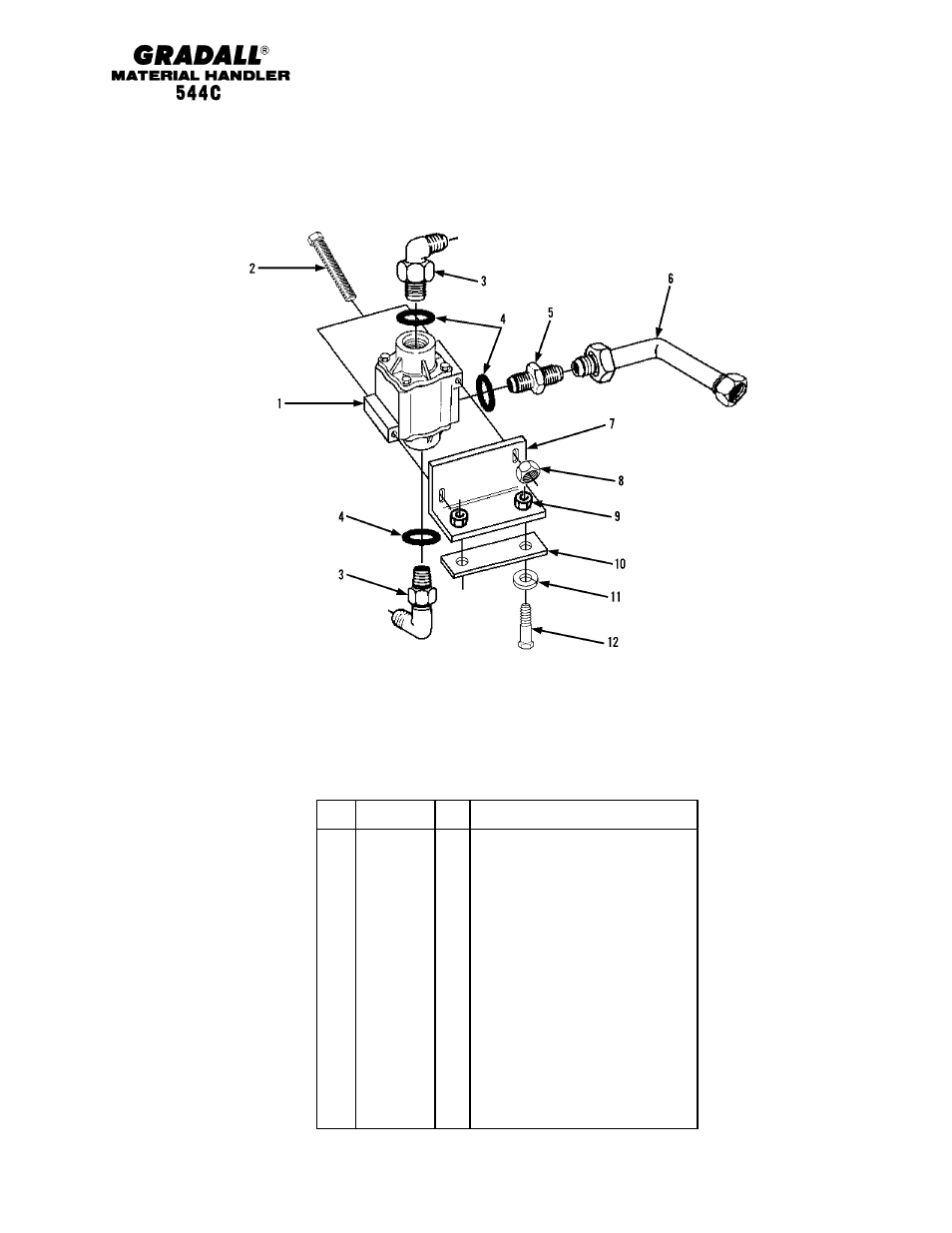

HYDRAULIC COMPONENTS
(9114-5067) Thermal Bypass Valve Assy
Starting Serial No. 0255001
Original Issue 9-96
10-12
KG
Item
Part No.
Qty.
Description Of Part
9114-5067
1
THERMAL BYPASS VALVE ASSY
(includes all items except 10,
11 & 12)
1
8097-3010
1
BYPASS VALVE
8097-4021
1
ELEMENT KIT
2
8820-1045
2
HEX HD CAPSCREW, 3/8-16X3 1/2,
GR5
3
8866-2069
2
ELBOW, 90 DEGREES (includes
item 4)
4
8859-1209
3
O-RING
5
8866-2010
2
CONNECTOR (includes item 4)
6
9114-3274
1
TUBE ASSY
7
9114-6087
1
BRACKET (includes item 9)
8
7714-3015
2
WHIZ LOK NUT
9
8897-1004
2
WELD NUT
10
9114-1432
1
RECTANGULAR WASHER
11
8855-1011
2
LOCKWASHER, 3/4
12
8820-1036
2
HEX HD CAPSCREW, 3/8-16X1 1/4,
GR5
