Gradall 544C-10 - Manual (Page 130)

ELECTRICAL
(9116-1208) Dash Panel
Starting Serial No. 0255001
Original Issue 8-96
11-2

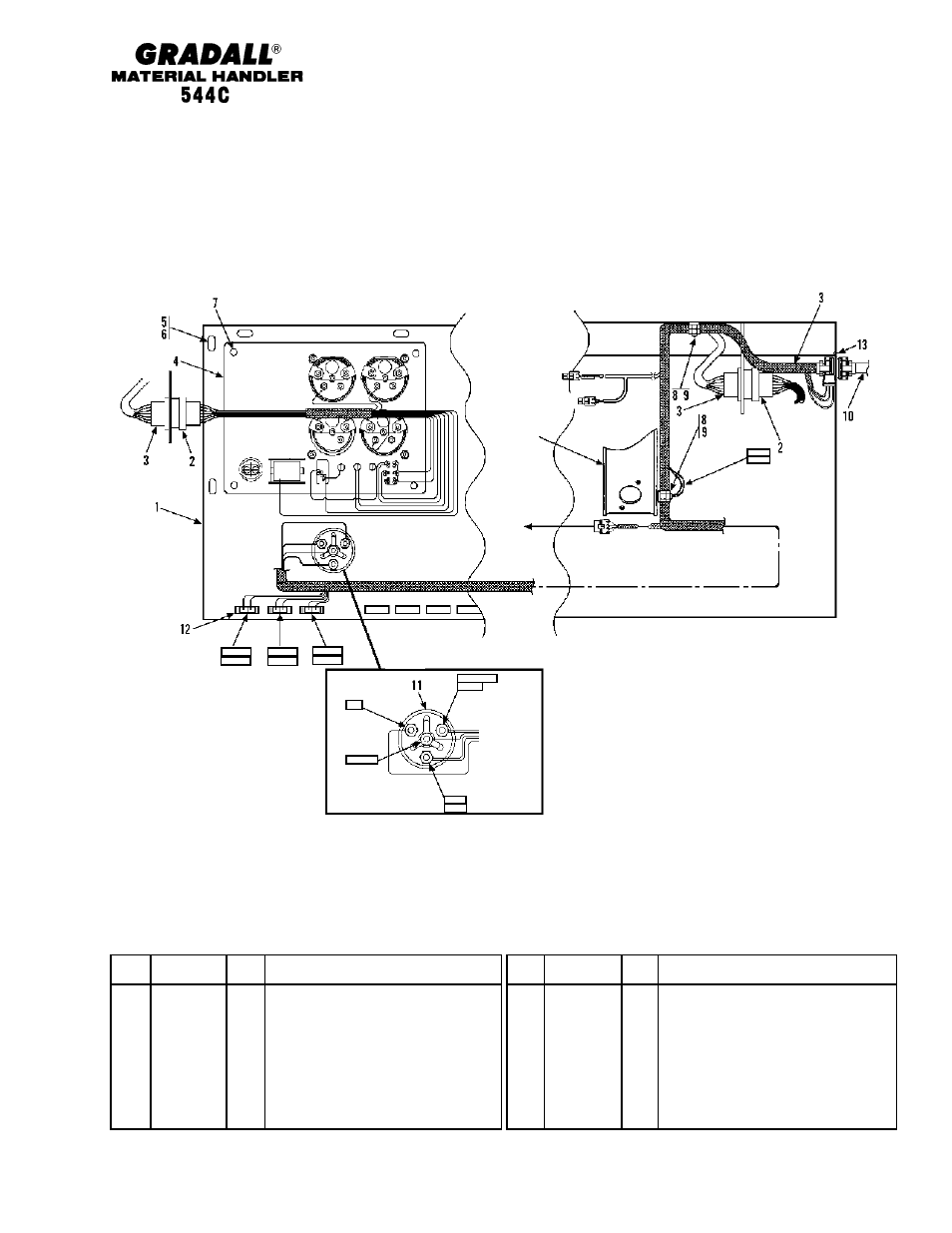

PARTIAL VIEW FROM UNDER DASH
PARTIAL VIEW FROM ABOVE DASH
WITH PANEL REMOVED FOR CLARITY
ENLARGED VIEW OF IGNITION
SWITCH CONNECTION
GND-2
GND-3
BAT
ALT EXC-A
ACC-A
IGN-C
IGN-A
ACC-A
ACC-B
IGN-A
IGN-B
IGN-C
PRK IGN
STEERING
COLUMN
MOUNT
Item Part No. Qty. Description Of Part
7 8826-1022 4 HEX SOC. BUT. HD. MACHINE
SCREW, 5/16-18X3/4
8 2486-1120 2 CLAMP
9 8850-1006 3 HEX NUT, 3/8-16
10 Ref ENGINE WIRING HARNESS
(see page 5-1 for details)
11 9103-3317 1 IGNITION SWITCH
12 7736-3268 3 15 AMP FUSE
13 8832-1029 1 SELF-TAPPING SCREW, 10-24X3/8
Item Part No. Qty. Description Of Part
1 9116-1208 1 DASH PANEL
2 Ref GAUGE PANEL WIRING HARNESS
(see page 11-1 for details)
3 9116-3020 1 DASH PANEL WIRING HARNESS
4 Ref GAUGE PANEL (see page 11-1
for details)
5 7714-3003 7 WHIZ-LOC SCREW
6 7714-3006 4 WHIZ-LOC NUT
KG
TO F-N-R
SHIFTER
START-A
TO TRACTION
LOCK FOOT
SWITCH
TO PARK BRAKE
VALVE
