HYDRAULIC COMPONENTS

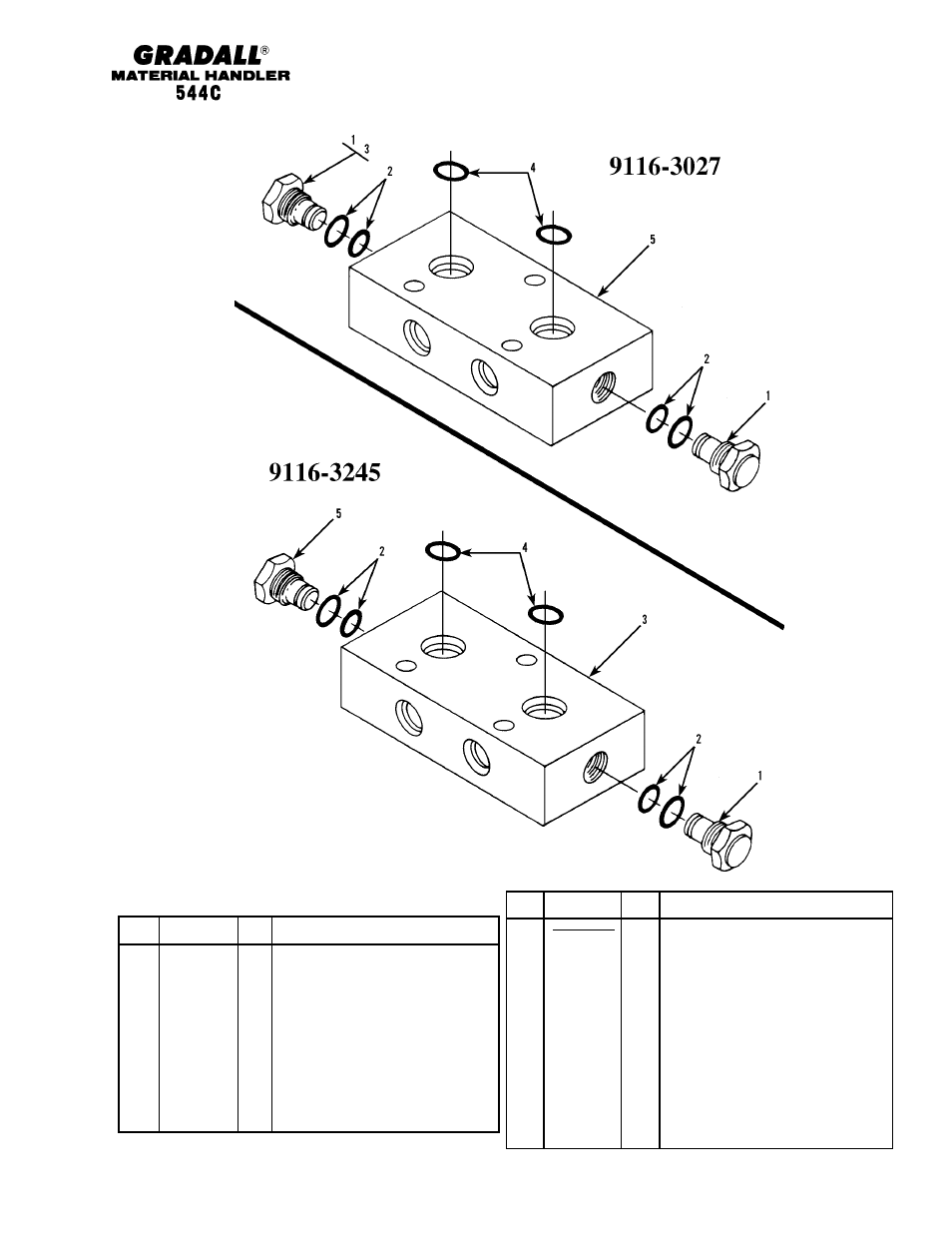

(9116-3027) Sway Cylinder Valve
(9116-3245) Outrigger Cylinder Valve
Starting S/N 0255001
Original Issue 11-96
Revised 8-21-00
10-19
DS
Item
Part No.
Qty.
Description Of Part
9116-3027
1
SWAY CYLINDER VALVE (includes
items 1, 2, 3 & 5)
1
9116-4061
2
VALVE CARTRIDGE
2
9116-4056
2
VALVE SEAL KIT
3
9116-4062
1
PISTON
4
8859-1012
2
O-RING
5
1
VALVE BODY (not sold separately,
order P/N 9116-3027)
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
Item
Part No.
Qty.
Description Of Part
9116-3026
2
OUTRIGGER CYLINDER VALVE (no
longer available - no service parts,
see superceding valve below)
9116-3245
2
OUTRIGGER CYLINDER VALVE
(includes all items)
1
9103-4107
1
THERMAL RELIEF VALVE
2
9116-4083
2
VALVE SEAL KIT
3
1
VALVE BODY (not sold separately,
order P/N 9116-3245)
4
9103-4118
2
O-RING
5
9116-4107
1
CHECK CARTRIDGE
NOTE: QUANTITIES SHOWN ARE
FOR ONE VALVE ASSY
ONLY.
*
*
* Revised items included in Outrigger Cylinder Valve (9116-3245) - revised quantity on item 1;
removed part number from item 3; added item 5; revised illustration.
*
