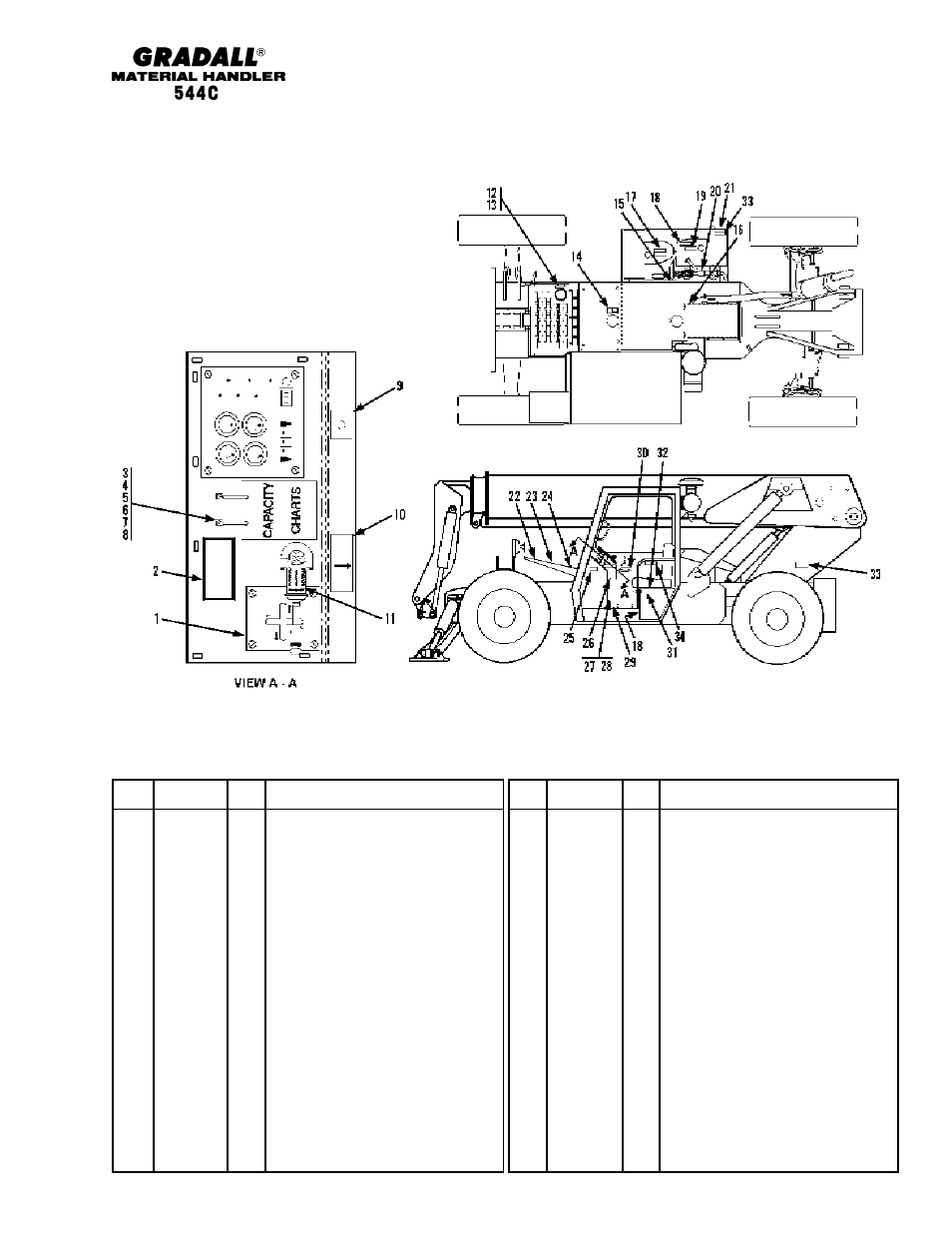

MISCELLANEOUS
Frame Decals
Starting Serial No. 0255001
Original Issue 8-96
12-1
Item
Part No.
Qty.
Description Of Part
9116-5037
1
544C-10 DECAL KIT (std. white)
(includes items 4 thru 6, 9 thru 26 &
29 thru 33 on page 12-1 and items 5,
6 & 10 thru 22 on page 12-2)
1
9108-3341
1
TILT/SWAY CONTROL PLATE
2
9116-3212
1
WARNING DECAL
3
9116-3087
2
LOAD CHART BRACKET
4
9116-3184
1
CAPACITY CHART COVER
5
9116-3074
1
LOAD CHART STABILIZERS DOWN
6
9116-3075
1
LOAD CHART STABILIZERS UP
7
8826-1017
2
BUTTON HEAD HEX SOCKET
CAPSCREW, 1/4-20X7/8
8
9116-3215
1
LOAD CHART, 180 DEGREE SWING
CARRIAGE
9
9114-3120
1
INSTRUMENT PANEL DECAL
10
9108-3314
1
TRACTION DECAL
11
9116-3028
1
F-N-R DECAL
12
9108-3494
1
BATTERY WARNING DECAL
13
9108-3497
1
JUMP START WARNING DECAL
14
9104-3210
1
COOLING SYSTEM CAUTION DECAL
15
9103-3011
1
WARNING DECAL
16
7734-3018
1
WARNING DECAL
17
9108-3510
1
FUEL WARNING DECAL
Item
Part No.
Qty.
Description Of Part
18
9108-3492
2
OIL WARNING DECAL
19
9114-3288
1
HYDRAULIC OIL PLATE
20
9114-3162
1
TEST PORT DECAL
21
9116-3130
1
OIL LEVEL DECAL
22
8360-1011
1
ACCIDENT PREVENTION DECAL
23
9104-3215
1
LIFTING PERSONNEL DECAL
24
9116-3224
1
SERVICE INSTRUCTION DECAL
25
9104-3211
1
RIDERS WARNING DECAL
26
9106-3047
1
WARNING DECAL
27
9116-3237
1
SERIAL NO. & ATTACHMENT PLATE
28
8834-1022
4
DRIVE SCREW
29
9100-3030
1
PATENT DECAL
30
9130-3047
1
BOOM OPERATION DECAL
31
7733-3027
1
MADE IN USA DECAL
32
9102-3006
1
STABILIZER DECAL
33
9104-3209
3
PINCH POINT DECAL
34
9114-3292
1
DIPSTICK DECAL
NOTE: STANDARD DECALS ARE
WHITE. OPTIONAL DECALS ARE
BLACK. ONLY STANDARD DECALS
ARE INCLUDED IN 9116-5037 DECAL
KIT.
