Gradall 544C-10 - Manual (Page 63)

Item Part No. Qty. Description Of Part
9108-5016 1 FUEL TANK ASSY, (includes items
1 thru 6, 9, 10 & 14)
1 9108-3501 1 FUEL TANK, (includes items 4 & 14)
2 9040-0654 1 FUEL LEVEL SENDER, (includes
item 3)
3 5 SCREW
4 8654-1381 1 FUEL TANK CAP, (w/chain)
5 8871-1385 1 REDUCING BUSHING, 1/2X1/8
6 8874-1805 1 HOSE NIPPLE
7 8688-3106 3 HOSE CLAMP
8 52" FUEL LINE HOSE, 7/32 I.D.
9 8871-2011 1 STREET ELBOW, 90 DEGREES, 1/8
10 8471-2746 1 HOSE NIPPLE, 90 DEGREES, 1/2X3/8

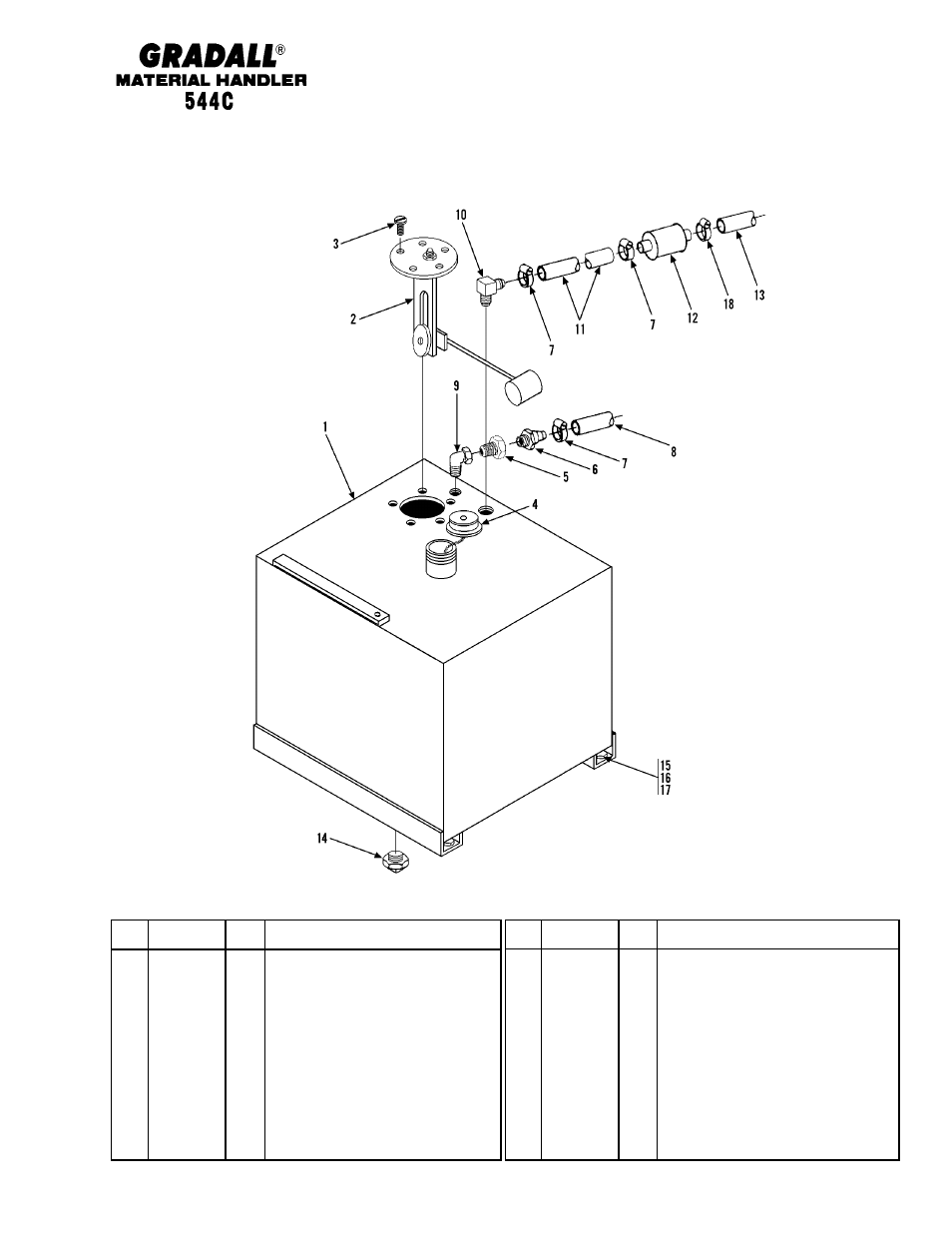

ENGINE & ATTACHING PARTS
Fuel Tank & Lines
Starting Serial No. 0255001
Original Issue 7-96
Revised 6-22-01
MPC 1867-SVC 5-3
Item Part No. Qty. Description Of Part
11 8" FUEL LINE HOSE, 3/8 I.D.
12 9108-3218 1 FUEL FILTER, (I/L)
13 41" FUEL LINE HOSE, 5/16 I.D.
14 8871-1283 1 HEX SOCKET PIPE PLUG, 1/2
15 8820-1095 4 HEX HD CAPSCREW, 5/8-11X1-1/2,
GR5
16 8856-1008 4 WASHER, 5/8
17 8855-1015 4 LOCKWASHER, 5/8
18 8348-3497 1 HOSE CLAMP
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
* Revised inclusion note on 9108-5016.
*
