HYDRAULIC COMPONENTS

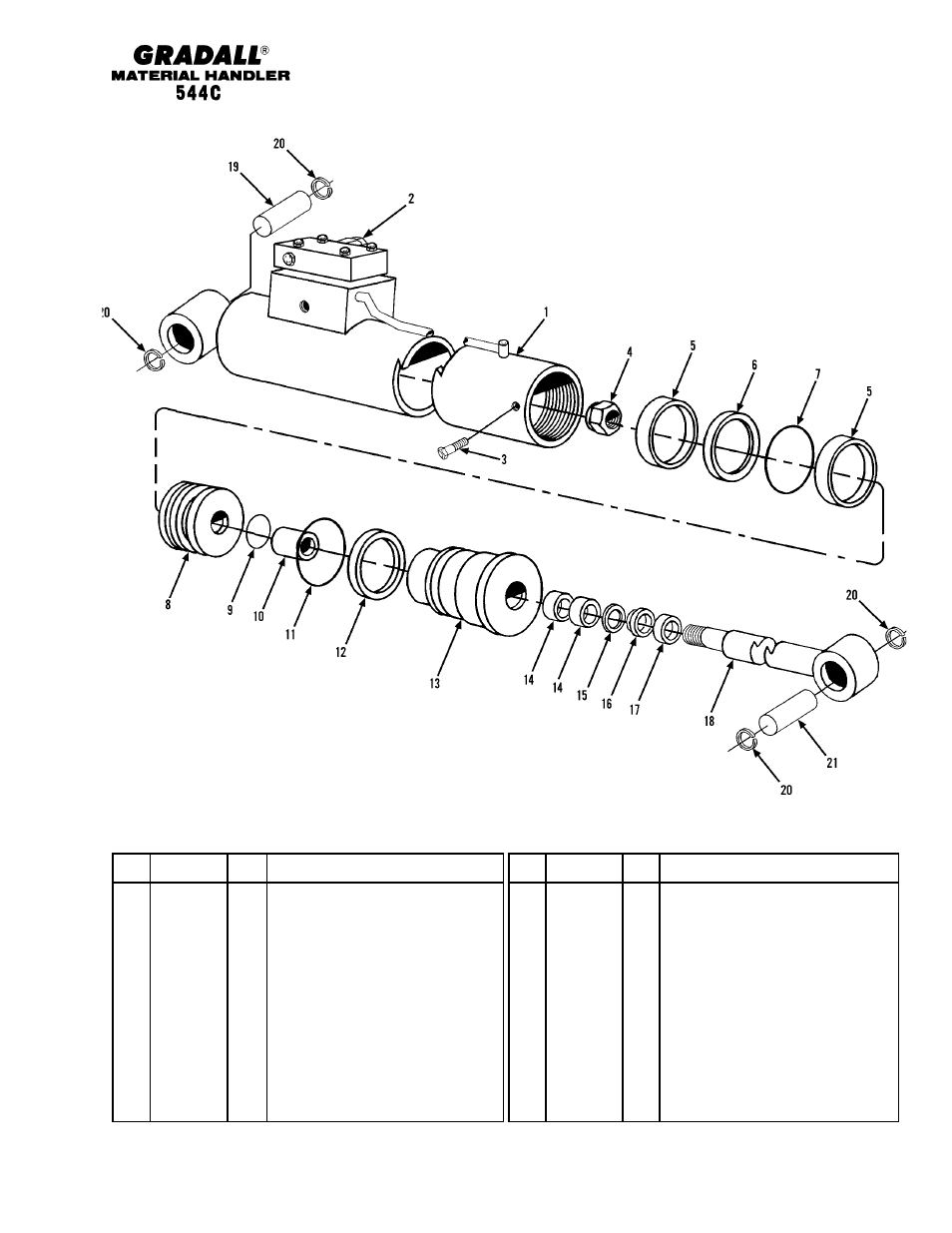

(9116-3225) Crowd Cylinder
Starting Serial No. 0255001
Original Issue 7-96
Revised 1-11-99
JH
10-2
Item
Part No.
Qty.
Description Of Part
9116-3225
1
CROWD CYLINDER ASSY (includes
items 1 thru 19)
9116-4004
Ref
SEAL KIT (includes items 5, 6, 7, 9, 11,
12, 14 thru 17)
1
9116-4013
1
CASE ASSY
2
9116-4052
1
RELIEF VALVE (4600 PSI) (includes
valve block)
3
9112-4096
1
CAPSCREW
4
9103-4153
1
LOCKNUT
5
2
WEAR RING
6
1
PISTON SEAL
7
1
O-RING
8
9116-4046
1
PISTON
9
1
O-RING
10
9116-4047
1
SPACER
Item
Part No.
Qty.
Description Of Part
11
1
O-RING
12
1
BACK-UP RING
13
9116-4016
1
CYLINDER HEAD
14
2
WEAR RING
15
1
STEP SEAL
16
1
U-CUP
17
1
WIPER
18
9116-4048
1
SHAFT ASSY
19
9116-1136
1
CYLINDER PIN
20
8858-1149
4
RETAINING RING
21
9116-1137
1
CYLINDER PIN
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE
FOR SERVICE.
* Changed description on seal kit and item 2.
*
*
