Gradall 544C-10 User Manual
Page 69
DRIVE TRAIN

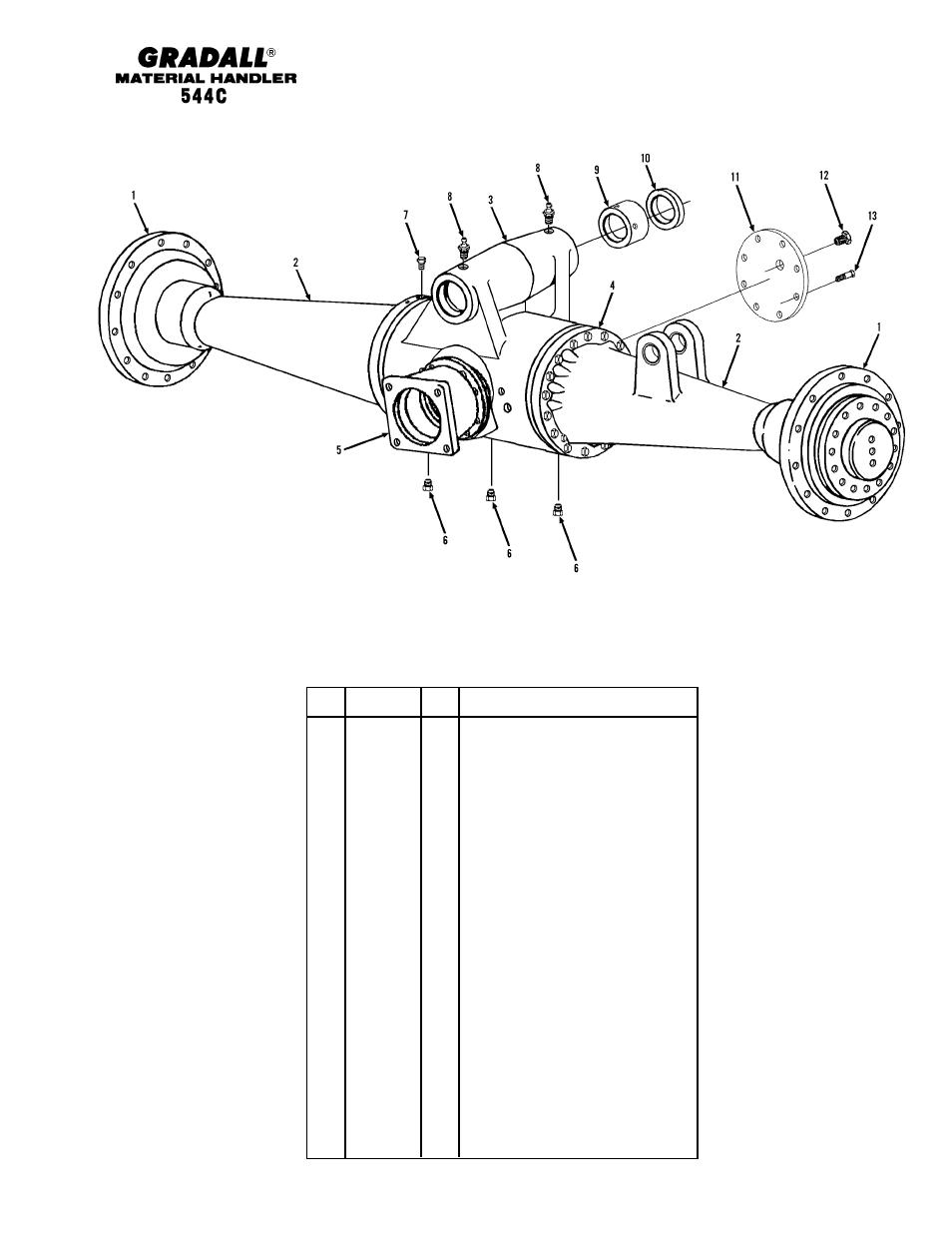

(9116-3015) Front Axle
Starting Serial No. 0255001
Original Issue 6-96
Revised 4-12-04
6-2
SERVICE NOTE: When servicing this axle, it is recommended that on machines with starting serial numbers prior to
0255070, that you:
1). Replace the old style cover plate with the new cover plate kit, p/n 9114-5130.
2). Then refill the axle with 40 pints of mobil 424 fluid instead of 33 pints.
Item
Part No.
Qty.
Description Of Part
9136-3015
1
FRONT AXLE, (includes all items on
pages 6-2, 6-3, 6-4 & 6-5)
9114-5130
1
COVER PLATE KIT, (includes new
style items 11 and 12)
1
Ref
WHEEL FLANGE ASSY, (see page
6-5 for details)
2
Ref
LEFT & RIGHT HOUSING ASSY,
(see page 6-5 for details)
3
9114-4326
1
CENTER HOUSING ASSY, (includes
item 9)
4
Ref
BRAKE ASSY, (see page 6-4 for
details)
5
Ref
CARRIER ASSY, (see page 6-3
for details)
6
9114-4327
3
DRAIN PLUG
7
9114-4328
1
VENT PLUG
8
9114-4329
2
LUBE FITTING
9
9108-4046
2
BUSHING
10
9108-4047
2
TRUNNION OIL SEAL
11
1
COVER-OLD STYLE, (starting S/N
0255001), NO LONGER AVAILABLE
9114-1511
1
COVER-NEW STYLE, (starting S/N
0255070)
12
9114-4331
1
LEVEL PLUG-OLD STYLE, (starting
S/N 055001)
8871-1284
1
LEVEL PLUG-NEW STYLE, (starting
S/N 0255070)
13
9114-4332
8
CAPSCREW, M8X1.25X16.0
* Revised items 11& 12.
LK
*
*
