Gradall 544C-10 User Manual
Page 129

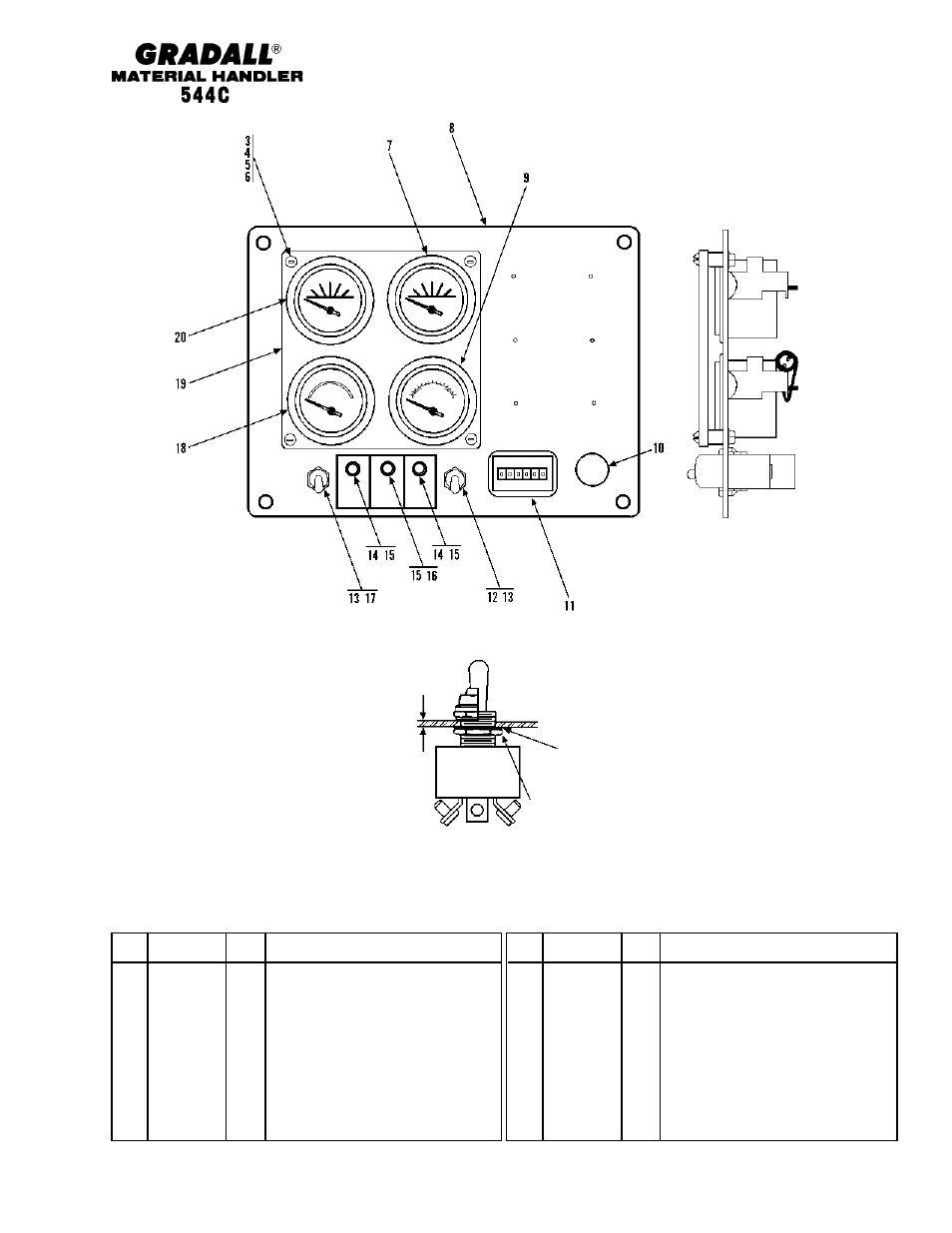

TYPICAL SWITCH
AND BOOT
INSTALLATION
With lockwasher under
panel, bushing extention
above panel must not
exceed .125" or the seal
may be cut.
3/32 Min.
1/8 Max.
Internal tooth lockwasher
(supplied with switch)
Adjust for proper height
BEACON
ON
OFF
ON
PULL
ON
HIGH
OFF
LOW
HEATER
LIGHTS
ON
OFF
AUX
LIGHT
OFF
STARTING
AID
DATCON
HOURS 1/10
HORN
PARK
BRAKE
ON
ALT
4X4
4X2
4X4
PARK
BRAKE
OFF
ON
Item
Part No.
Qty.
Description Of Part
10
2477-1004
1
BUTTON
11
9114-3130
1
HOUR METER
12
7738-3467
1
TOGGLE - SPST
13
7738-3470
2
BOOT
14
9114-3128
2
AMBER DASH LIGHT
15
9114-3129
3
TINNERMAN NUT
16
9114-3127
1
RED DASH LIGHT
17
9114-3114
1
TOGGLE - DPDT
18
9020-5687
1
WATER TEMP. GAUGE
19
9114-3221
1
GAUGE PROTECTOR
20
9020-5686
1
FUEL GAUGE
Item
Part No.
Qty.
Description Of Part
9114-5031
1
GAUGE PANEL ASSY (includes all
items)
1
9114-3137
1
PANEL WIRING HARNESS
2
9105-3419
2
TIE WRAP
3
9114-3227
4
RUBBER SPACER
4
8830-1077
4
MACHINE SCREW, #8-32X1-1/4"
5
8856-1104
4
STEEL PUNCHED WASHER
6
8850-1610
4
HEX NUT, #8-32
7
9103-3247
1
OIL PRESSURE GAUGE
8
9114-3138
1
FORMICA DASH PANEL
9
7738-3709
1
VOLTMETER
ELECTRICAL
(9114-5031) Gauge Panel Assembly
Starting Serial No. 0255001
Original Issue 8-96
