6-4
DRIVE TRAIN

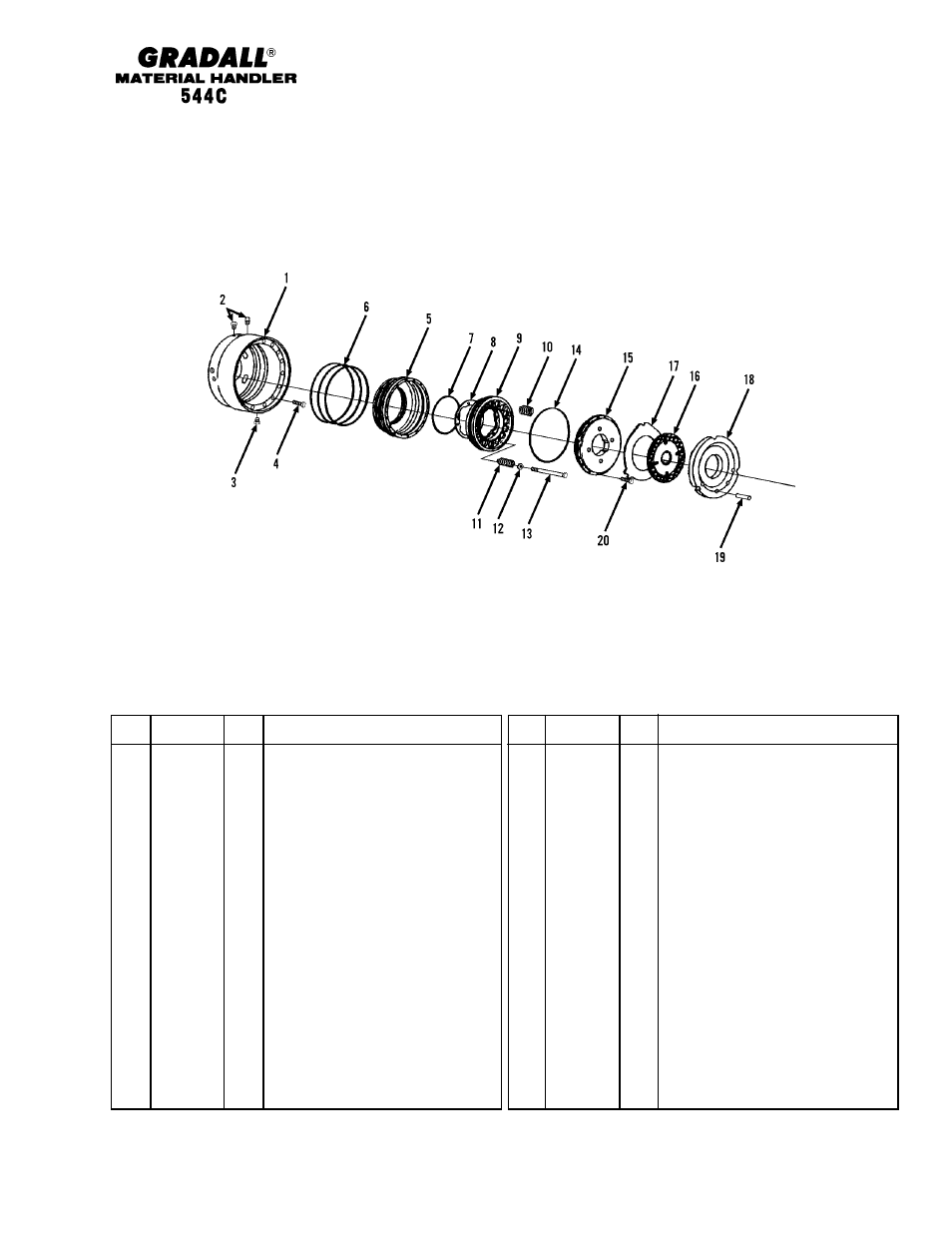

Brake Assembly
Starting Serial No. 0255001
Original Issue 6-96
Revised 5-26-05
Item Part No. Qty. Description Of Part
9114-4442 Ref BRAKE SEAL KIT, (includes items
6, 7, & 14)
, (services both sides)
9116-4081 Ref BRAKE PISTON PLATE KIT, (includes
items 15, 16, 17 & 18),
(services one
side)
9116-4082 Ref BRAKE PLATE & SEAL KIT, (includes
items 6, 7, 14, 15, 16, 17 & 18),
(services one side)
9114-4371 Ref PISTON BRAKE SHIM KIT (includes
item 8),
(services one side)
1 9114-4372 1 BRAKE HOUSING (right side only -
left side included in center housing)
2 9114-4373 4 HYDRAULIC LINE BLEEDER
3 Ref DRAIN PLUG, (see page 6-2 for
details)
4 9114-4374 3 CAPSCREW - RIGHT SIDE ONLY,
M8X1.25X40.0
5 9114-4375 2 BRAKE PISTON & PLATE ASSY,
(includes items 6, 7, 9, 10, 14, 15,
& 20)
6 9112-4110 6 O-RING
7 9112-4111 2 O-RING
Item Part No. Qty. Description Of Part
8 8 SHIM, (0.075), (included in shim kit)
8 SHIM, (0.125), (included in shim kit)
8 SHIM, (0.255), (included in shim kit)
8 SHIM, (0.555), (included in shim kit)
9 9114-4376 2 BRAKE PISTON
10 9114-4377 32 SPRING
11 9114-4378 16 SPRING
12 8688-1421 16 WASHER
13 9114-4379 16 RETURN SPRING BOLT
14 9112-4112 2 O-RING
15 2 BRAKE ACTUATING PLATE
16 10 FRICTION DISC
17 10 STATIONARY DISC
18 2 BRAKE REACTION PLATE
19 9114-4380 6 BRAKE DISC LOCKPIN
20 9114-4381 42 CAPSCREW, M6X1.0X12.0, (allen)
NOTE: QUANTITIES SHOWN ARE
FOR BOTH SIDES.
NOTE: ONLY ITEMS WITH PART
NUMBERS ARE AVAILABLE FOR
SERVICE.
JD * Revised inclusion note on kits.
*
*
*
*
