Operation:
Mode
Flow
Chart

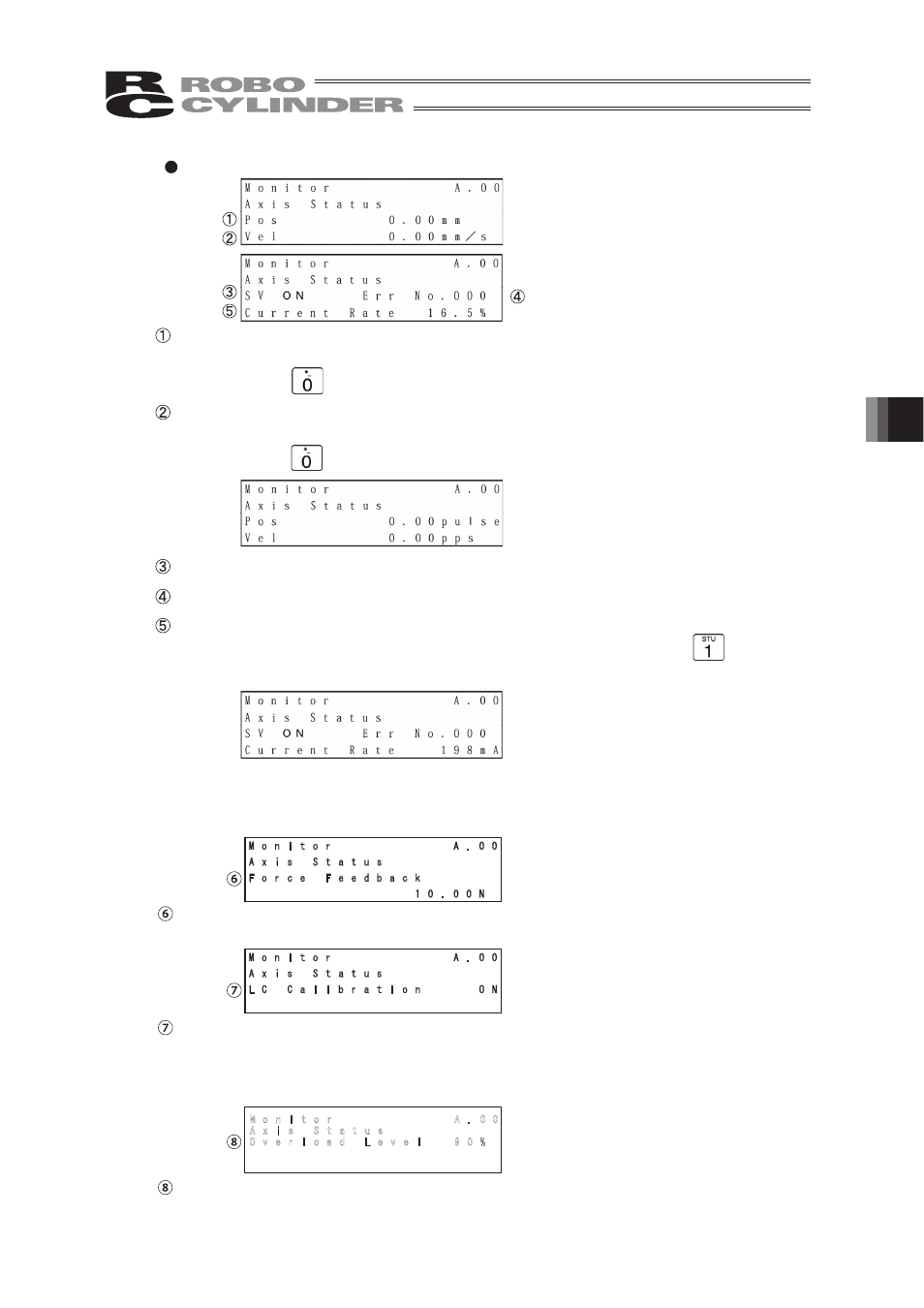

Display description
Displays the axis position in [mm].
In the case of the PCON-PL/PO, ACON-PL/PO or SCON controller (pulse train mode),
if you press the key, the display will change to the pulse display.
Displays the speed of the moving axis in [mm/sec].
In the case of the PCON-PL/PO, ACON-PL/PO or SCON controller (pulse train mode),
if you press the key, the display will change to the pps display.
Displays the servo ON/OFF status of the axis.
Displays the error No. when an error occurs.
Displays the percent rated current in [%].
In the case of the PCON, ACON, SCON, ERC2 controller, if you press the key,
the current value will be displayed in [mA].
[Display shown only for SCON-CA]
In SCON-CA Controller, the status of Force Feedback Data and Calibration can be confirmed
if a loadcell (option) is used.
Force Feedback Data
This shows the force that is given as a feedback from the loadcell.
Loadcell Calibration
This shows the status of loadcell calibration.
ON : Calibration complete
OFF: Calibration incomplete
This shows the ratio of the current estimated motor temperature to the motor temperature
to generate the overload alarm (0E0).
