72
6.
Operation:
Mode
Flow
Chart

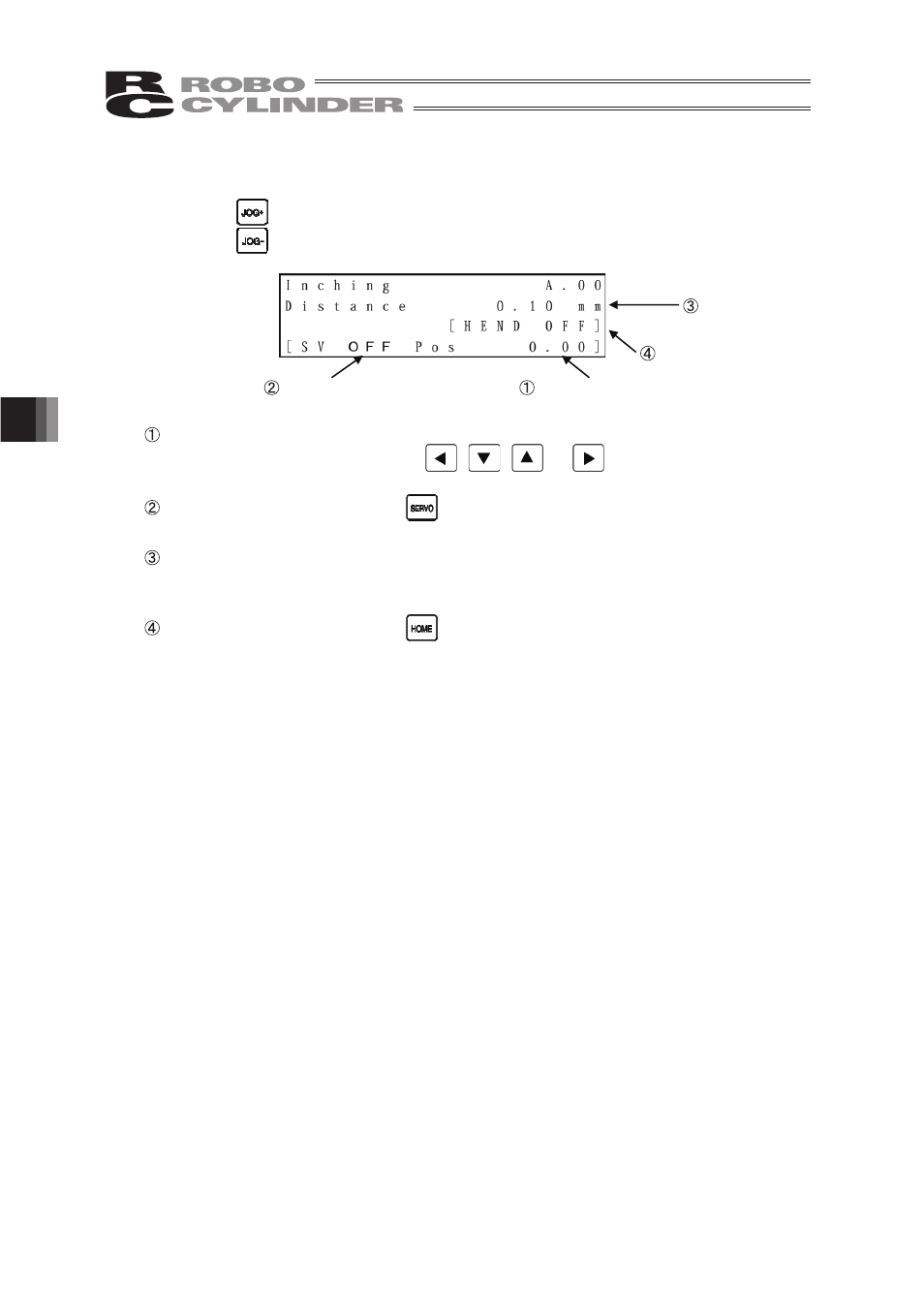

(2) Inching operation
The Inching screen will be displayed.
If you press the key, the cursor will move in the positive direction of the displayed coordinates.
If you press the key, the cursor will move in the negative direction of the displayed coordinates.
Current position: Indicates the current position. The unit can be changed between mm
and pulse with the , , or key.
Servo ON/OFF: If you press the key, the servo ON/OFF status will be reversed.
Inching distance: Input the desired inching distance with the ten keys and press the Return
key. The input range is from 0.01mm to 1.00mm set for the parameter.
Homing: If you press the key, homing will be performed.
Current position
Homing
Servo ON/OFF
Inching
distance
