Operation:
Mode
Flow
Chart
5) Inching
(Method: Incremental movement using arrow key, matching to the desired position and
teaching that position into the position table)
If you press the JOG- and JOG+ key once, the actuator will move by a specified pitch.
If you continue pressing the arrow key, the actuator will move by jogging at 1 mm/sec.
The speed will increase every one second. Finer movement than jogging is possible.
When inching movement is performed first after power-on, it is required to perform home return
operation in advance. (Refer to page 40.) (Increment specification)
Caution: Operating instructions are described on the screens of PCON, ACON, SCON, ERC2
Example: 2 point continuous loop Point A --> Point B, speed 300mm/sec

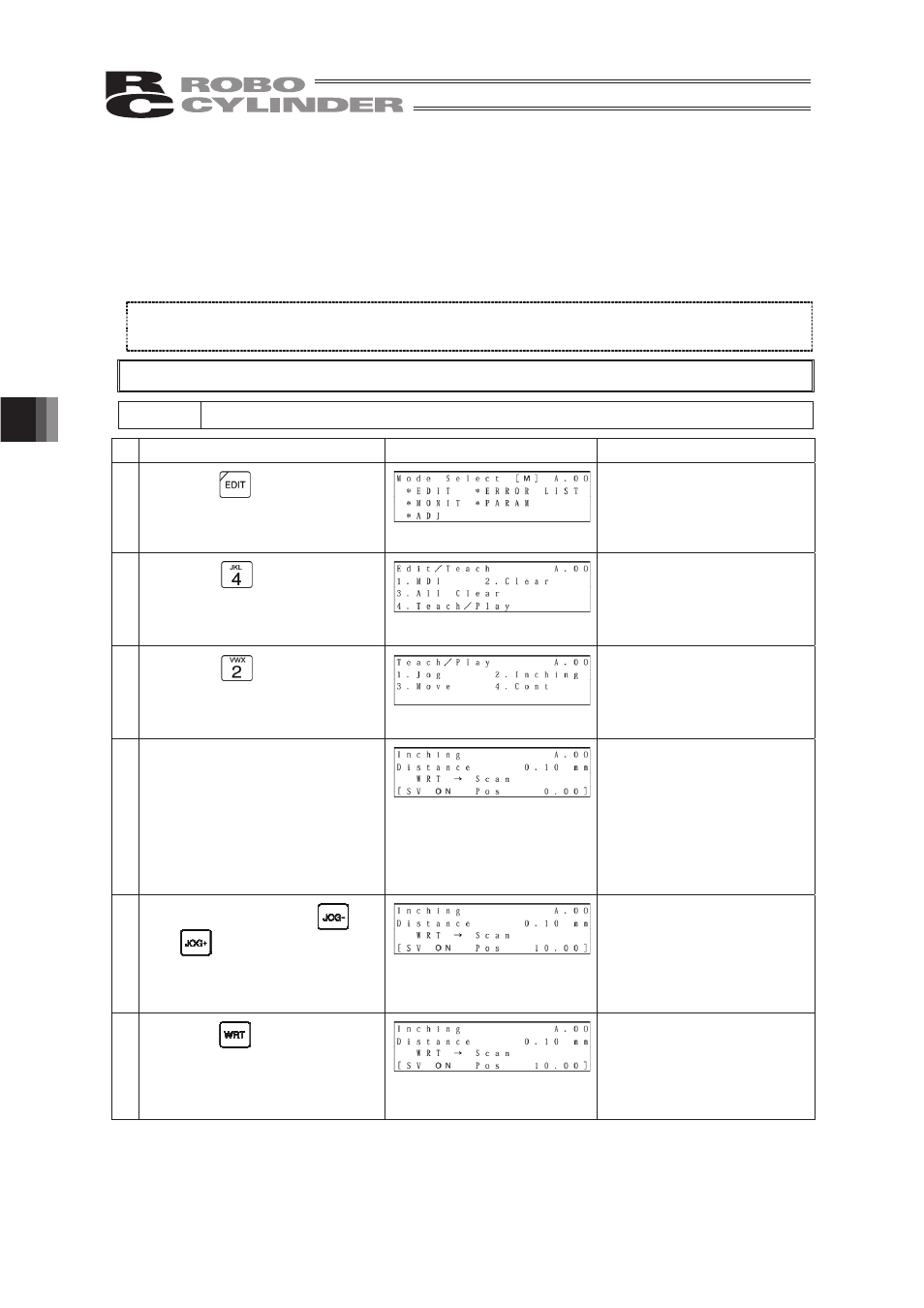

Operation Screen Reference
1.
Press the key.
2.
Press the key to select
“Teach/Play.”
3.
Press the key to select
“Inching.”
4.
Input the desired inching distance
with the ten keys and press the
Return key.
The input range is from 0.01 mm
to 1.00 mm.
5.
Move the slider with the
and key and match to the
desired position.
6.
Press the key.
