(3) Vel: Input the speed at which the actuator will be moved, in [mm/sec].
The initial value will depend on the actuator type.
(4) Acc/Dcc: Input the acceleration/deceleration at which the actuator will be moved, in [G].
Basically, use acceleration/deceleration within the catalog rated value range.
The input range allows larger value input than the catalog rated values, on the
assumption that the tact time will be reduced if the transfer mass is VLJQL¿FDQWO\
smaller than the rated value.
Make the numeric value smaller if transfer work vibrates and causes trouble
during acceleration/deceleration.
The acceleration will become sudden if the numeric value is made larger and it will
become gradual if the numeric value is made smaller.
Caution: Enter appropriate values for Vel and Acc/Dec in such a way as to prevent excessive
impact or vibration from being applied to the actuator in consideration of
the installation conditions and the shape of transferred work by referring to the
“List of Actuator 6SHFL¿FDWLRQV´ in the Appendix.
Increasing such values largely relates to the transfer mass and the actuator
characteristics vary depending on the model, consult IAI regarding the
input-limiting values.
(5) Push: - Select the positioning operation or push operation.
The default value is ³´
0: Normal positioning operation
Other than 0: Indicates the current-limiting value and indicates the push operation.
Caution: In the case of PCON, ACON, SCON or ERC2 there are cases where the
input value to ³3XVK´ may be rounded off to a multiple of the minimum resolution
of the controller (during data acquisition from the controller).

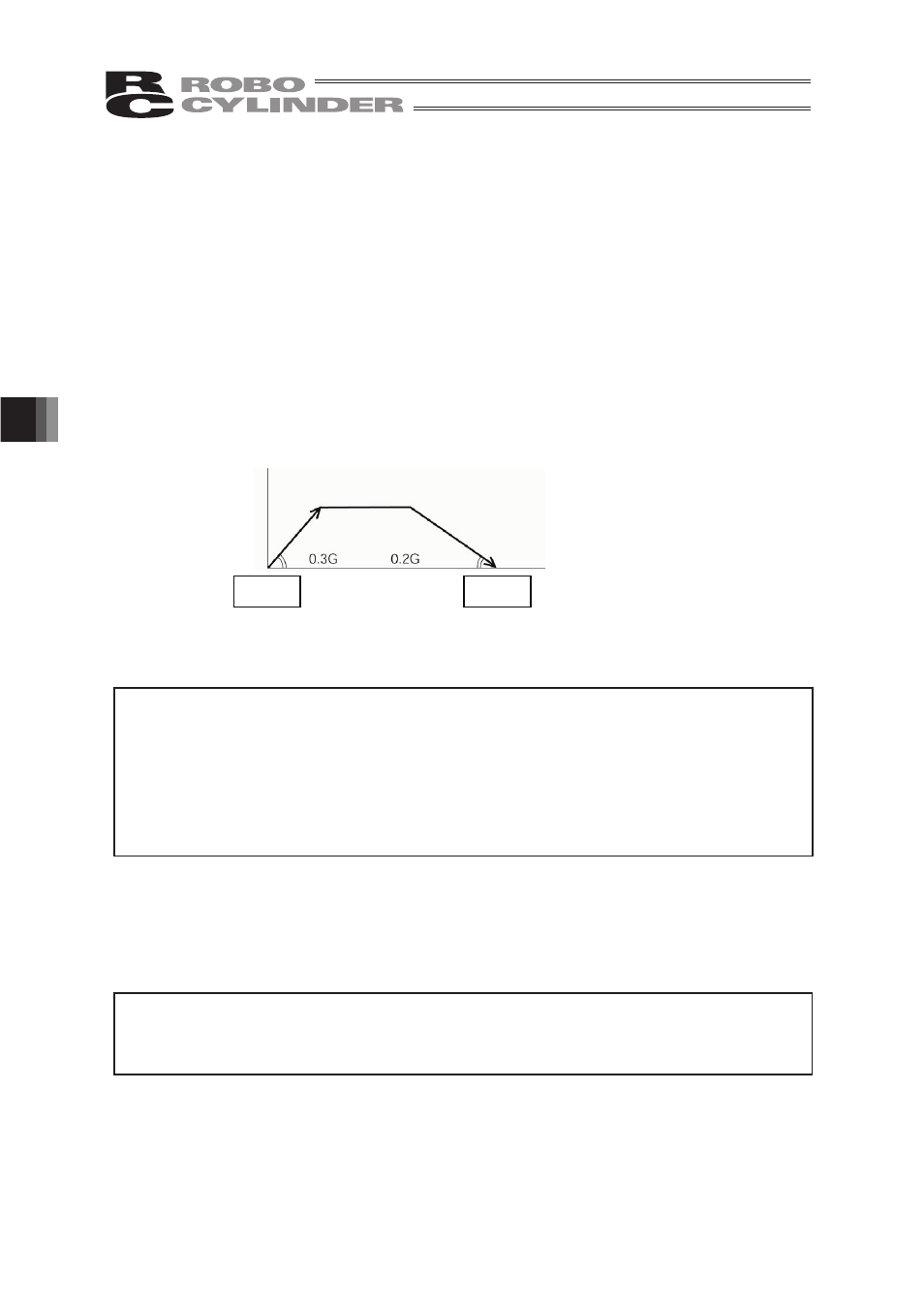

Acceleration
Speed
Start
position
Deceleration
Target
position
Time
(Note) For SCON-CA, PCON-CA and ERC3, an alarm will be displayed if the set
value is lower than the minimum velocity.
(Note) For SCON-CA, PCON-CA and ERC3, an alarm will be displayed if the set
value exceeds the rated acceleration/deceleration.
