6.
Operation:
Mode
Flow
Chart
6.5.8
Pulse Train (PCON-PL/PO, ACON-PL/PO, SCON: Pulse Train Mode)
Based Jogging

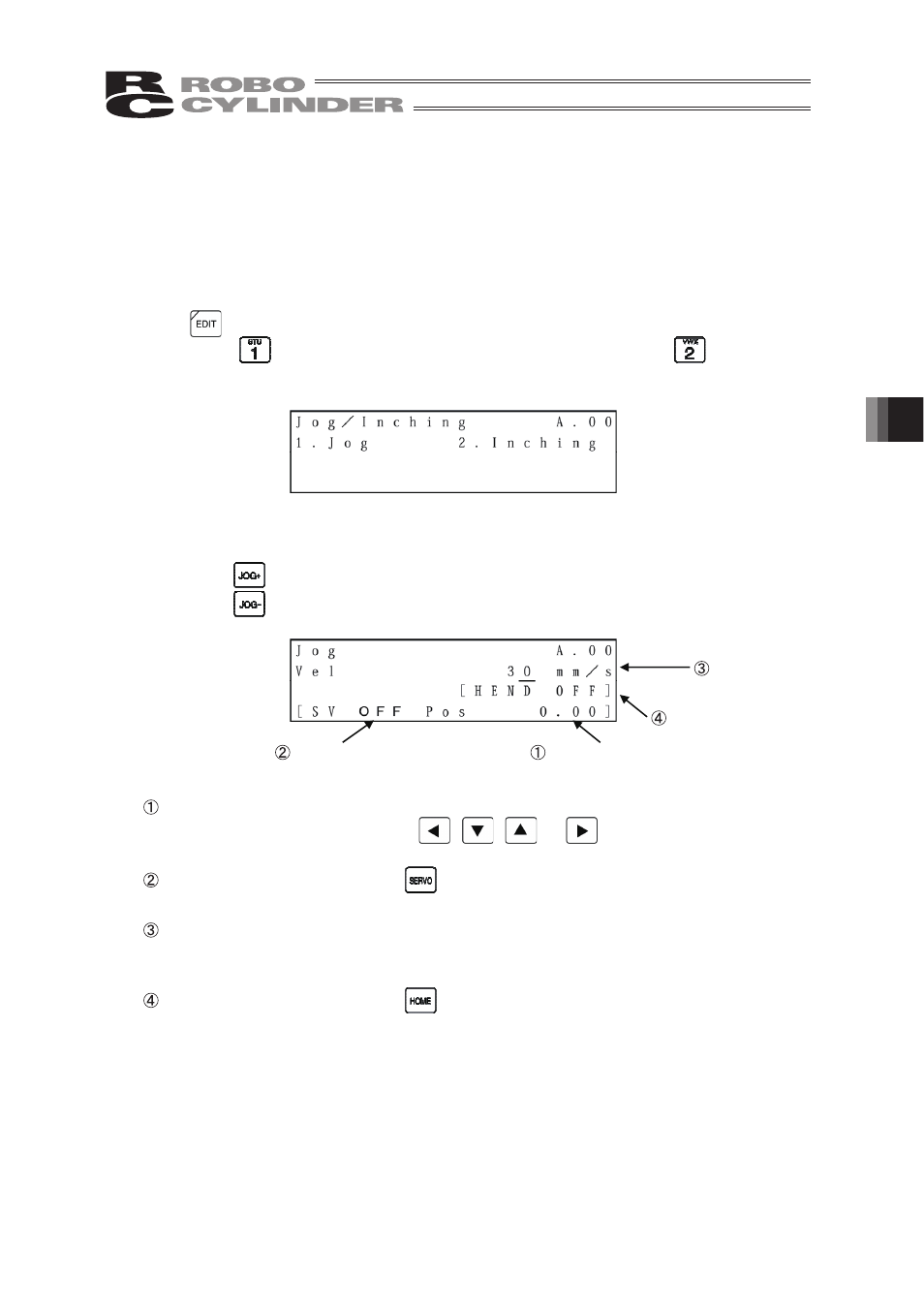

In the case of the PCON-PL/PO, ACON-PL/PO, or SCON controller (pulse train mode), if you select
“Jog” on the Jog/Inching select screen, servo ON/OFF, homing, or jog operation can be performed.
If you select “Inching,” inching operation can be performed.
Press the
key.
If you press the
key, jog operation can be performed. If you press the
key, inching
operation can be performed.
(1) Jog operation
The Jog screen will be displayed.
If you press the
key, the cursor will move in the positive direction of the displayed coordinates.
If you press the
key, the cursor will move in the negativ e direction of the displayed coordinates.
Current position: Indicates the current position. The unit can be changed between mm
and pulse with the
,
,
or
key.
Servo ON/OFF:
If you press the
key, the servo ON/OFF status will be reversed.
Jog speed:
Input the desired jog speed with the ten keys and press the Return key.
The input range is from 1 mm/sec to the safety speed set for the parameter.
Homing:
If you press the
key, homing will be performed.
Current position
Homing
Servo ON/OFF
Jog speed
