6.3 Operation Mode Selection

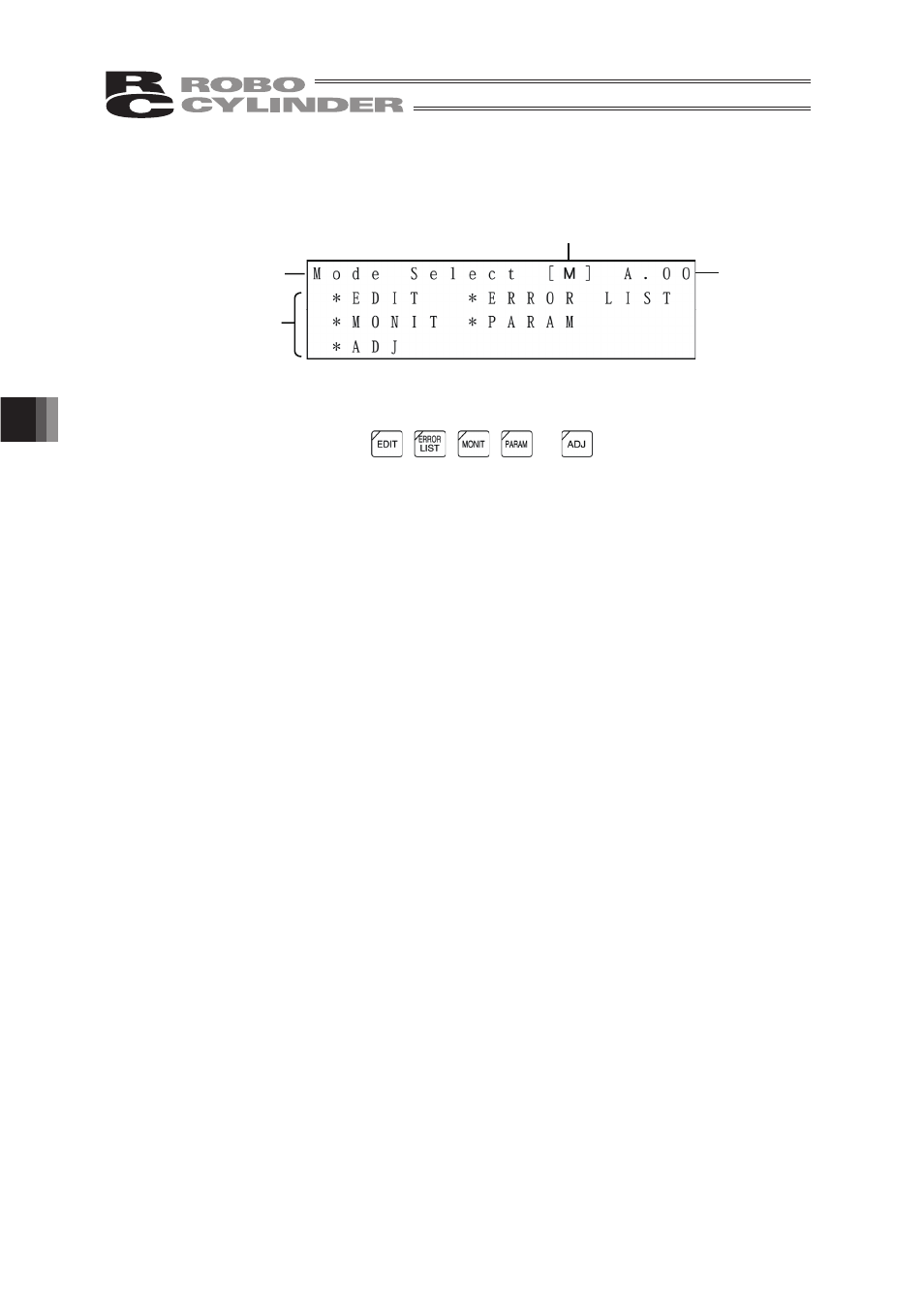

Mode Selection Screen
For the modes, select one of the 5 options as it appears on the above screen.
To select it, press one of the , , , or keys.
The screen will move to the screen of the selected mode.
However, it cannot move to any mode with the key LED out.
Category of Modes
(1) * EDIT Positioner (PCON-PL/PO, ACON-PL/PO and SCON: Mode other than
the Pulse Train mode)
Display and Edit function for positioner table
(Refer to 6.4 and 6.5)
Pulse Train (PCON-PL/PO, ACON-PL/PO and SCON: Pulse Train Mode)
Jog Operation, Inching Operation
(Refer to 6.5.8)
(2) * MONIT Controller status display (Refer to 6.6)
(3) * ERROR LIST
(4) * PARAM Setting of axis zone signal output range and axis attributes (Refer to 6.8)
(5) * ADJ Executing homing and axis number setting of controller series (Refer to 6.9)
Protocol type display
Board type display
Selected
controller
axis number Screen Display
Listing of modes
Alarm content detailed display (Refer to 6.7)
