In the case of the PCON, ACON, SCON controller or ERC2 the screen will automatically move
to the TP Operation Mode selection screen once checking of the connection is completed.
In the case of the RCP, RCS, E-Con or RCP2 controller, the screen will automatically move
to the Select Axis screen if multiple units are connected.
Select and press one of the , ,
or keys. The screen will move
the controller selection (Axis Select) screen.

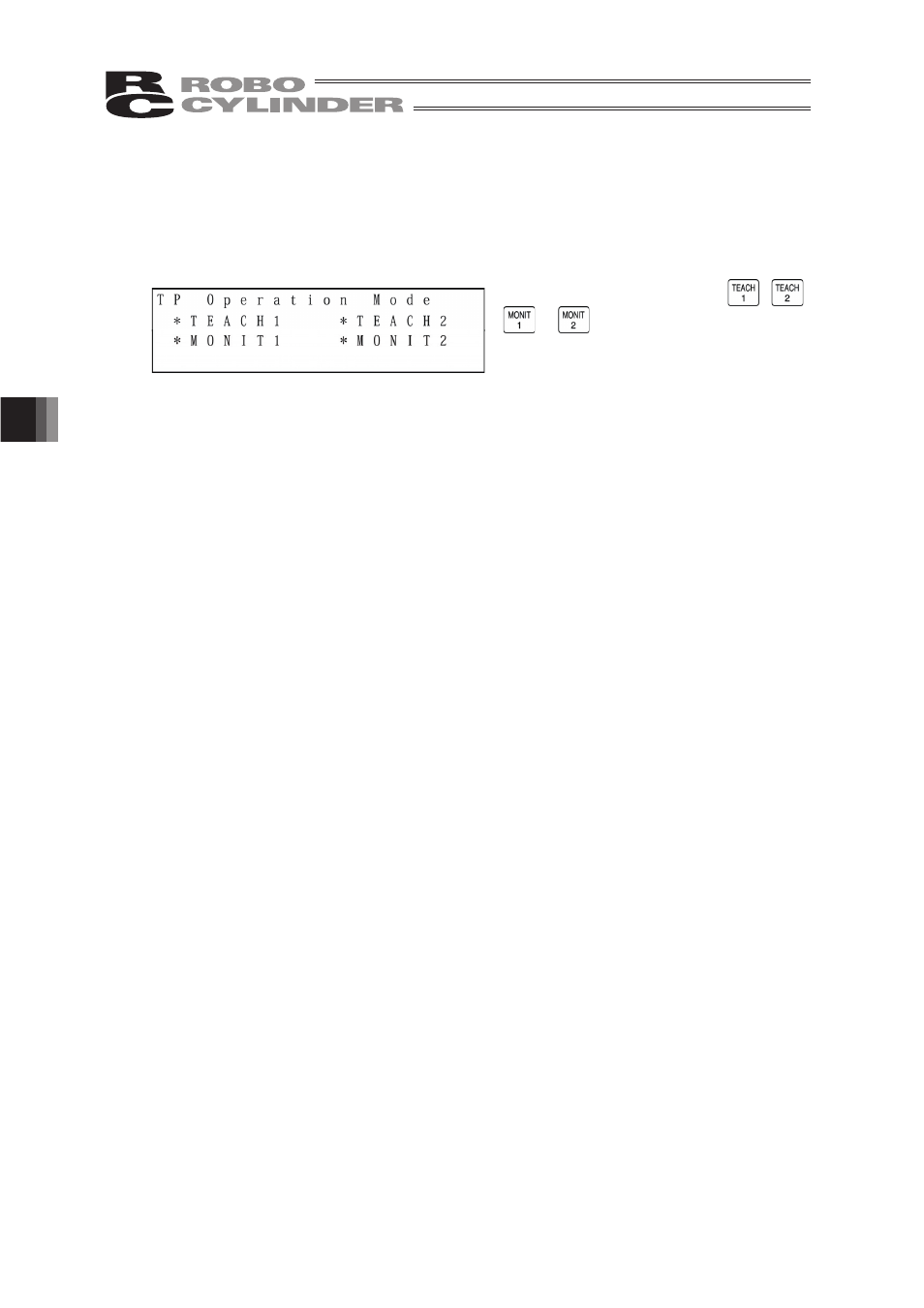

TP Operation Mode Selection Screen
Select an operation mode from the following 4 menu items:
- TEACH1: The LED is lit in the Teach 1 mode.
PIO Prh: Enables writing of position data, parameters, etc., in the controller and
commands of the actuator movement system.
SftyVel Efct: Keeps the maximum speed at the safety speed set for the parameter
regardless of position data.
- TEACH2: The LED is lit in the Teach 2 mode.
PIO Prh: Enables writing of position data, parameters, etc., in the controller and
commands of the actuator movement system.
SftyVel Non: Enables movement at the speed registered in position data.
- MONIT1: The LED is lit in the Monitor 1 mode.
PIO Prh: Enables monitoring only. Writing of position data, parameters, etc.,
in the controller and commands of the actuator movement system are
disabled.
SftyVel Efct: Keeps the maximum speed at the safety speed set for the parameter
regardless of position data.
- MONIT2: The LED is lit in the Monitor 2 mode.
PIO Prh: Enables monitoring only. Writing of position data, parameters, etc.,
in the controller and commands of the actuator movement system are
disabled.
SftyVel Non: Enables movement at the speed registered in position data.
