47
6.
Operation:
Mode
Flow
Chart

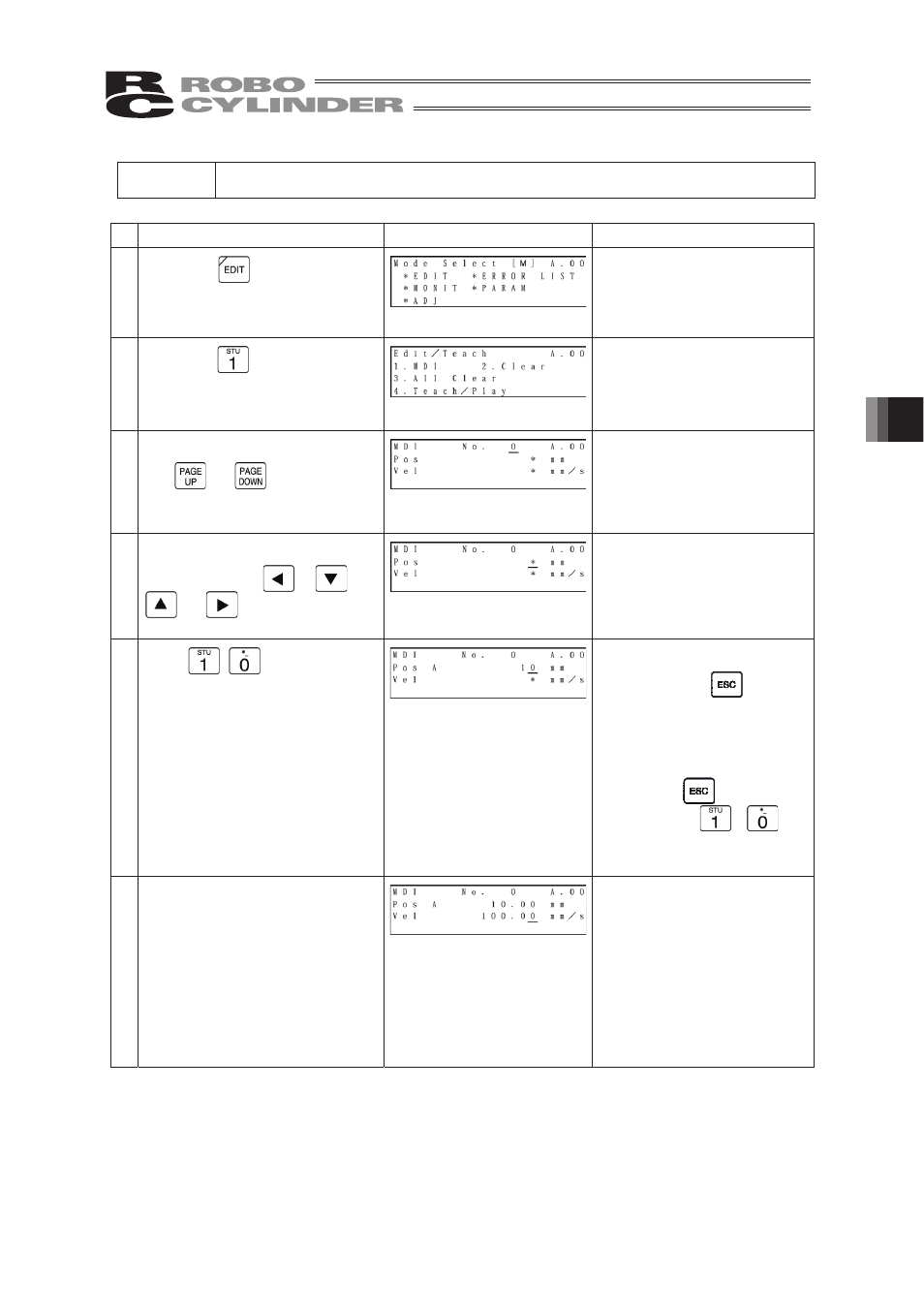

Example 2:
2 point continuous loop move Push operation 10mm position <-> 80mm position
(Push range 5mm)
Operation Screen Reference
1.
Press the key.
2.
Press the key to select
“MDI.”
3.
Set 0 into the position No. with
the or key.
For any unregistered data,
the display will show “*” sign.
4.
Move the cursor to the “Pos” input
position with the , ,
or key.
5.
Input here, and then
press the Return key.
In order to stop during numeric
input, press the key to
cancel the input.
Example)
by pressing immediately
after inputting ,
the status will return to the
6.
During new position data
registration, the initial values
set with the user parameters
for Vel, Acc, Dcc, etc., will
automatically be input.
In the left screen, the initial
value is set as 100 mm/sec.
With the left operation,
“*” display.
