Field Replaceable Units
FRU Removal and Replacement
System Unit Front Panel
This section describes how to open and close the workstation front panel.
Opening the System Unit Front Panel
Perform the following steps to open the system unit.
1. Power off the workstation, and unplug the power cord from the electrical outlet.
2. Attach the static-grounding wrist strap by following the instructions on the package.
Attach the sticky end of the wrist strap to bare metal on the back panel of the system
unit.
3. Unlock the front panel (also known as the front bezel) by pressing in on the two latch
buttons located on the right side of the front panel. See Figure 4-5.

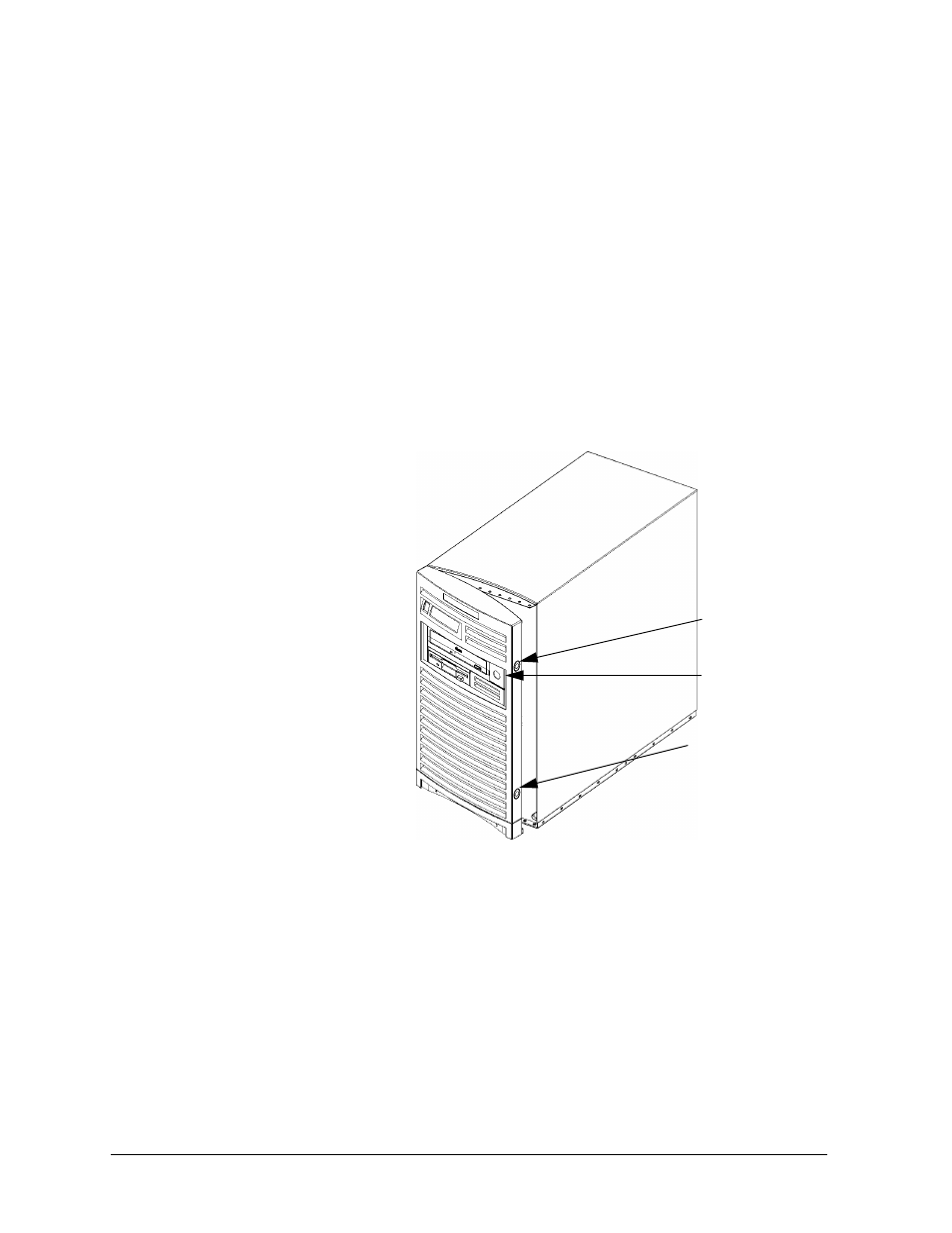

Figure 4-5. Opening the Front Bezel
4. Swing the panel clockwise on its left snap hinges until the panel comes free and place
the front panel in a location to avoid damage.
Closing the System Unit Front Panel
Perform the following steps to close the system unit.
1. Locate the snap hinges on the left side of the front panel, and insert them into the holes
located along the left edge of the system unit.
2. Rotate the front panel counterclockwise until you hear the two latch buttons snap in
place. The front panel is now closed. If there is a need to lock the front panel, use the
system unit keys supplied with the system to lock the panel.
Latch
Button
Front Panel
Lock
Latch
Button
