Chapter 4 123
Field Replaceable Units
FRU Removal and Replacement
mounting screws (T-10 Torx screws) as shown in Figure 4-31 and remove the CD Drive
from the bracket. You are now ready to attach the CD Drive blank to the CD Drive
bracket.

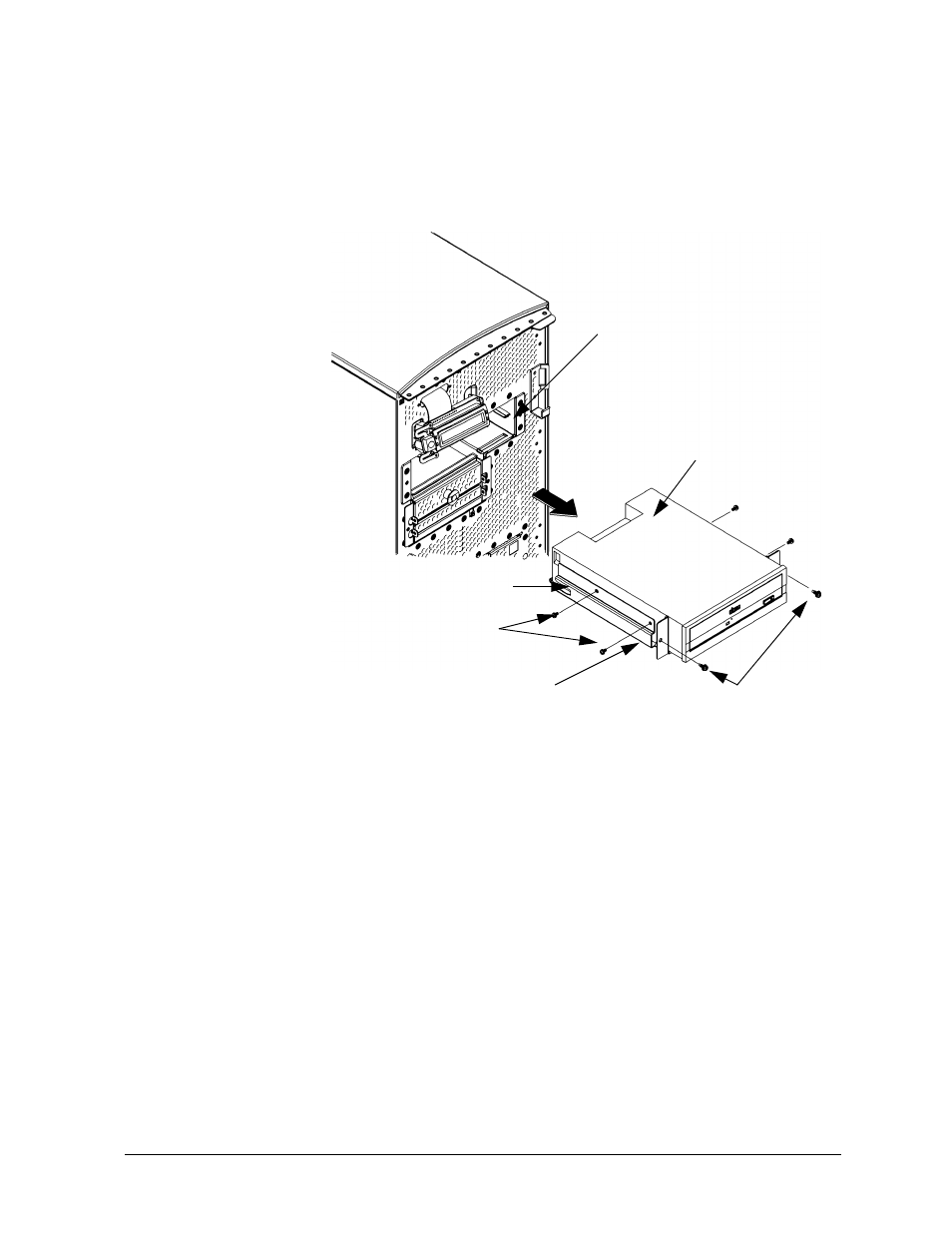

Figure 4-31. Removing the CD Drive
5. Insert the CD Drive blank in the CD Drive bracket and tighten the four CD Drive
mounting screws to secure the blank. Align the bracket runners and bracket guides and
slide the CD Drive blank and bracket into place. See Figure 4-32.
Bracket Guide
CD Drive
Bracket Runner
CD Drive Mounting
Screws
CD Drive Bracket Bracket Screws
