144 Chapter 4
Field Replaceable Units
FRU Removal and Replacement

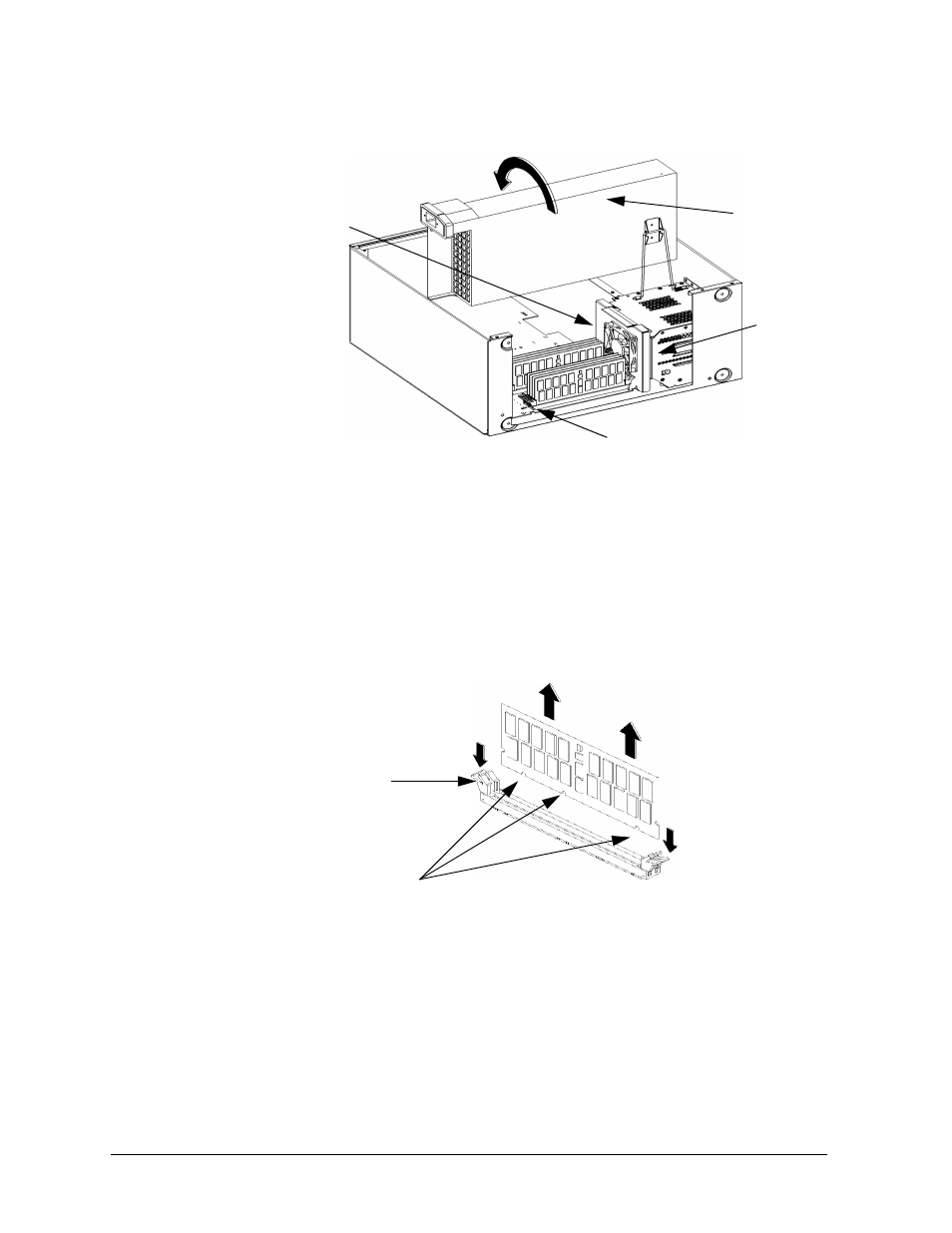

Figure 4-58. Propping Up the Power Supply
3. Prop up the system unit power supply as explained in the section “Propping Up the
System Unit Power Supply” in this chapter.
4. For ease in removing memory cards, remove the fan from the hard disk drive chassis.
See the section “Removing the Fan from the Hard Disk Drive Chassis” in this chapter.
5. Press downward on the ejector tabs located on both sides of the DIMM connector. See
Figure 4-59. This raises the DIMM card for easy extraction.
Figure 4-59. Removing Memory Cards
6. Lift up evenly on the outside edges of the DIMM card. See Figure 4-59..
7. Replace the power supply and system unit side panel. You may now plug the power cord
back into the electrical outlet.
8. Verify that the removal was successful by following the steps in Chapter 6, “Boot
Console Handler.”
Power
Supply
Fan
Bracket
DIMM Connectors
Disk/Memory
Fan
Ejector Tabs
Notches
