106 Chapter 4
Field Replaceable Units
FRU Removal and Replacement
I/O Cards
The B1000 and C3000 computer’s PCI assembly has six slots. Slots 5 and 6 are half-size
Peripheral Connect Interface (PCI) slots. Slots 1 through 4 are full-size PCI slots. See
Figure 4-11 for a brief description of slot capabilities.

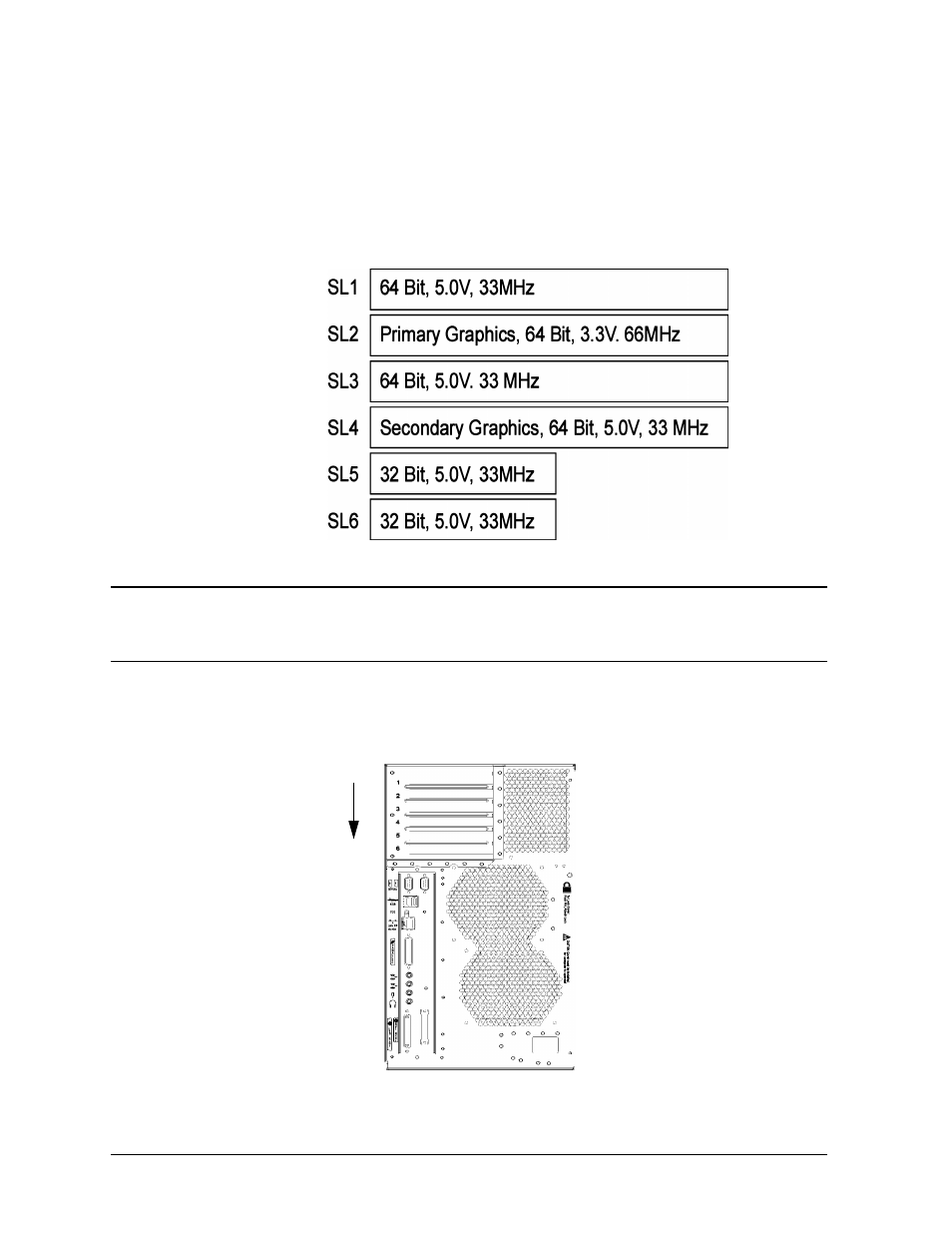

Figure 4-11. PCI Card Slot Numbering and Capabilities
NOTE To maintain good graphics performance, you should always use slot 2 (SL2) as
the primary graphics card slot and slot 4 (SL4) as the secondary graphics
card slot.
The six I/O slots as seen from the back of the computer are labeled from top to bottom
starting with one. See Figure 4-12.
Figure 4-12. I/O Slot Numbering
I/O Slot 1
I/O Slot 6
