Chapter 2 43
Configuration
FRU Configurations
Memory
This workstation has 8 memory slots, labeled 0 through 7. Memory can be configured from
128MB to 1.4GB for the B1000 and 256 MB to 2 GB for the C3000. Memory does not have
to be configured in pairs for the B1000/C3000, but must be loaded in the order described in
Figure 2-4.. Notice the alternating load pattern by location on the system board.

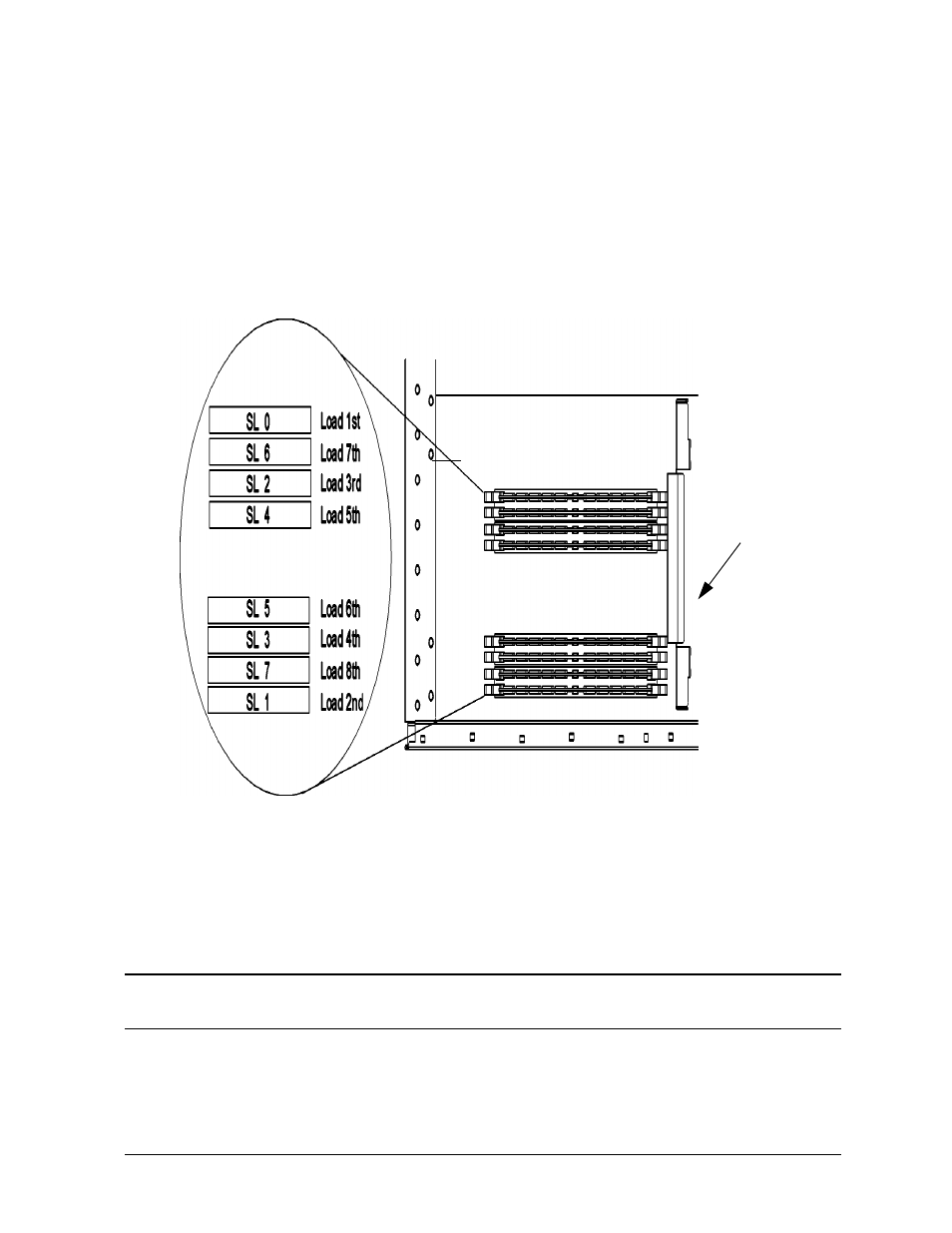

Figure 2-4. Memory Connectors
CAUTION The memory cards must be installed in the correct order, else the system will
not boot properly.
Hard Disk
Drive Fan
