Chapter 4 105
Field Replaceable Units
FRU Removal and Replacement

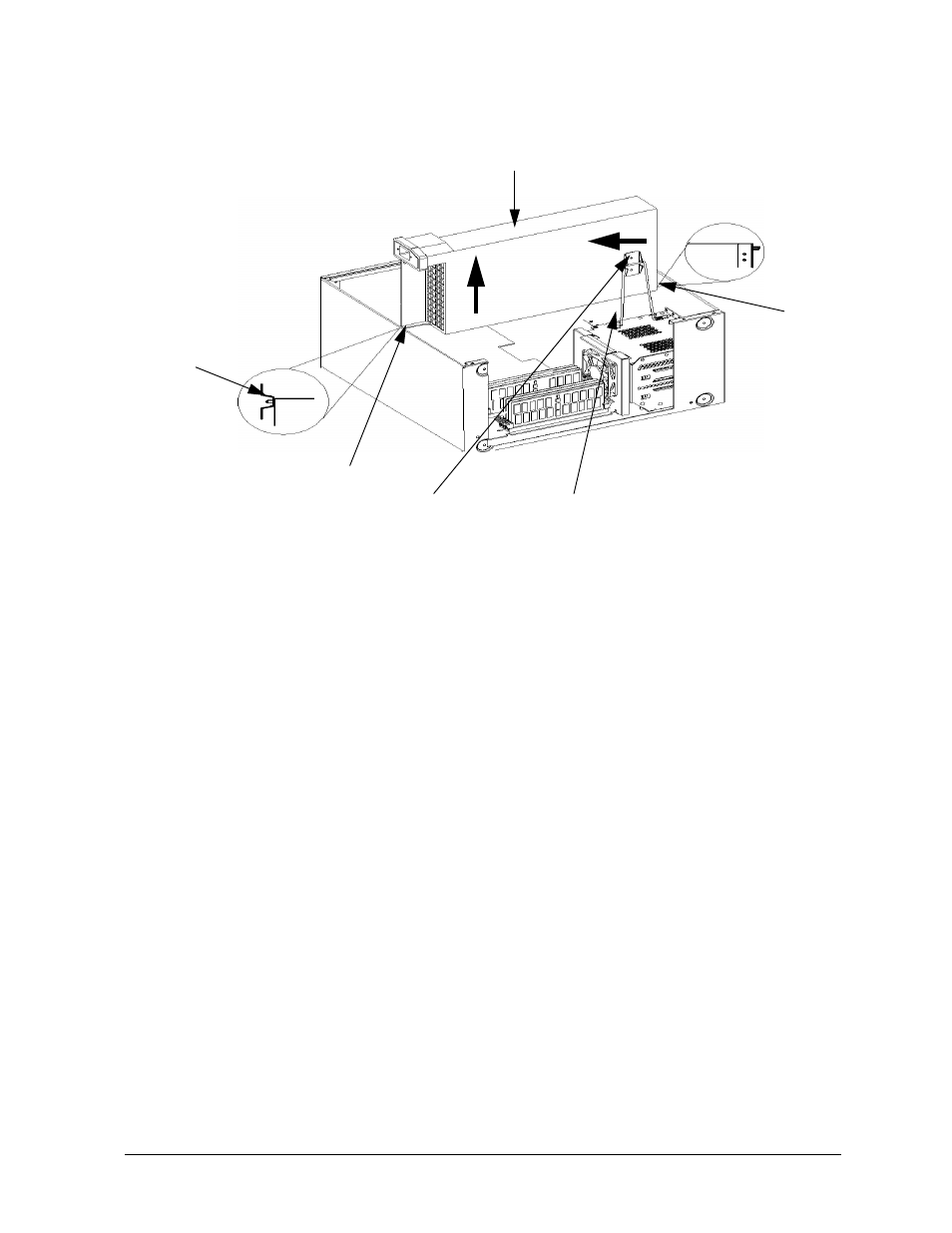

Figure 4-10. Removing the Power Supply
Closing the System
Once you have completed the task you set out to perform, you are ready to close the
system. To close the system follow these steps:
1. Pick up the power supply by its handle and slide the power supply pivot hole over the
right side hinge pin.
2. Position the left end of the power supply in its proper location and release the hinge
lever by lifting it up and allow the hinge pin to spring back into place. Adjust the angle
of the power supply until the bail drops into the bail bracket. It will now remain in
place.
3. Replace all power supply and sensor cables as shown in Figure 4-9. Make sure the
cables are positioned so they will not be damaged by power supply movement.
4. Grab the handle of the power supply and lower it into its original operating position.
See Figure 4-7.
5. Tighten both captive screws in place as seen in Figure 4-7.
6. Replace the left side panel to the system unit as shown in the section “Closing the Left
Side Panel of the System Unit” in this chapter.
Power Supply
Right Hinge
Bail Bail Lock
Spring Lever
Spring Hinge
