Figure450. inserting the hard disk drive, Removing a hard disk drive, Figure 4-50.. inserting the hard disk drive – HP B1000 User Manual
Page 137
Chapter 4
137
Field Replaceable Units
FRU Removal and Replacement

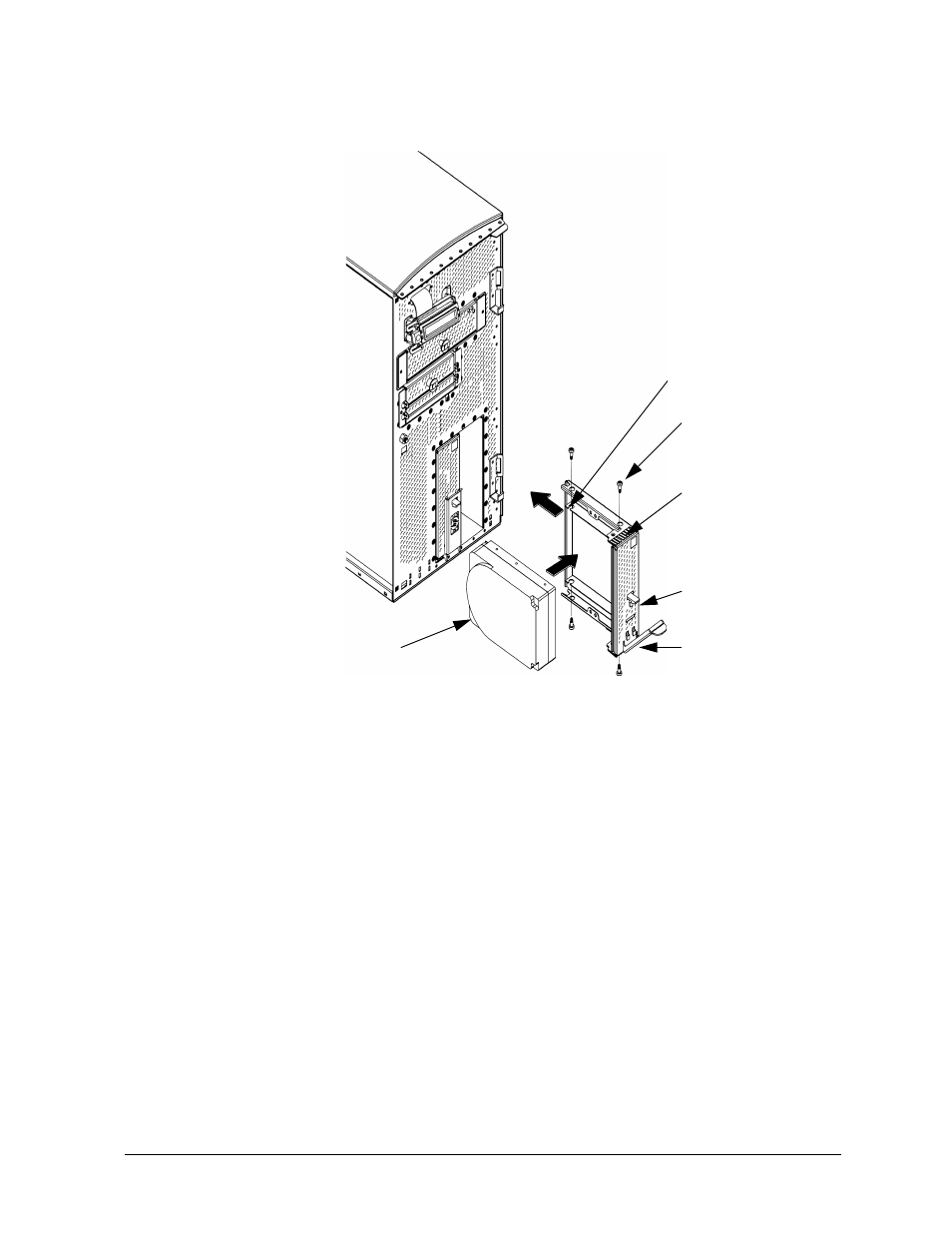

Figure 4-50. Inserting the Hard Disk Drive
Removing a Hard Disk Drive
This procedure explains how to remove the hard disk drive. Note that there are no cables
for you to worry about when removing a hard disk drive.
1. Open the front panel of the system using the instructions found in the section “Opening
the System Front Panel.” In the lower-right corner of the system unit as you face it,
there are two hard drive slots. The slot on the far right is the one discussed in this
section. See Figure 4-51.
T-15 Torx
Hard Drive Bracket
Hard Disk
Drive
Plastic Release
Hook
Release Lever
Shoulder Screw
Mounting Grommet
(do not remove)
