Chapter 11 Parts removal and replacement
96 Profile XP Service Manual 23 July 2004
Removing and installing plug-in circuit boards
NOTE: Holding the lever up while pushing down on the board can jam it against
the bulkhead, making board extraction extremely difficult.

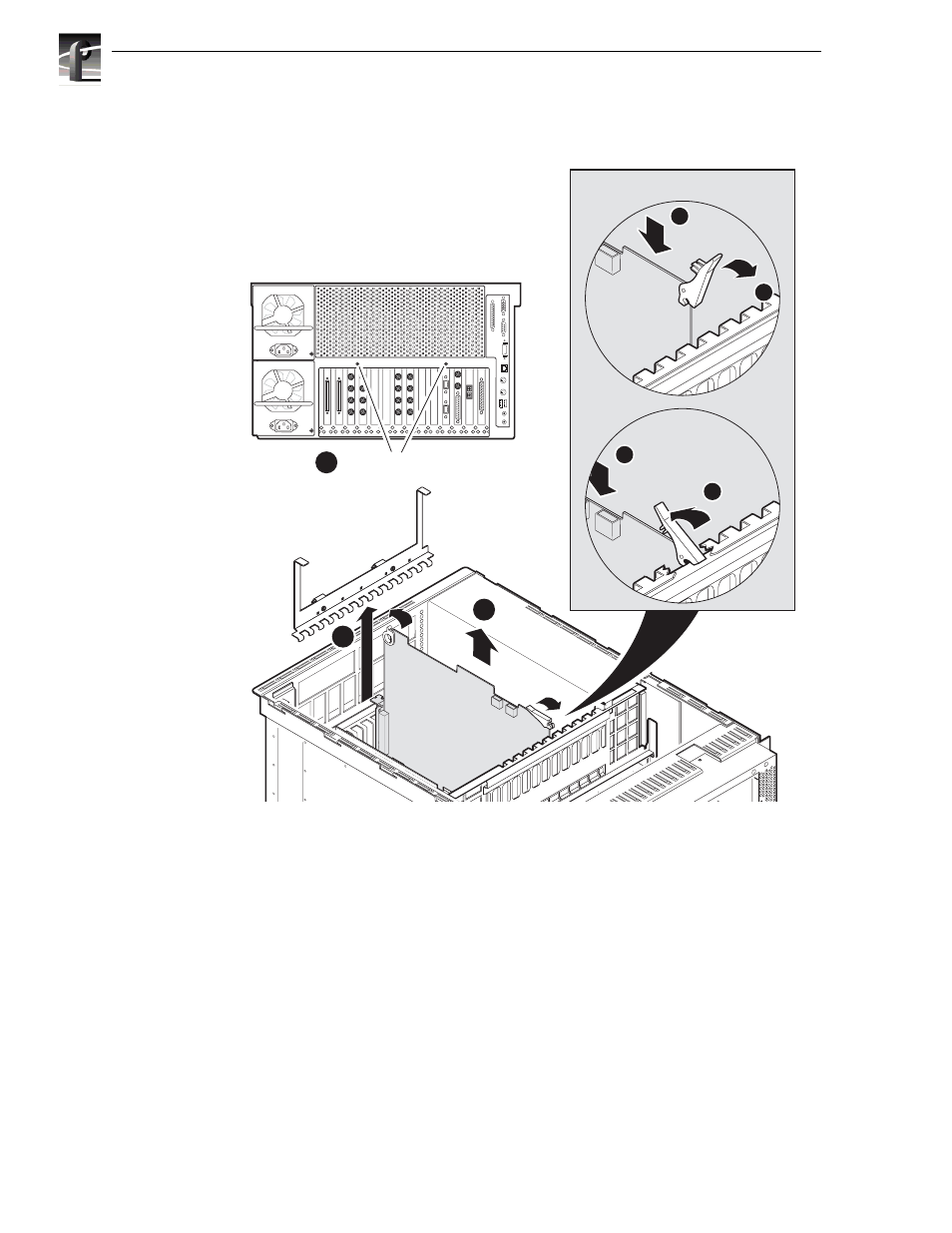

To install a board, follow these steps (refer to the installation detail in the illustration):
1. Lift the release lever to the up position.
2. Lower the board in the slot.
3. When the lever contacts the bulkhead, swing the lever down to seat the board in the
front socket and latch the board in place.
4. Push down on the rear of the board to seat the board in the rear socket.
0625-27
1
2
3
Remove screws
Board Installation Details
4
3
1
2
