Appendix A Diagnostic Tools
140 Profile XP Service Manual 23 July 2004
Controlling the front panel LED
You can configure the LED on the front panel of the Profile XP Media Platform to
flash whenever an alarm or warning condition occurs, as explained in this section.
Configuring the Flash LED action

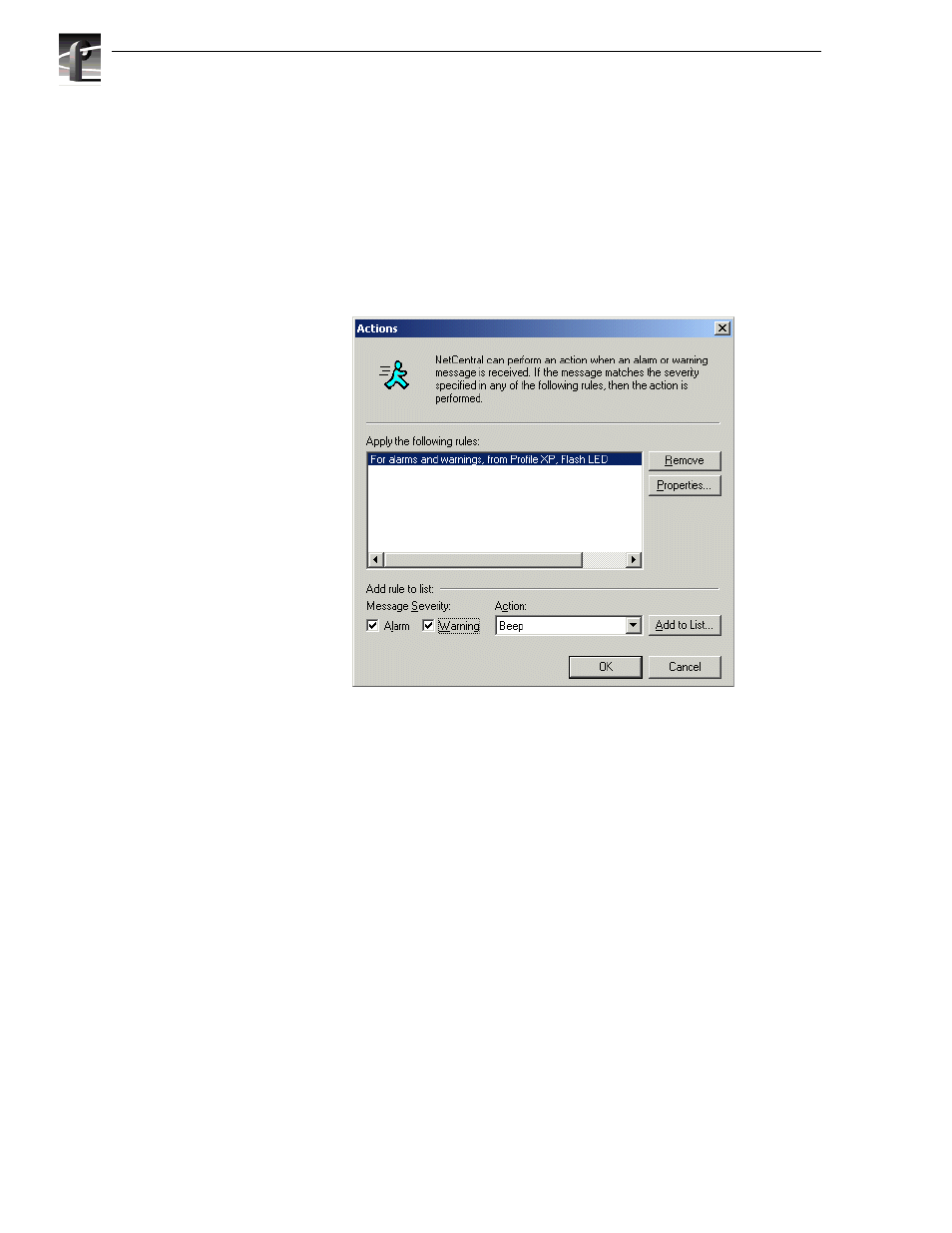

1. In the NetCentral main window, click Configure | Actions or Actions | Set Actions .
The Actions dialog box or the Actions Wizard opens. Follow the on-screen
instructions to add the action, as follows for the Actions dialog box.
2. As indicated by the interface text, create a new rule for this action by selecting
Alarm or Warning. Then, in the Action list, select Flash LED .
3. Click the Add to List button. The Flash LED Configuration dialog box opens.
4. Select the rule and click Properties . The Flash LED Configuration dialog box
opens.
