Interpreting status indicators
23 July 2004 Profile XP Service Manual 123

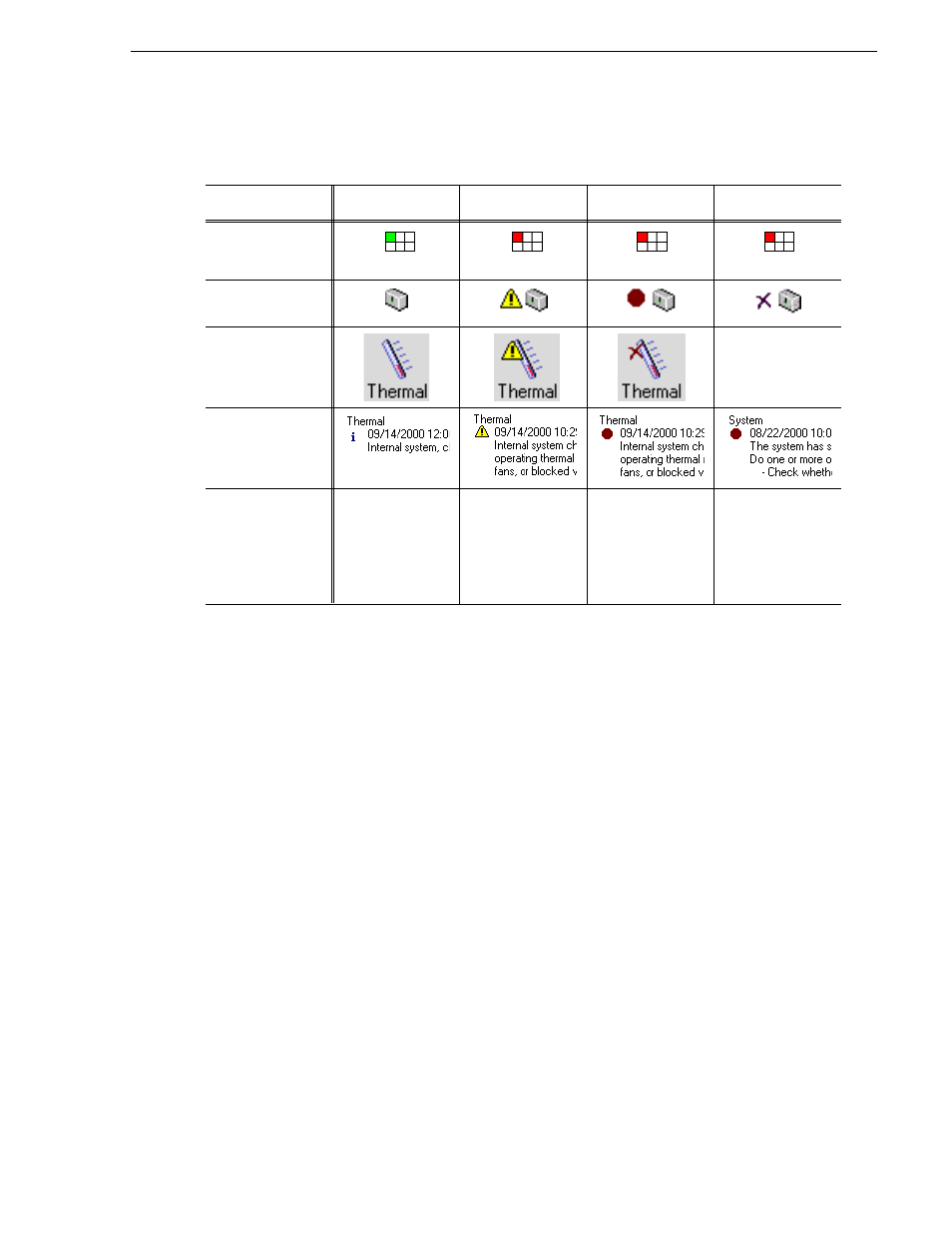

NetCentral Lite indicates these status levels throughout the interface, using the
following icons, colors, animations, and actions:
The following sections contain more detailed information about status indicators.
Viewing the system tray icon
As long as NetCentral Lite is running, you will see an icon in the system tray of your
Windows task bar. The moving color in the icon provides visual confirmation that the
system is operational, using these colors to indicate device status level:
Green = Normal
Red = Warning
Red = Alarm/Dead or Off-line
Starting and stopping NetCentral Lite
To start the NetCentral Lite software, double-click the NetCentral icon on your
Windows NT desktop or select
Start | Programs | NetCentral .
To stop NetCentral Lite from the NetCentral Lite window, click File | Exit .
To stop NetCentral Lite from the system tray icon, right-click the icon and choose
Exit .
Normal Warning Alarm Dead or Off-line
System tray icon
Green color block Red color block Red color block Red color block
Main window
device view
Main window sub-
system view Not Applicable
Main window mes-
sage view
Default Actions
(Read “Configur-
ing actions and
notifications” on
page 138 for more
actions) No action The main window
appears and a
warning beep
sounds The main window
appears and an
alarm beep sounds. The main window
appears and an
alarm beep sounds.
