Removing the fan unit – Grass Valley Profile XP Service Manual User Manual
Page 90
Chapter 11 Parts removal and replacement
90
Profile XP Service Manual
23 July 2004
Removing the fan unit

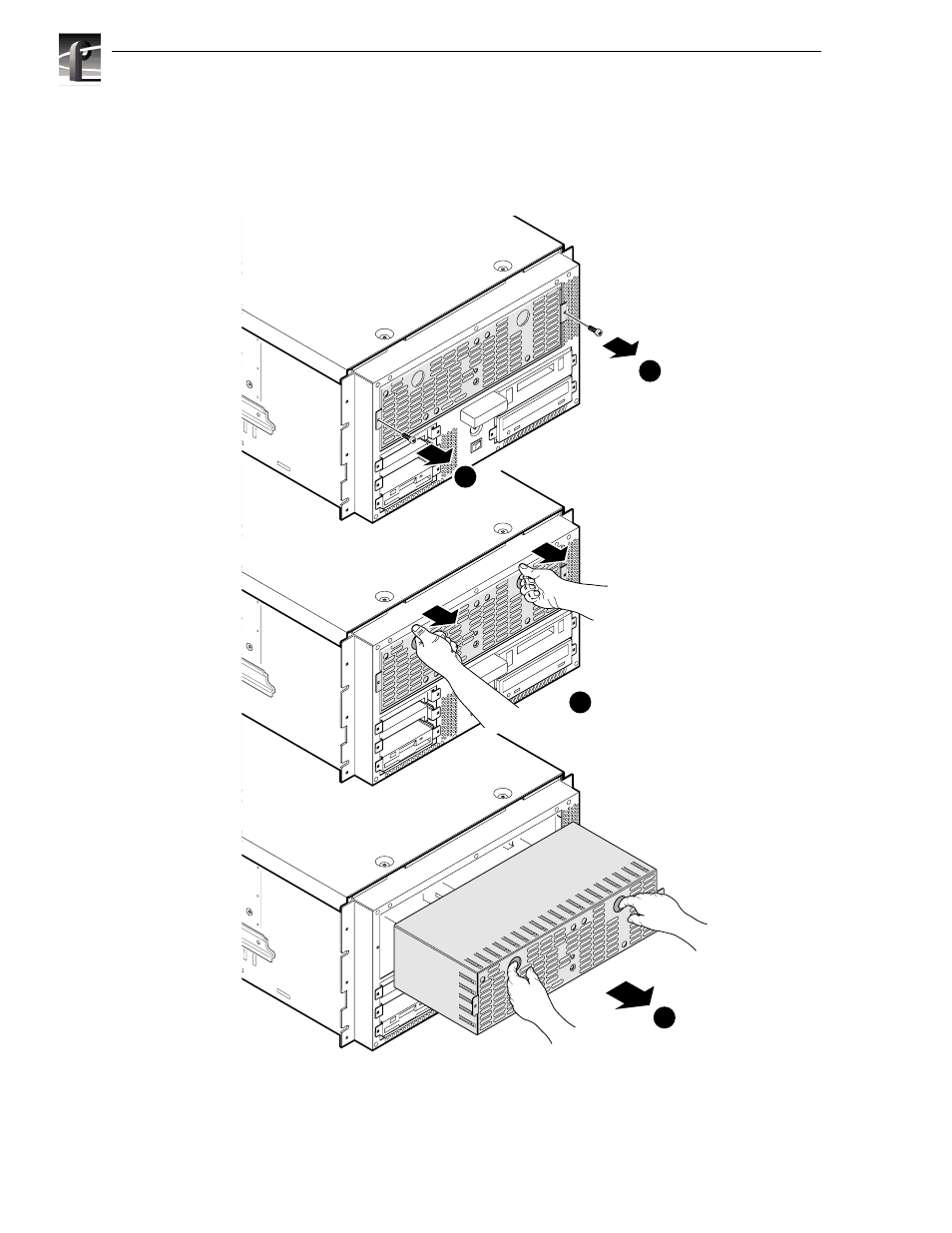

When removing the fan unit, hook forefingers in the holes on the fan unit and pull
while pressing the thumbs against the edge of the chassis.
0625-6
3
2
Pry with thumbs against
chassis to unseat fan unit.
1
1
