Chapter 11 Parts removal and replacement
118 Profile XP Service Manual 23 July 2004

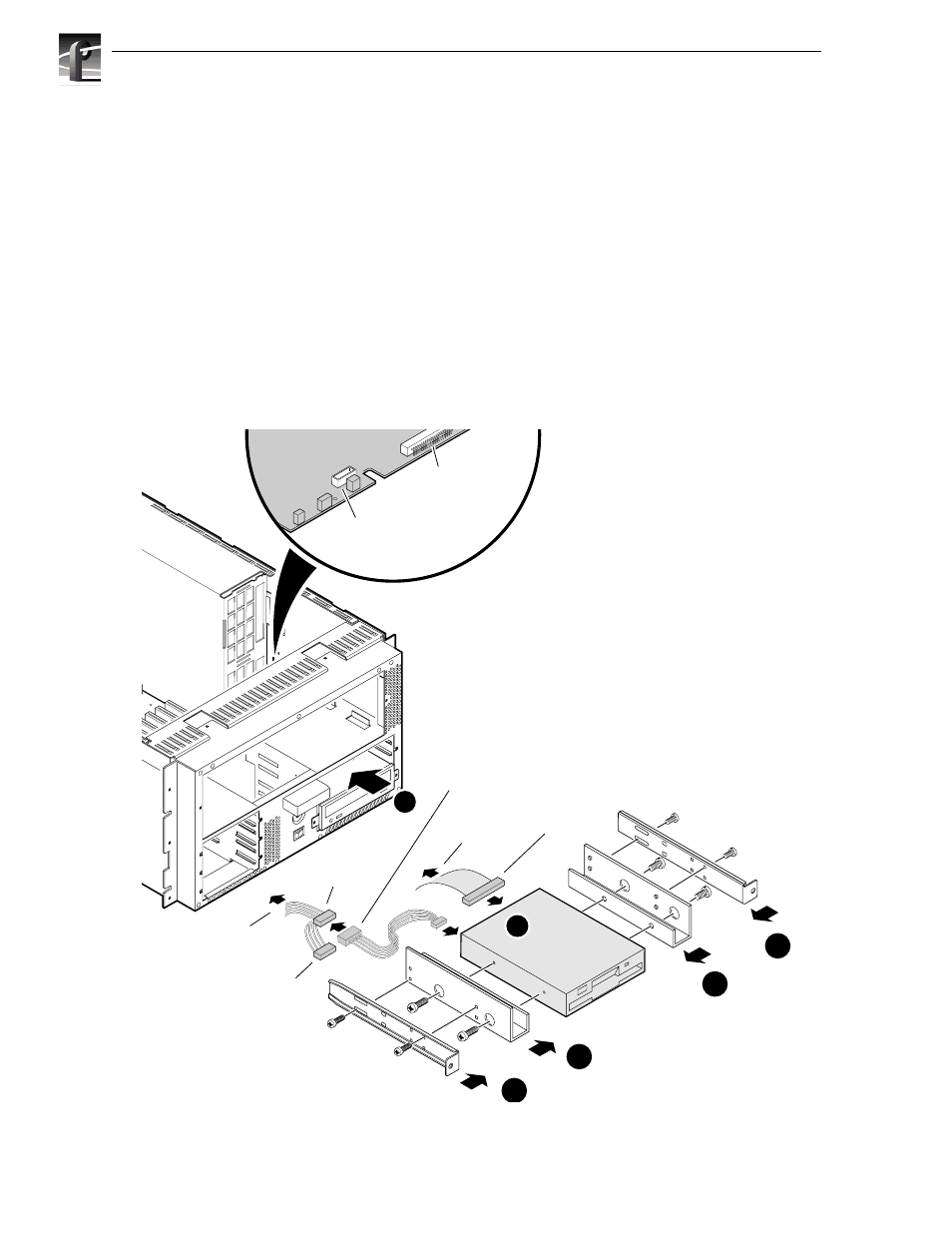

Replacing the Superdrive
To replace the Superdrive in the Profile XP chassis:
1. Shut down the Profile XP system and remove the front panel, fan unit, top cover,
and air chamber from the Profile XP chassis to allow access to the cable connectors
on the motherboard and the back of the drives installed in the bays.
2. Disconnect the IDE ribbon cable and power cable from the drive.
3. Install the 5.25" adapter brackets to the sides of the replacement Superdrive.
4. Slide the Superdrive into the upper 5.25" bay until it seats.
5. Connect the IDE ribbon cable and power cable to the plugs on the rear of the
Superdrive.
6. Reinstall the air chamber, the fan unit, the top cover, and the front panel.
0625-25
IDE Power
IDE
4
IDE to Floppy
Power Adapter
(supplied with DupliDisk)
SuperDisk
Drive
IDE Power
Cable
To
CDROM
Drive
To
Motherboard
IDE
Cable
1
1
2
2
To
Motherboard
3
