Chapter 10 Routine maintenance
84
Profile XP Service Manual
23 July 2004

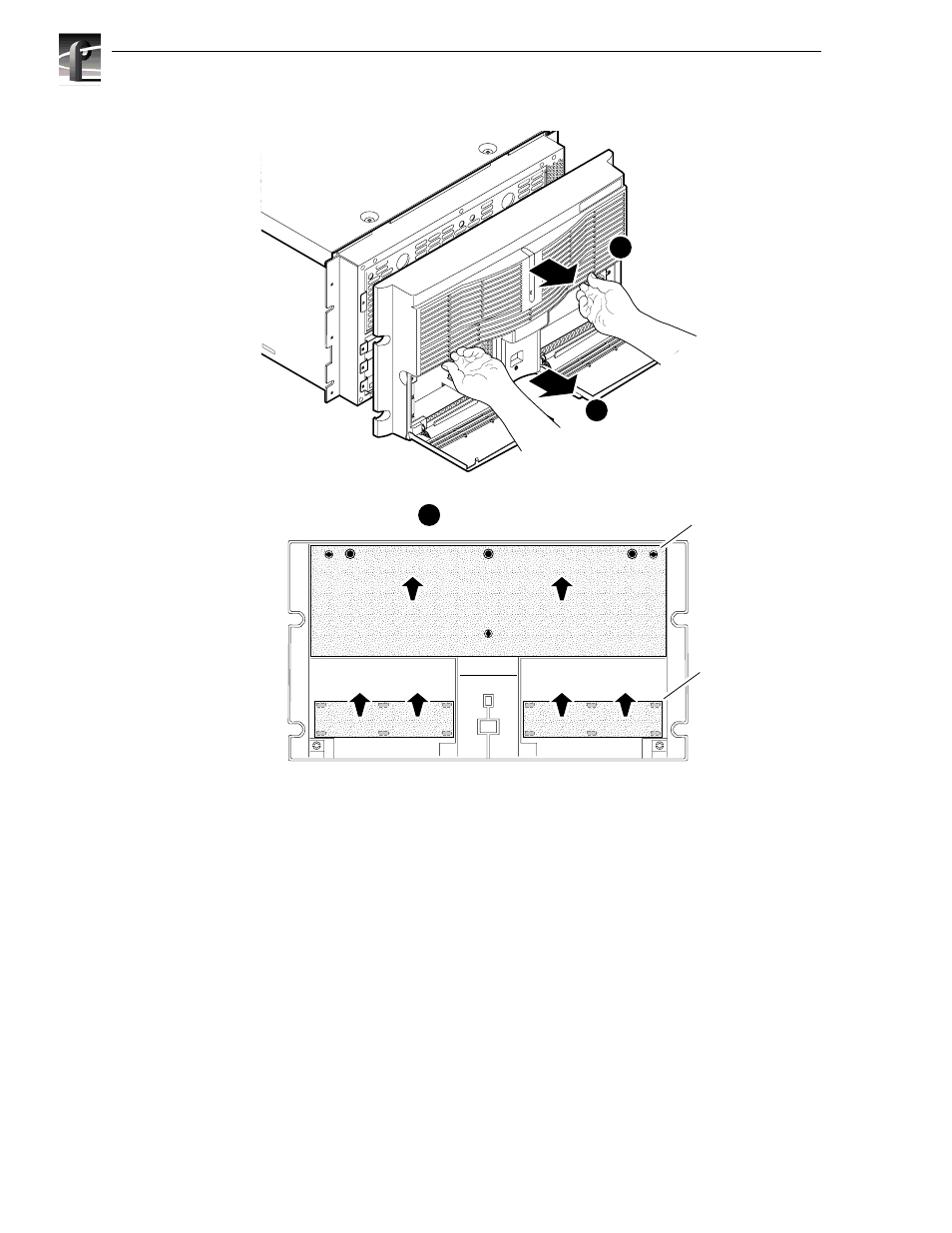

Removing the Profile XP Media Platform Front Panel and Air Filters
3
0625-1
Alignment
Posts (6)
Turn over front panel
and remove filters
Attachment
tabs (6 each)
1
2
Gently pull front panel
until bottom fasteners
unsnap.
Reach further behind front
panel and pull until top
fasteners unsnap.
