Front panel controls and indicators
23 July 2004 Profile XP Service Manual 23
Front panel controls and indicators
The Profile XP Media Platform front panel shown here includes the following
controls and indicators:
➊ Standby/On LED - indicates the standby switch is in the on position and that
secondary voltages are present in the chassis.
➋ Standby/On Switch - provides system On/Off control.
➌ System Fault LED - indicates a system fault somewhere in the Profile XP system.
This LED is under control of the NetCentral system and goes off when NetCentral
receives notice from the system that the cause of the fault is cleared.

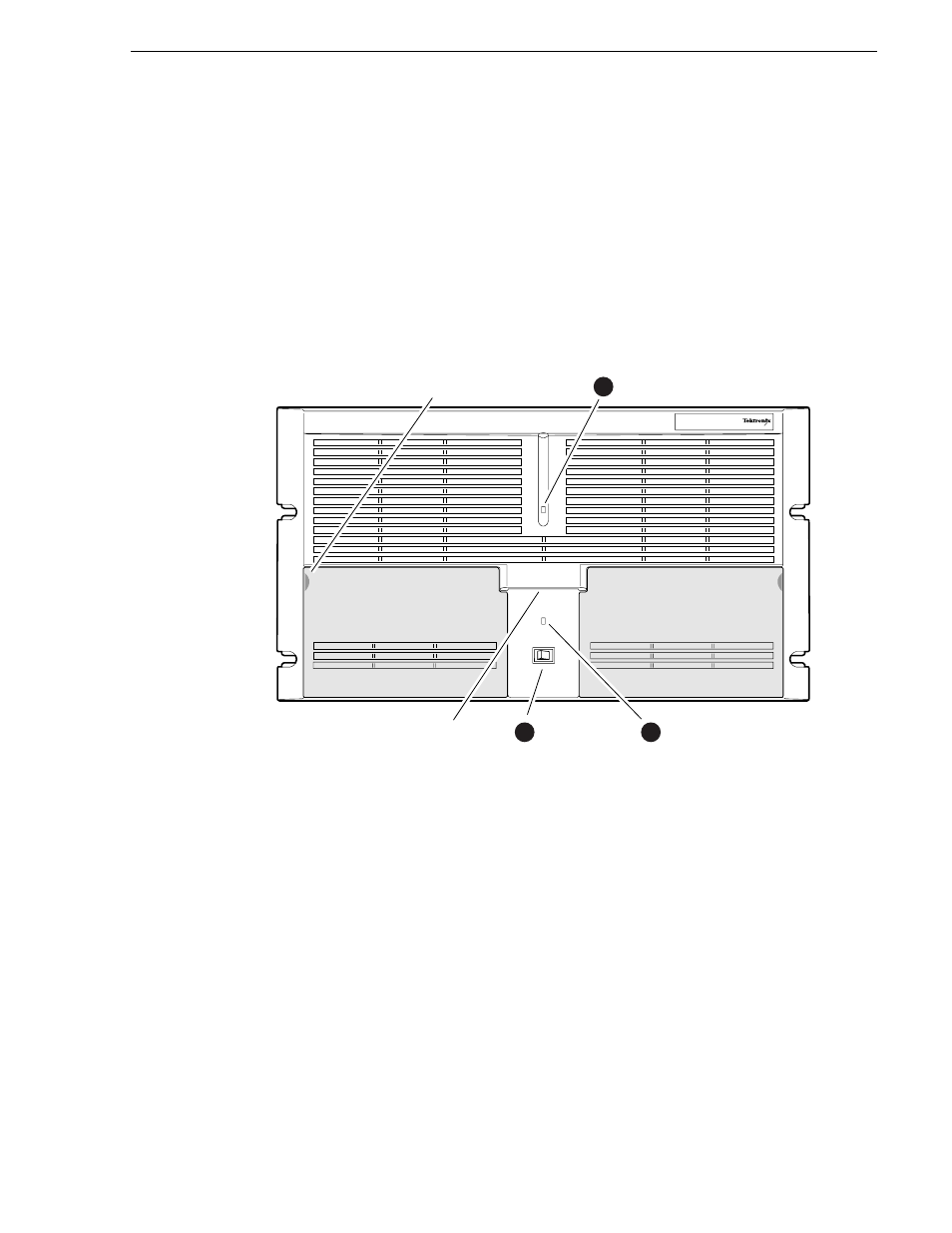

Profile XP Media Platform front panel
The Profile XP front panel features two accessory doors that provide access to several
application subsystem storage devices. A system with standard equipment is shown
on page 24, while a system equipped with the redundant storage option is shown on
page 25.
0624-5
Standby/On
Switch
2
System
Fault LED
3 Chassis Pull
Standby/On LED
Pull here to
open (each side)
Accessory
Door
Accessory
Door
1
