23 July 2004 Profile XP Service Manual 89
Chapter
11
Parts removal and replacement
The pictures in this chapter show how to disassemble the Profile XP Media Platform.
Re-assembly is the reverse. A list of field-replaceable parts is found at the end of the
chapter.
NOTE: Do not discard any hardware unless specifically instructed to do so.
WARNING: To avoid serious injury from high currents, ensure that the power cord
is disconnected prior to removing or replacing any internal parts.
Procedures
The disassembly procedures are divided into two categories: external parts removal,
and internal parts removal. You need only a Torx tool with T15 magnetic tip to
remove and replace parts in the Profile XP Media Platform.
External Parts Removal
All the parts in this category can be removed and replaced without opening the
Profile XP cabinet, and except for the power supplies, are accessible from the front of
the cabinet.

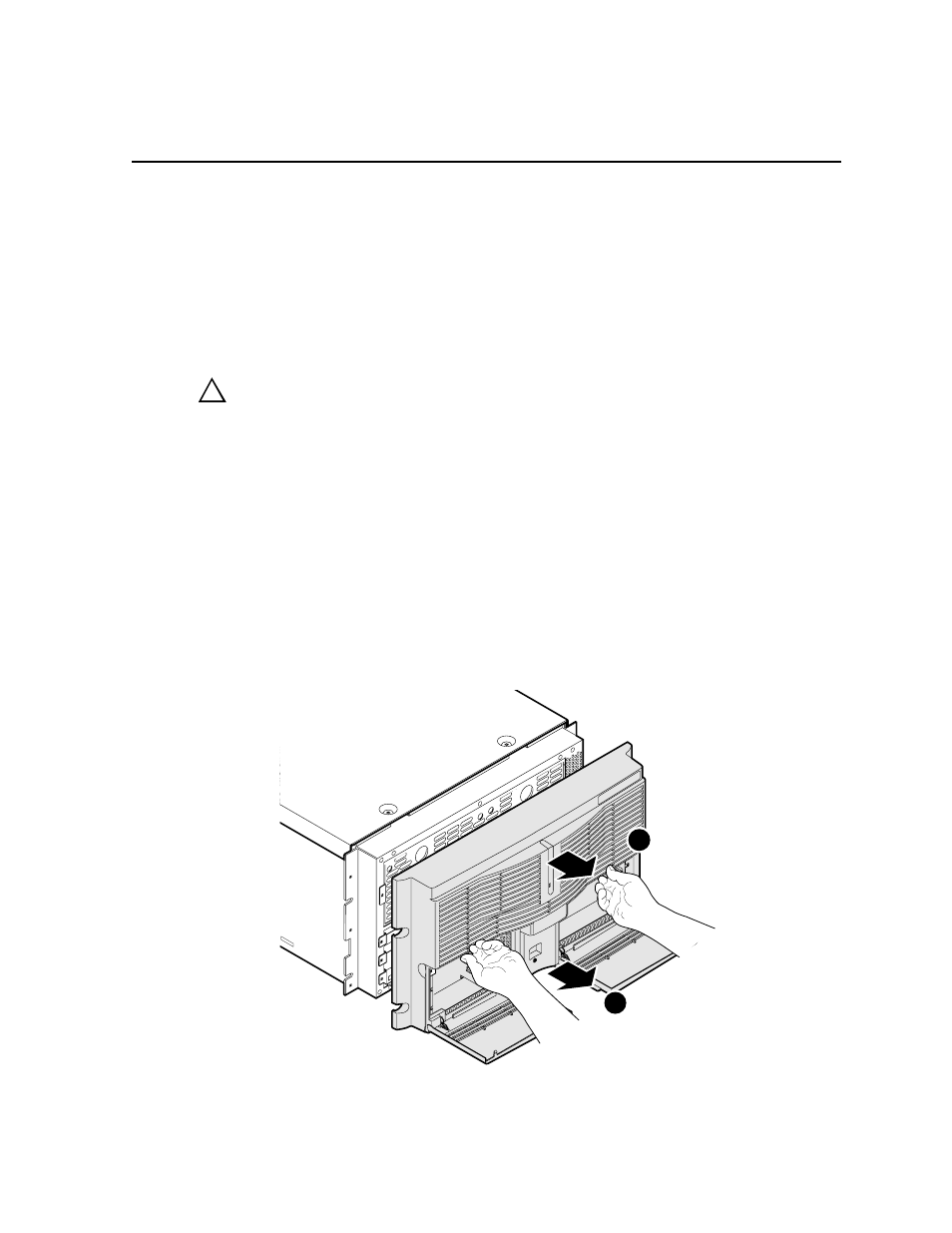

Removing the front panel
!
0625-16
Gently pull front panel
until bottom fasteners
unsnap.
Reach further behind front
panel and pull until top
fasteners unsnap.
1
2
