Chapter 11 Parts removal and replacement
102
Profile XP Service Manual
23 July 2004
Installing the motherboard
To install the motherboard:
1. Carefully lower the motherboard into position and fasten it to the chassis with the
removed screws.

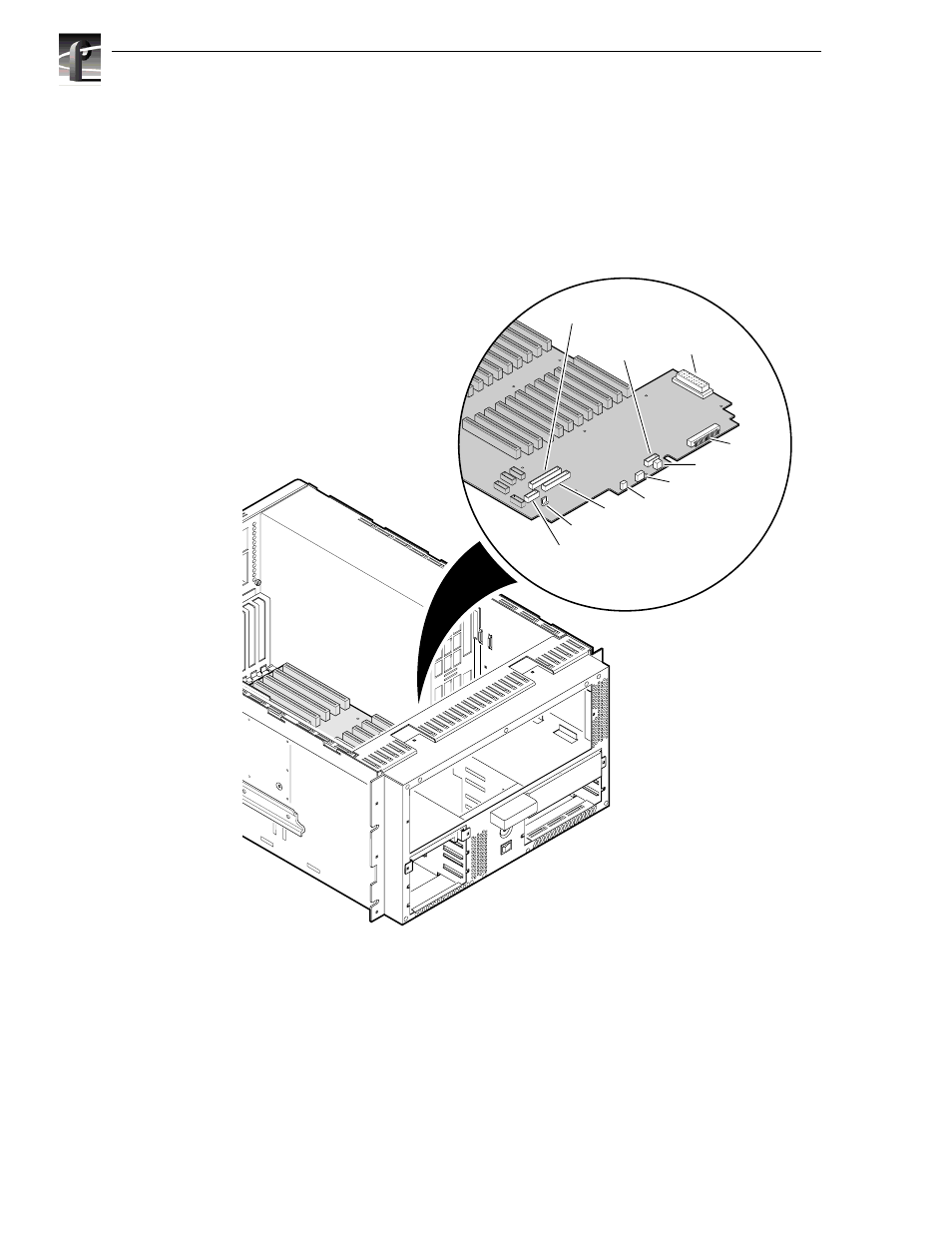

2. Attach all disconnected cables as shown in the following illustration.
3. Install the bulkhead, the power distribution board, the air chamber, and the
processor board.
NOTE: You can skip to step 7 if you are certain that the replacement motherboard
is programmed with the same version of Profile System Software as the other
boards in the system.
4. Connect the keyboard, monitor, mouse, and system power.
0625-17
IDE Drive (Power)
IDE Drive
Floppy Drive (Power)
Floppy Drive
CDROM
Standby/On Switch
Fan (Power)
CDROM
(Power)
Power
Distribution
Board
Fault LED
