Configuring actions and notifications
23 July 2004 Profile XP Service Manual 141
5. If your environment uses unique SNMP community names, enter the appropriate
SNMP community name. Otherwise, accept “public” as the default name.

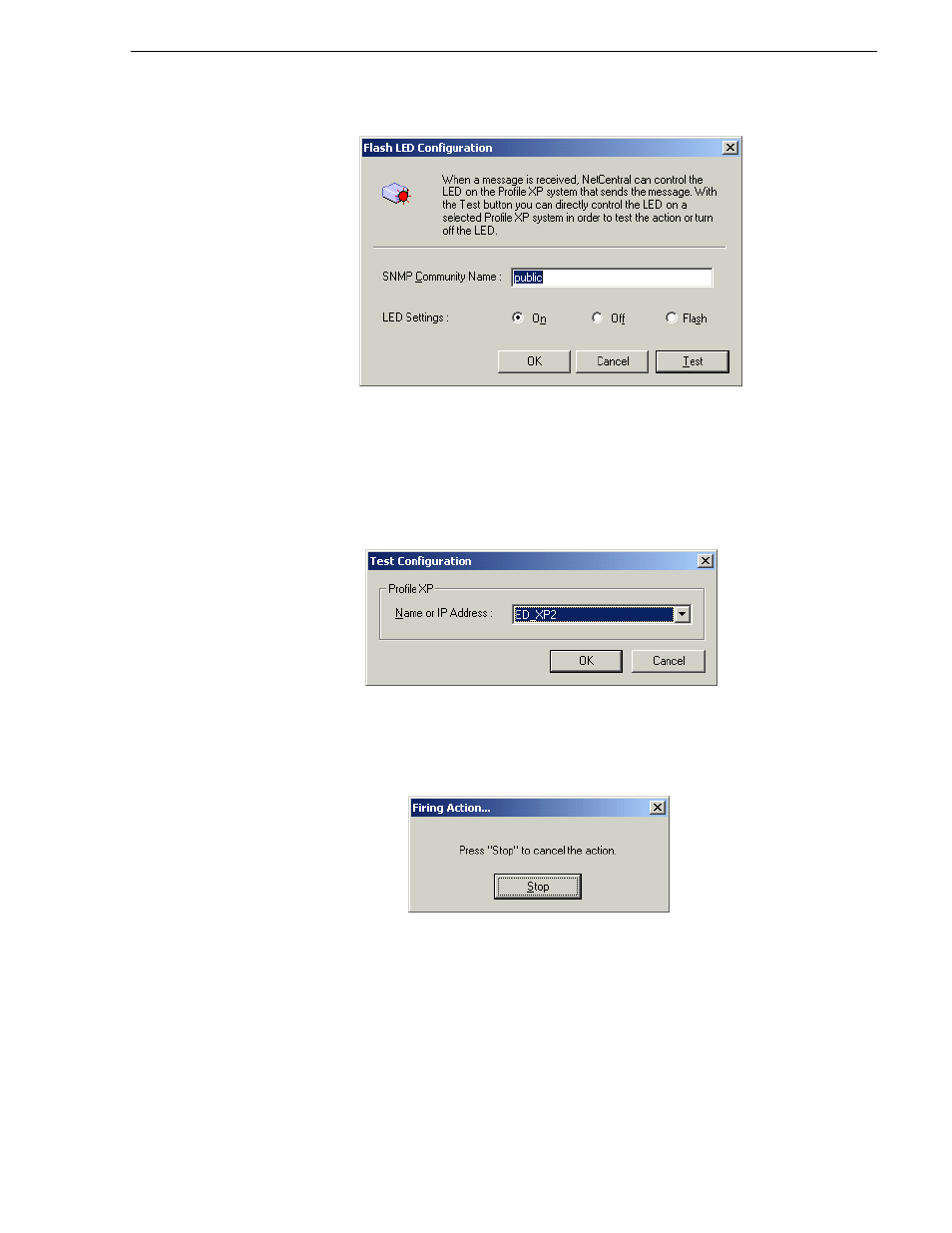

6. Select the option that controls the LED as desired. In most cases you will select
“On” or “Flash” to activate the LED for alarms or warnings.
7. Click Test . The Test Configuration dialog box opens.
8. Select the name of your Profile XP Media Platform and click OK on the dialog box
and on the “…triggered successfully…” message that appears. The Firing Action
dialog box appears.
9. After you have verified that the LED is behaving correctly as configured, click
Stop on the Firing Action dialog box. You can also turn off the LED by clicking
Cancel Actions on the NetCentral Lite main window.
