Viewing the NetCentral Lite main window
This section documents NetCentral II Lite. For NetCentral III Lite click
Help | Help
Topics
to view similar documentation.

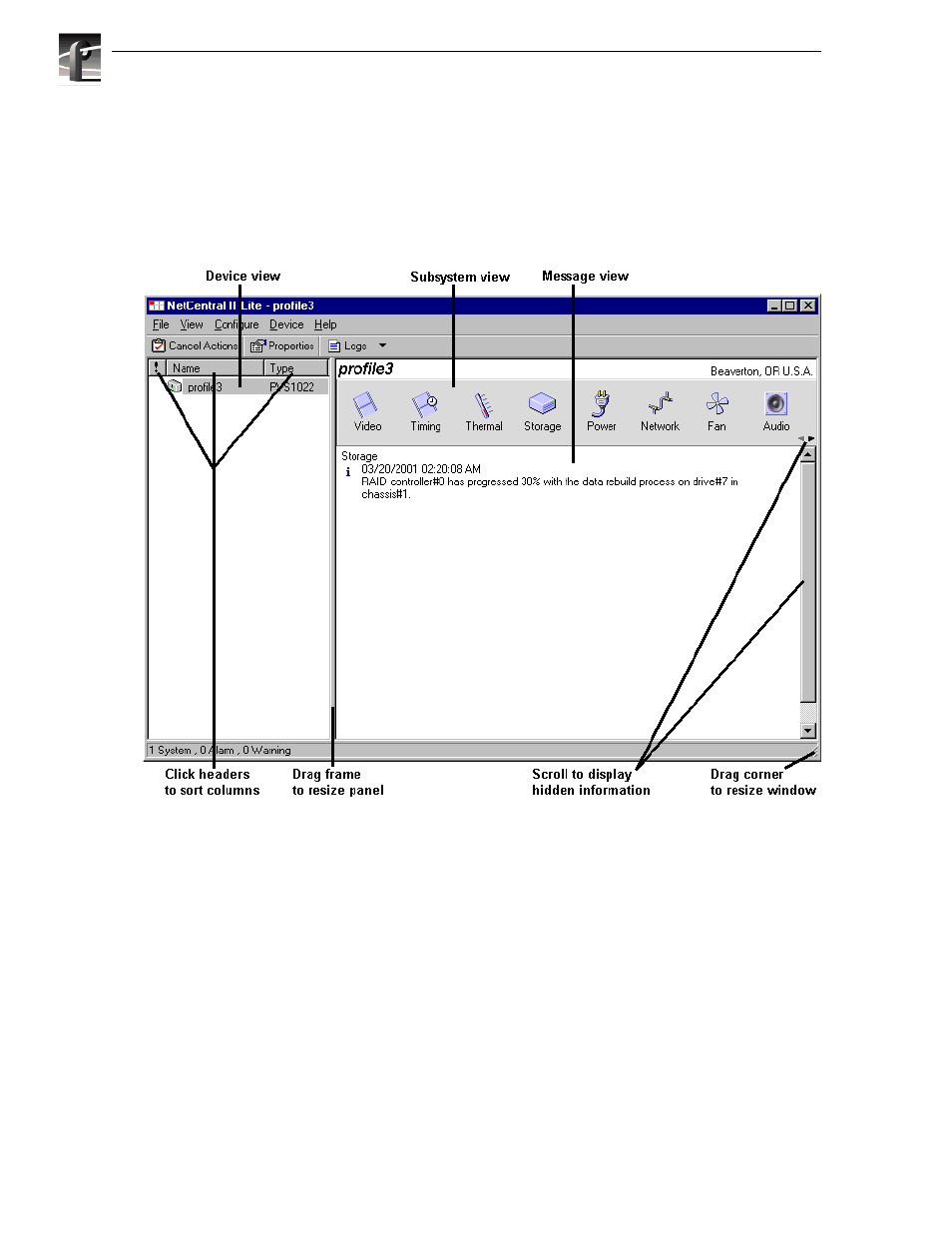

Similar to Windows Explorer, the information in the window is organized into
different views which can be manipulated as shown here:
Profile XP status is indicated within the different views as follows:
Device View
This panel lists the Profile XP Media Platform being monitored by
NetCentral Lite. A status indicator appears beside the icon for the device if the status
is not normal. Alarms and warnings are sorted to the top automatically. A right-click
in the device view opens the Device menu.
Subsystem view
This icon bar displays an icon for each subsystem of the media
platform. A status indicator appears on an icon if the status is not normal. Subsystems
indicating alarms or warnings are sorted to the left automatically.
Message view
This area displays text information about the Profile XP Media
Platform. The text explains the most recent status change and gives suggestions for
corrective action, if corrective action is necessary. A status indicator icon appears
beside the message. Alarms and warnings are sorted to the top automatically.
