Appendix A Diagnostic Tools
128 Profile XP Service Manual 23 July 2004
To view Thermal properties
1. Select the Thermal tab in the Properties window.
2. Select Fahrenheit or Centigrade units for temperature reporting.

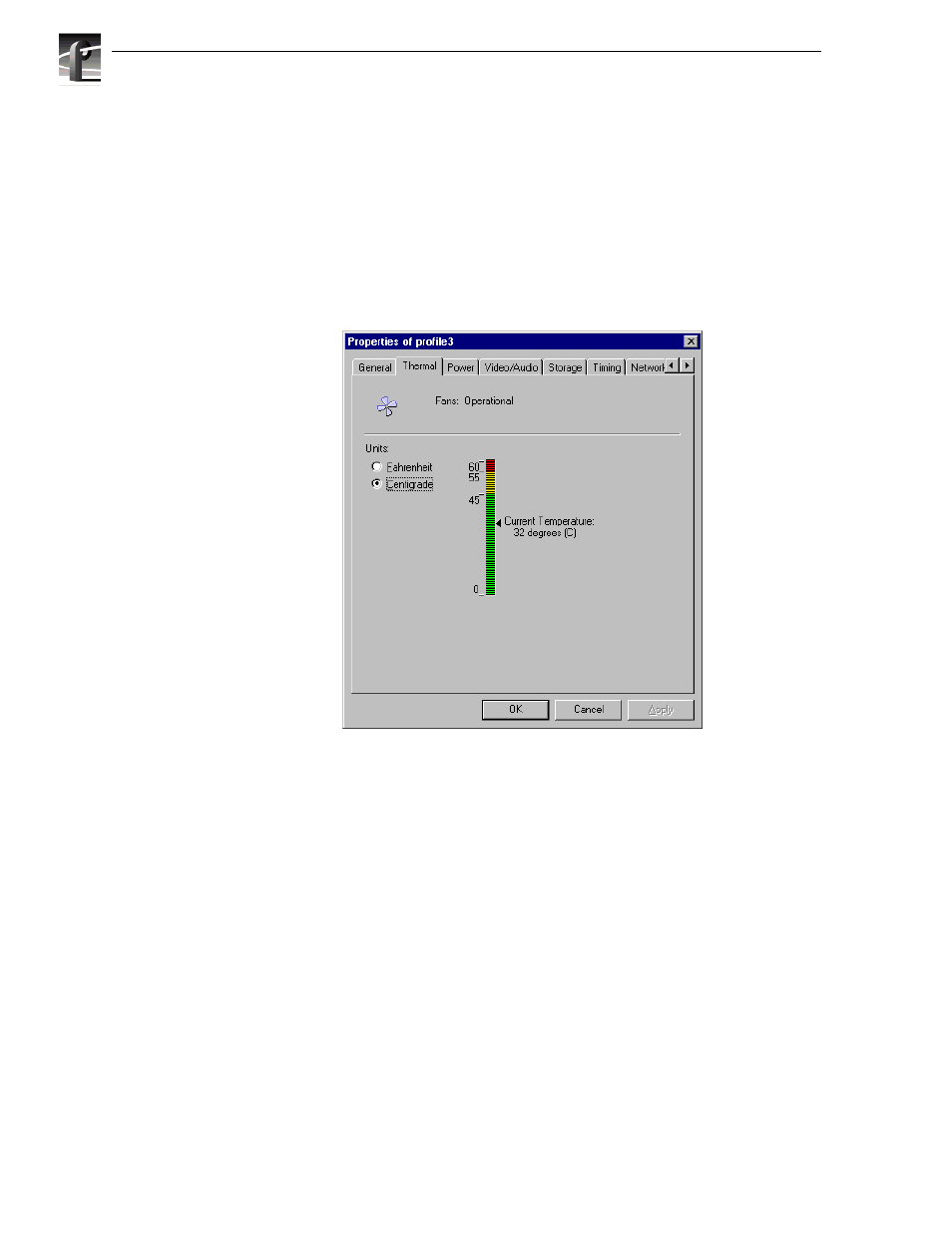

The Thermal properties panel shows you the current operating temperature of the
media platform. The green area on the thermometer shows the safe range of operating
temperatures, the yellow area shows the temperature range in which NetCentral Lite
sends a Warning message, and the red area shows the temperature range that generates
an Alarm message.
To view Storage properties
1. Select the Storage tab in the Properties window.
2. Click Details .
NOTE: To learn how to view PFR Series storage details, refer to “Monitoring PFR
500/600 Series storage with NetCentral” on page 62 and “Monitoring PFR 700
Series storage with NetCentral” on page 64. PFR Series storage details are not
available through the Profile XP device provider interface.
3. In the Show Status entry box, enter the number of the Fibre Channel RAID Chassis
or select a number from the pull down menu.
