Kayak HD — Installation and Service Manual 99
Button Assignment (Source to Button Mapping)
5. Press the number-name pair for the Input source you want to assign to
the button you just selected.

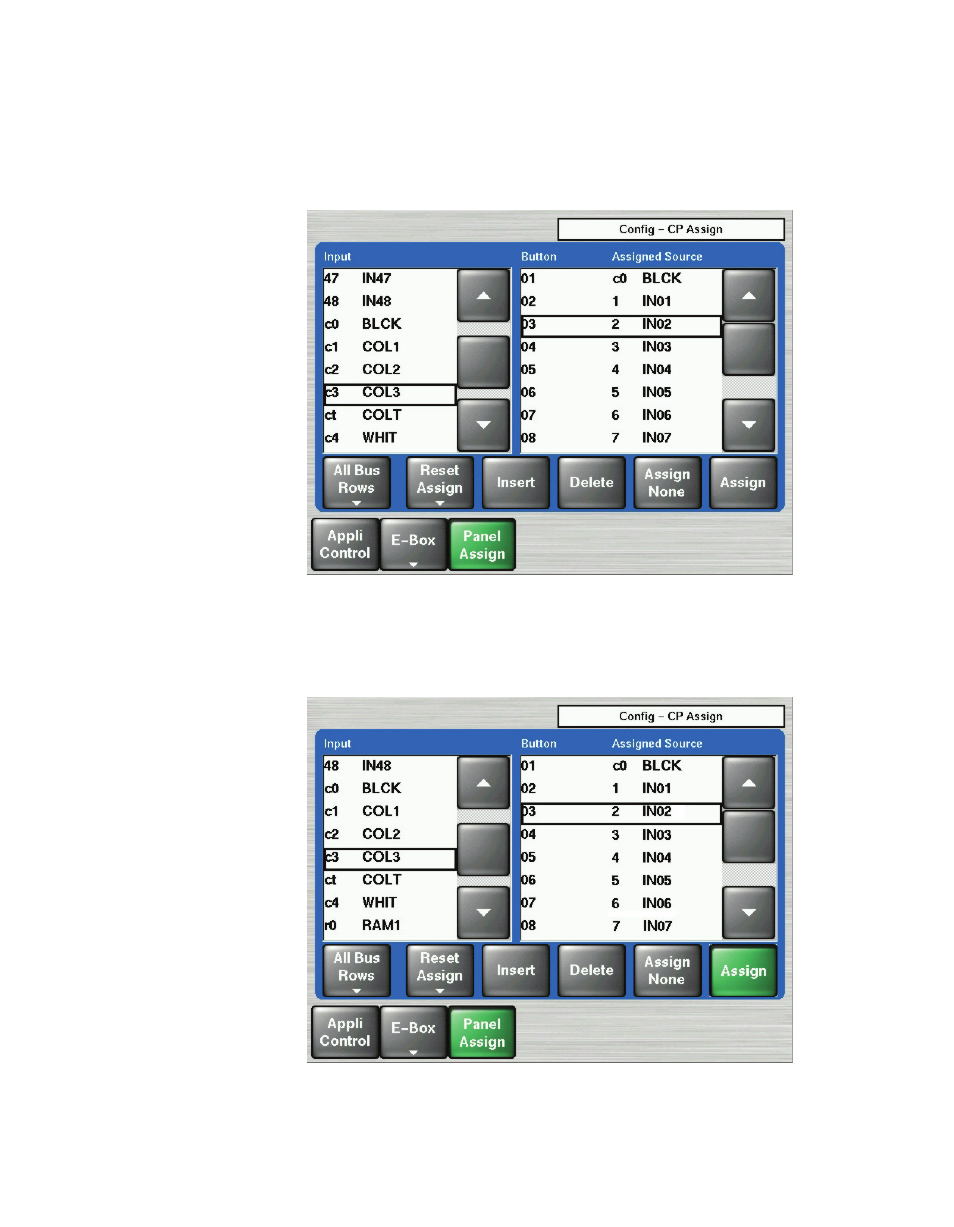

Figure 57. Input Selected for Assignment in Left-Hand Input Pane
6. At the bottom right of the Button pane press the Assign button to assign
the Input you selected to the Button you selected.
Figure 58. Assign Button at Bottom Right
8448_32_
r0
8448_30_
r0
